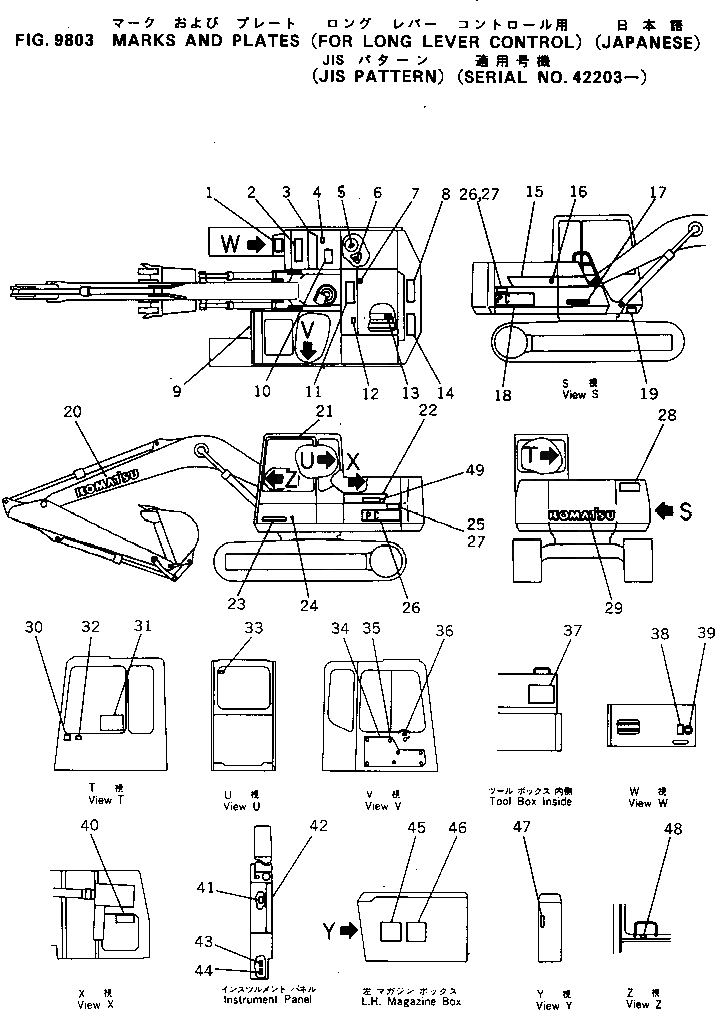

Запчасти Komatsu PC130-5 МАРКИРОВКА (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) (ЯПОН.) (JIS PATTERN №-)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-00-51170

SEAT,NONSKID

2

154-54-23260

SEAT,NONSKID

3

203-00-51280

PLATE, MARK,LINE

4

09652-01121

PLATE, CAUTION,FUEL

5

201-54-21940

PLATE, CAUTION,HYDRAULIC TANK CAP

6

09653-00100

PLATE, SAFETY,HYDRAULIC TANK CAP

7

09667-00100

PLATE, SAFETY,ENGINE COVER

8

154-54-23260

SEAT,NONSKID

9

20Y-00-11490

PLATE

10

203-00-51170

SEAT,NONSKID

11

154-54-23260

SEAT,NONSKID

12

09650-01104

PLATE, INSTRUCTION,RADIATOR

13

09668-00100

PLATE, SAFETY,RADIATOR CAP

14

154-54-23260

SEAT,NONSKID

15

203-00-51270

PLATE, MARK,LINE

16

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC OIL LEVEL

17

09690-C0315

PLATE, MARK,KOMATSU

18

203-00-51321

PLATE, MARK,PC130

18

203-00-51321

PLATE, MARK,PC130 (ESTRA)

19

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

19

04418-13060

SCREW

20

09690-B0500

PLATE, MARK,KOMATSU

21

20Y-00-11350

PLATE

22

203-00-51260

PLATE, MARK,LINE

23

09690-C0315

PLATE, MARK,KOMATSU

24

20Y-00-11350

PLATE

25

201-00-61690

PLATE, MARK,AVANCE (ESTRA)

26

203-00-51321

PLATE, MARK,PC130

26

203-00-51321

PLATE, MARK,PC130 (ESTRA)

27

20Y-00-11520

PLATE, MARK,AVANCE

28

203-00-51210

PLATE, CAUTION,KEEP OUT OF TURNING AREA

29

09690-C0710

PLATE, MARK,KOMATSU

30

09699-00100

PLATE, CAUTION,WINDOW WASHER

31

203-00-52310

PLATE, OPERATING

32

203-916-5130

PLATE, OPERATING,ISO PATTERN

33

205-00-63230

PLATE, CAUTION,AUTO LOCK

34

20Y-54-13473

COVER

35

20Y-54-14560

CLIP ASS'Y

36

205-00-71340

PLATE, OPERATING,DOOR LOCK

37

203-00-56111

CHART, OIL

38

201-00-61340

PLATE, OPERATING,LOCK

39

201-00-61380

PLATE, OPERATING,LOCK

40

09637-01661

PLATE, INSTRUCTION,AIR CLEANER (SINGLE ELEMENT)

40

09637-01161

PLATE, INSTRUCTION,AIR CLEANER (DOUBLE ELEMENT)

41

203-00-52260

PLATE, OPERATING,WINDOW WASHER

42

203-00-52220

PLATE

43

203-00-52230

PLATE, OPERATING,T.V.C. PROLIX

44

203-00-52240

PLATE, OPERATING,SWING PROLIX

45

203-00-56321

PLATE, DATA

46

203-916-5720

PLATE, OPERATING,MULTI PATTERN

47

09685-00002

PLATE, OPERATING,LOCK LEVER

48

203-00-52190

PLATE, CAUTION,FRONT WINDOW

49

20Y-00-13190

PLATE, MARK,SUPER LOW-NOISE (ESTRA)
