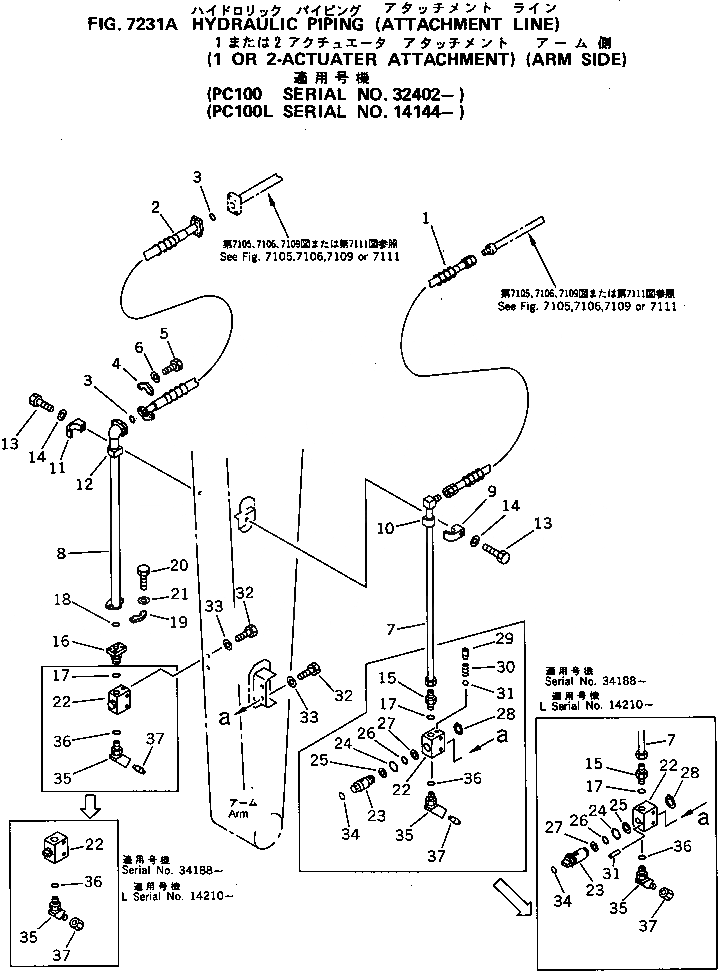

Запчасти Komatsu PC130-5 ГИДРОЛИНИЯ (НАВЕСНОЕ ОБОРУД-Е) ( ИЛИ -ACUTUATER НАВЕСН. ОБОРУД) (РУКОЯТЬ) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

07096-20514

HOSE

2

07097-21014

HOSE

3

07000-13032

O-RING

4

07371-31049

FLANGE,SPLIT

5

07372-21035

BOLT

6

01643-51032

WASHER

7

203-973-5762

TUBE

8

203-973-5771

TUBE

9

203-973-5780

CLAMP

10

203-62-43390

CUSHION

11

203-973-5790

CLAMP

12

203-973-4390

CUSHION

13

01010-51275

BOLT

13

01010-51270

BOLT

14

01643-31232

WASHER

15

202-973-6350

NIPPLE

16

203-973-5750

NIPPLE

17

07002-13334

O-RING

18

07000-13032

O-RING

19

07371-31049

FLANGE,SPLIT

20

07372-21035

BOLT

21

01643-51032

WASHER

|$22

203-973-5802

VALVE ASS'Y

|$23

203-973-5801

VALVE ASS'Y

22

203-973-3912

BODY

22

203-973-3911

BODY

23

203-973-3922

SPOOL

23

203-973-3921

SPOOL

24

202-973-6380

O-RING

24

07000-13032

O-RING

25

202-973-6930

RING,BACK-UP

25

07001-03032

RING,BACK-UP

26

07000-13025

O-RING

27

07001-03025

RING,BACK-UP

28

04064-03015

RING,SNAP

29

07043-00108

PLUG

30

236-10-12240

SPRING

31

04025-00412

PIN,SPRING

31

04260-00793

BALL

32

01010-51025

BOLT

33

01643-31032

WASHER

34

203-00-56640

PLATE, MARK

34

203-00-58110

PLATE, MARK

35

203-973-5731

ELBOW

35

203-973-5730

ELBOW

36

07002-13334

O-RING

37

202-973-6980

PLUG

37

07042-20617

PLUG
