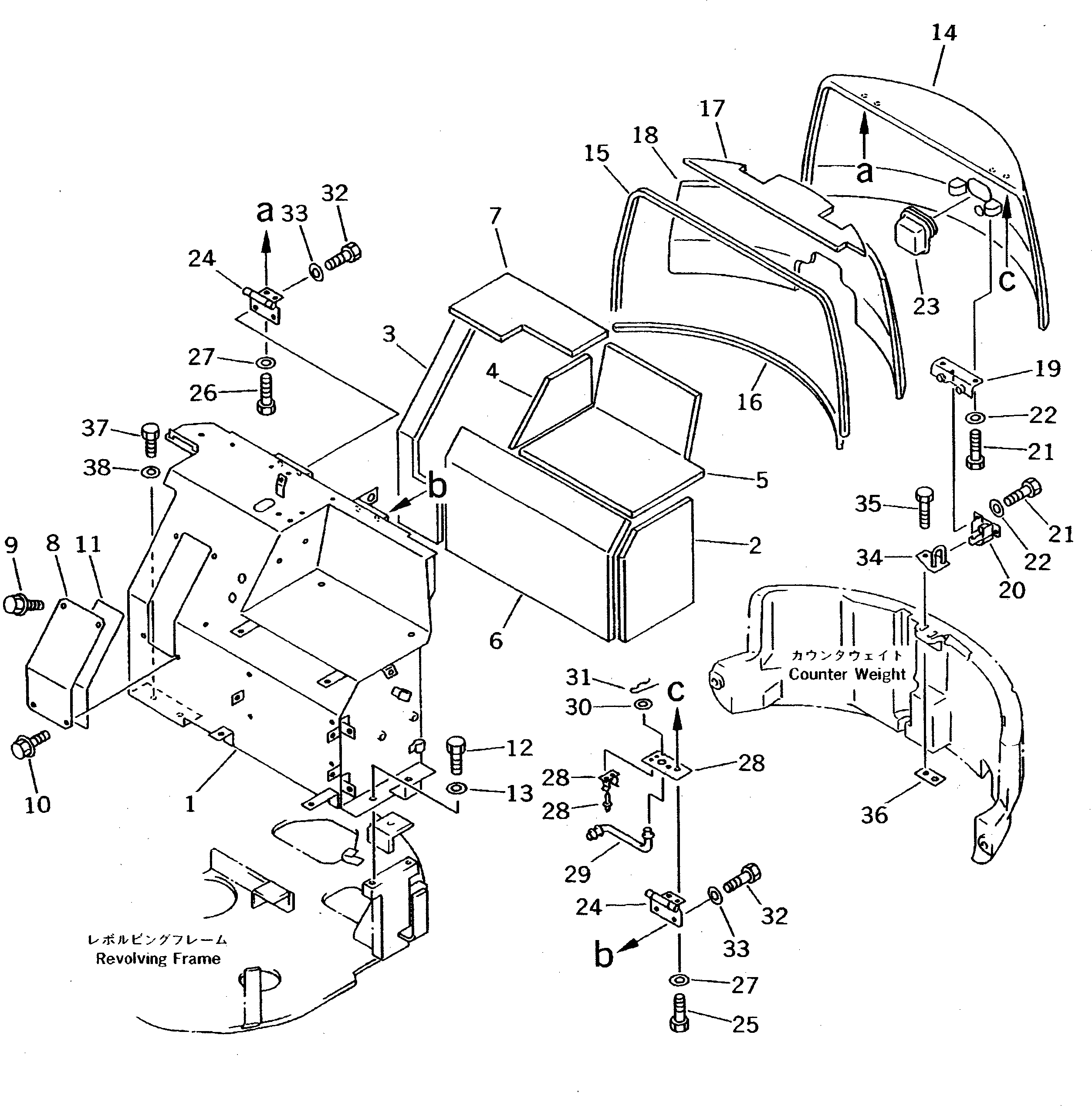

Запчасти Komatsu PC12UU-2 КАПОТ (/) ЧАСТИ КОРПУСА

|1

20C-54-21100

COVER ASS'Y

1

COVER

2

20C-54-21140

SHEET

3

20C-54-21150

SHEET

4

20C-54-21160

SHEET

5

20C-54-21170

SHEET

6

20C-54-21180

SHEET

7

20C-54-21190

SHEET

8

20C-54-21130

COVER

9

01435-00820

BOLT

10

01435-00825

BOLT

11

20C-54-21280

SHEET

12

01010-51225

BOLT

13

01643-31232

WASHER

|14

20C-54-21200

HOOD ASS'Y

14

HOOD

15

20C-54-21220

SEAL

16

20C-54-21230

SEAL

17

20C-54-21240

SHEET

18

20C-54-21250

SHEET

19

21U-54-21710

BRACKET

20

20U-54-21321

LOCK ASS'Y

21

01010-51020

BOLT

22

01643-31032

WASHER

23

21U-54-21260

CATCH

24

21U-54-21751

HINGE

25

01010-51025

BOLT

26

01010-51020

BOLT

27

01643-31032

WASHER

28

20C-54-21720

PLATE

|28

20B-54-12210

SPRING

|28

04411-00412

RIVET

29

20C-54-21740

BAR

30

01641-20812

WASHER

31

04052-10833

PIN,SNAP

32

01010-51025

BOLT

33

01643-31032

WASHER

34

21U-54-21731

BRACKET

35

01010-51040

BOLT

36

21U-54-21770

PLATE

37

01010-51225

BOLT

38

01643-31232

WASHER
