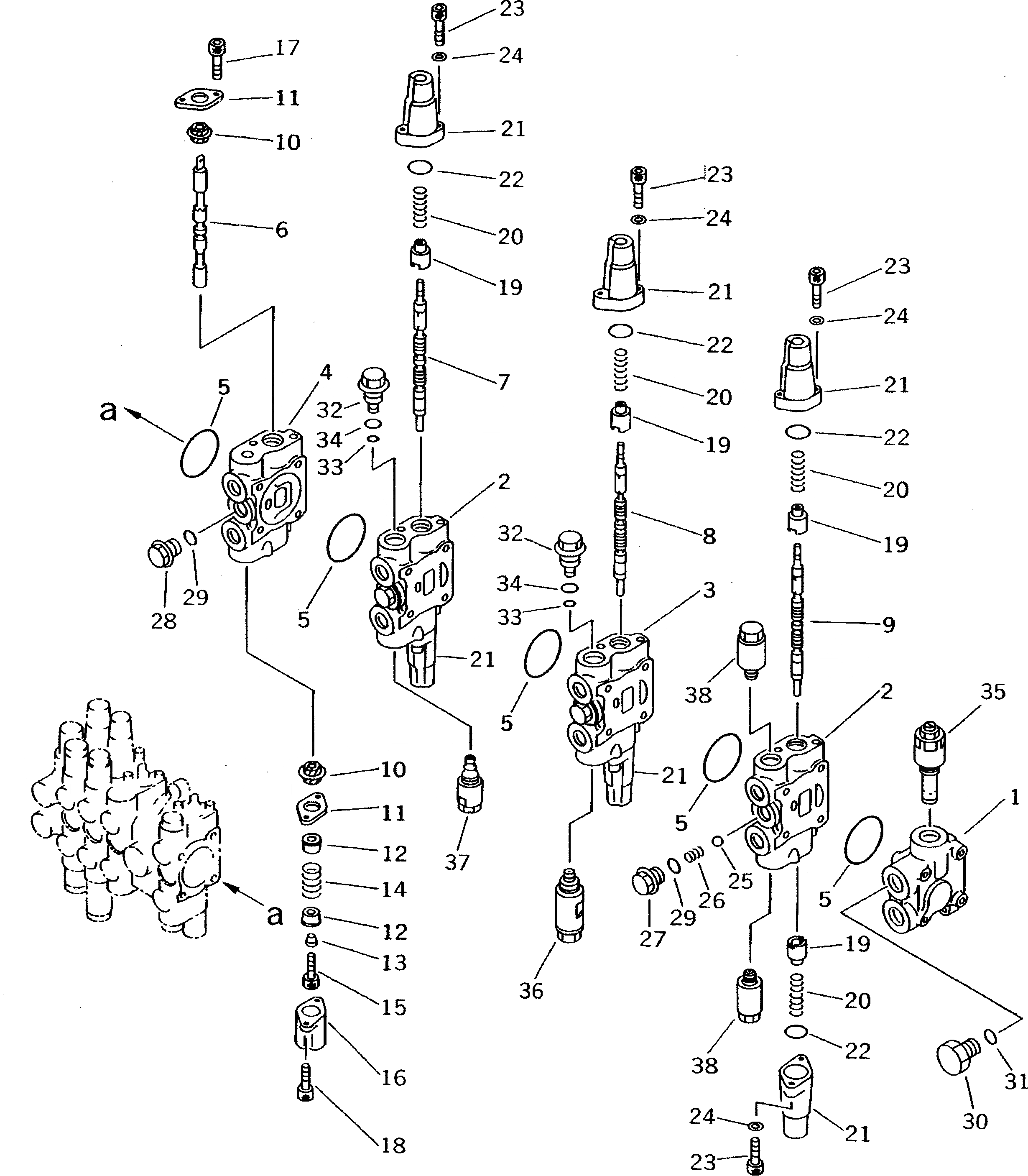

Запчасти Komatsu PC12UU-2 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (8-СЕКЦИОНН.) (/) (ВНУТР. ЧАСТИ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

709-38-12900

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

07000-12055

O-RING

6

SPOOL,TRAVEL¤ R.H.

7

SPOOL,BUCKET

8

SPOOL,BOOM

9

SPOOL,OFFSET

10

709-32-11530

SEAL,DUST

11

709-32-11540

PLATE

12

709-32-11550

RETAINER

13

709-32-11560

COLLAR

14

709-32-11580

SPRING

15

01252-30620

BOLT

16

709-32-11570

COVER

17

01252-30610

BOLT

18

01252-30616

BOLT

19

709-32-12840

RETAINER

20

709-32-13510

SPRING

21

709-32-12851

CASE

22

709-32-11760

O-RING

23

01252-30622

BOLT

24

01641-20608

WASHER

25

04260-01270

BALL

26

709-32-11820

SPRING

27

709-32-11810

PLUG

28

709-32-11930

PLUG

29

07002-11823

O-RING

30

07040-12012

PLUG

31

07002-02034

O-RING

32

709-32-11830

PLUG

33

709-32-11840

O-RING

34

07002-02034

O-RING

35

700-28-54000

VALVE ASS'Y,RELIEF

36

709-30-62301

VALVE ASS'Y,SUCTION AND SAFETY

37

709-30-65300

VALVE ASS'Y,SAFETY

38

709-30-61100

VALVE ASS'Y,SUCTION
