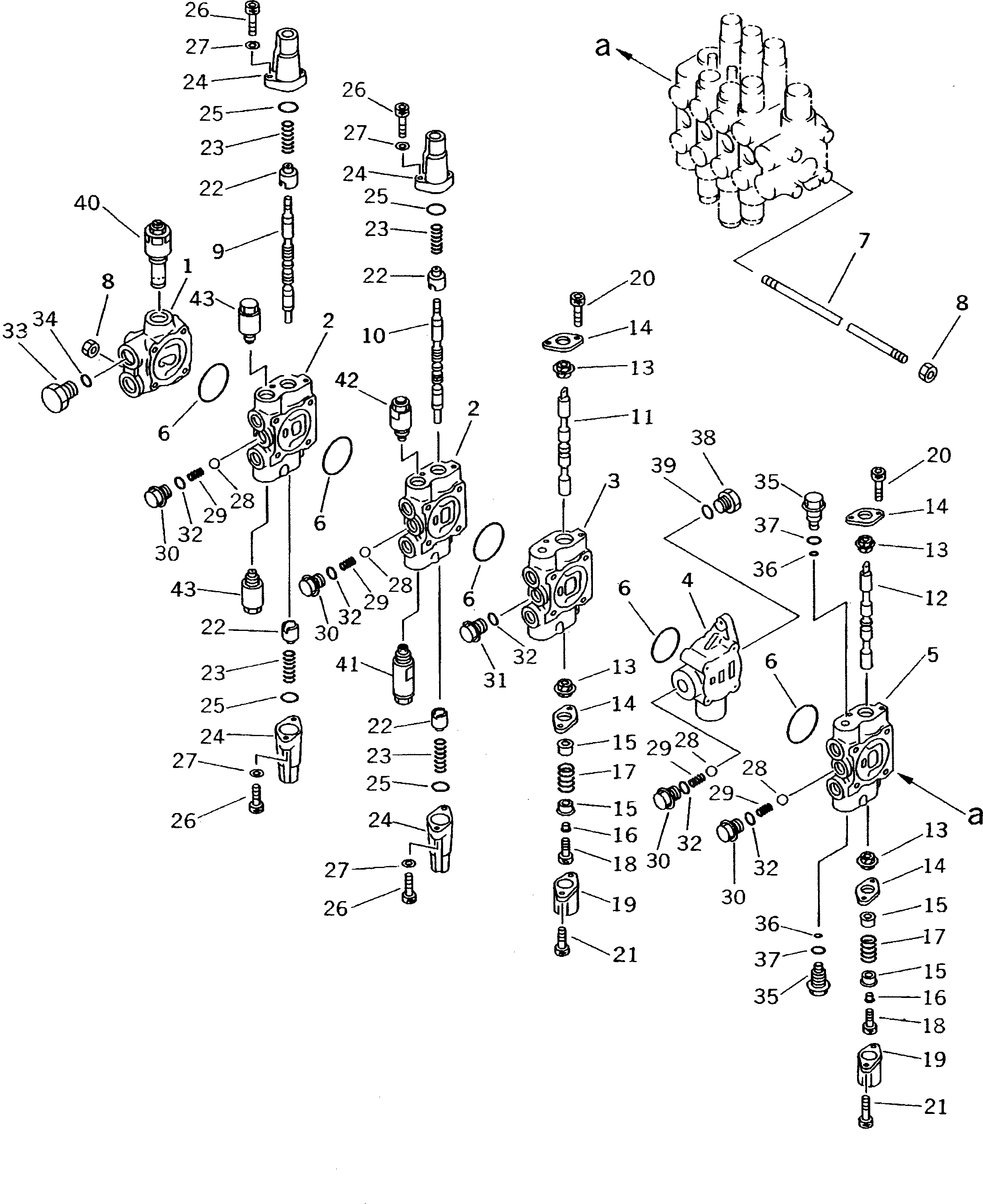

Запчасти Komatsu PC12UU-2 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (8-СЕКЦИОНН.) (/) (ВНУТР. ЧАСТИ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

709-38-12900

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK

6

07000-12055

O-RING

7

709-38-11510

STUD

8

01580-10806

NUT

9

SPOOL,SWING

10

SPOOL,ARM

11

SPOOL,TRAVEL¤ L.H.

12

SPOOL,BLADE

13

709-32-11530

SEAL,DUST

14

709-32-11540

PLATE

15

709-32-11550

RETAINER

16

709-32-11560

COLLAR

17

709-32-11580

SPRING

18

01252-30620

BOLT

19

709-32-11570

COVER

20

01252-30610

BOLT

21

01252-30616

BOLT

22

709-32-12840

RETAINER

23

709-32-13510

SPRING

24

709-32-12851

CASE

25

709-32-11760

O-RING

26

01252-30622

BOLT

27

01641-20608

WASHER

28

04260-01270

BALL

29

709-32-11820

SPRING

30

709-32-11810

PLUG

31

709-32-11930

PLUG

32

07002-11823

O-RING

33

07040-12012

PLUG

34

07002-02034

O-RING

35

709-32-11830

PLUG

36

709-32-11840

O-RING

37

07002-02034

O-RING

38

700-22-11370

PLUG

39

07002-02434

O-RING

40

700-28-54000

VALVE ASS'Y,RELIEF

41

709-30-62301

VALVE ASS'Y,SUCTION AND SAFETY

42

709-30-65300

VALVE ASS'Y,SAFETY

43

709-30-61100

VALVE ASS'Y,SUCTION
