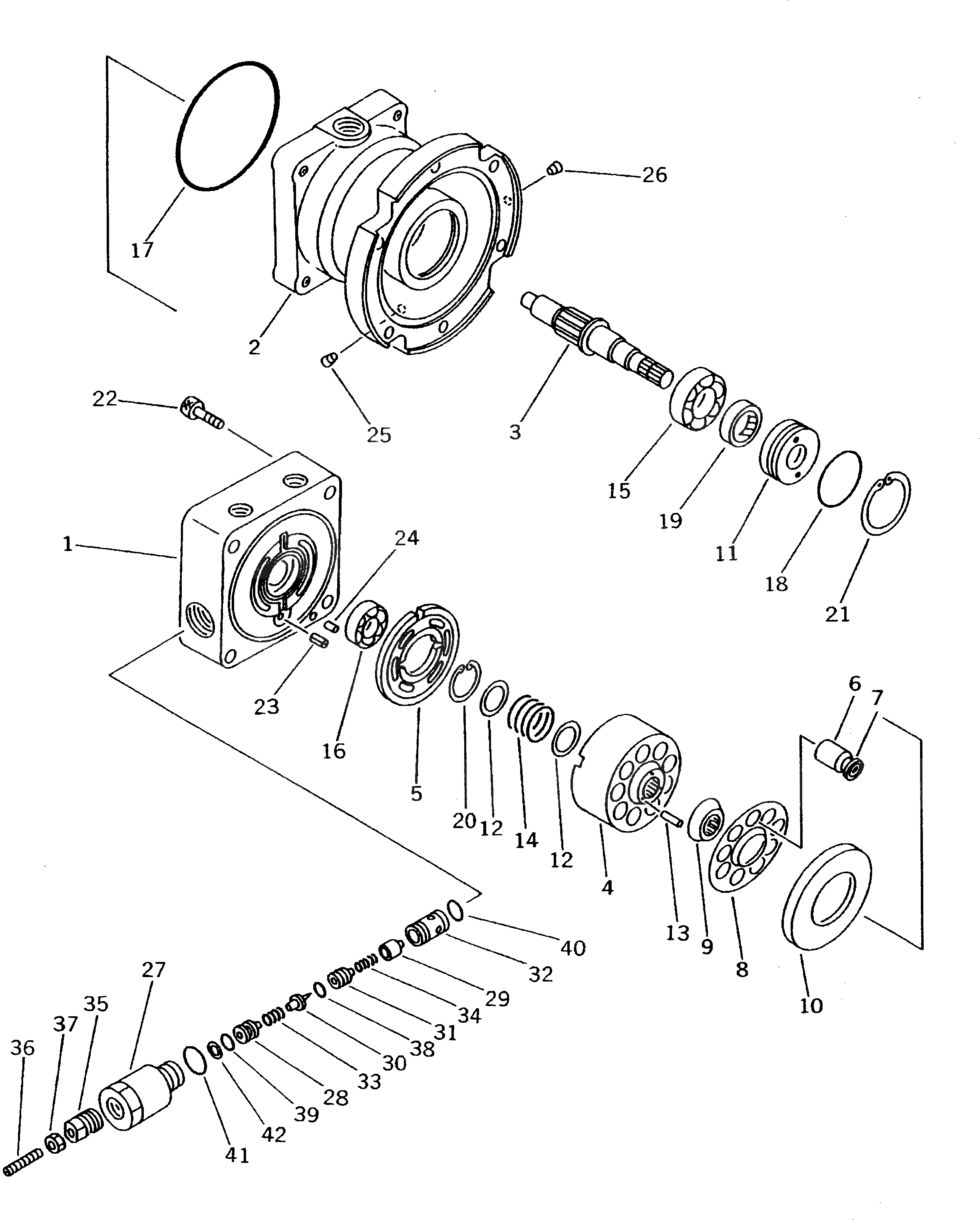

Запчасти Komatsu PC12UU-2 МОТОР ПОВОРОТА (/) (ВНУТР. ЧАСТИ)(№-999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

20C-60-26100

SWING MOTOR ASS'Y

|1

20C-60-26300

HYDRAULIC MOTOR A.

1

BODY

2

BODY

3

PINION,SHAFT

4

BARREL,CYLINDER

5

PLATE,VALVE

6

PISTON

7

SHOE

8

SHOE,HOLDER

9

BARREL,HOLDER

10

PLATE,THRUST

11

SEAL,HOLDER

12

RETAINER

13

PIN

14

SPRING

15

06000-06304

BEARING

16

06030-06201

BEARING

17

07000-12095

O-RING

18

20P-60-16910

O-RING

19

20P-60-16920

SEAL,OIL

20

04065-02812

RING,SNAP

21

04065-05220

RING,SNAP

22

01252-41045

BOLT

23

04025-00812

PIN

24

20W-60-12780

PIN

25

20W-60-25370

PLUG

26

20N-60-31650

PLUG

|27

20C-60-26400

RELIEF VALVE ASS'Y

27

RETAINER

28

GUIDE

29

POPPET

30

NEEDLE

31

SEAL

32

SLEEVE

33

SPRING

34

SPRING

35

RETAINER

36

BOLT

37

NUT

38

O-RING

39

O-RING

40

07000-12014

O-RING

41

20P-60-16930

O-RING

42

RING,BACK-UP
