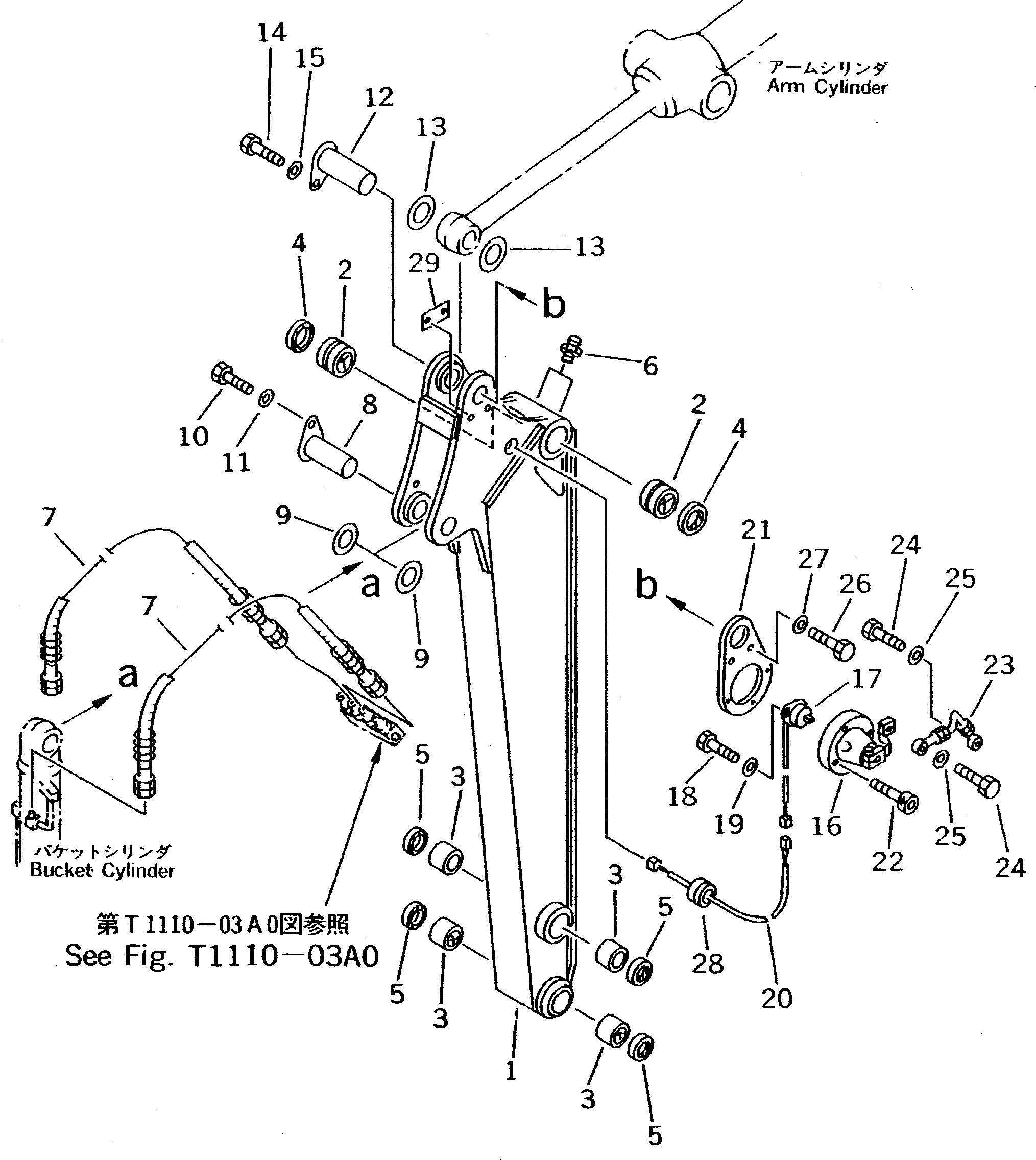

Запчасти Komatsu PC12UU-2 РУКОЯТЬ (РУКОЯТЬ И ПАЛЕЦ)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20C-70-21600

ARM ASS'Y

1

ARM

2

07144-10304

BUSHING

3

07144-10303

BUSHING

4

07145-00035

SEAL,DUST

5

07145-00030

SEAL,DUST

6

07020-00675

FITTING,GREASE

7

20C-62-23150

HOSE

8

20C-70-21630

PIN

9

20N-70-11280

SPACER¤ 1.0MM

10

01010-51020

BOLT

11

01643-31032

WASHER

12

20C-70-21620

PIN

13

20N-70-41270

SPACER¤ 1.0MM

14

01010-51020

BOLT

15

01643-31032

WASHER

16

20C-70-21900

SENSOR ASS'Y,ARM

17

7861-92-4180

POTENTIOMETER

18

01010-A0620

BOLT

19

01643-30623

WASHER

20

20C-06-21160

WIRING HARNESS

21

20C-70-21910

PLATE

22

21U-70-21960

BOLT

23

21U-70-21950

ROD ASS'Y

24

01010-A1030

BOLT

25

01643-31032

WASHER

26

01010-A1030

BOLT

27

01643-31032

WASHER

28

21U-06-21570

GROMMET

29

21U-70-21470

SPACER
