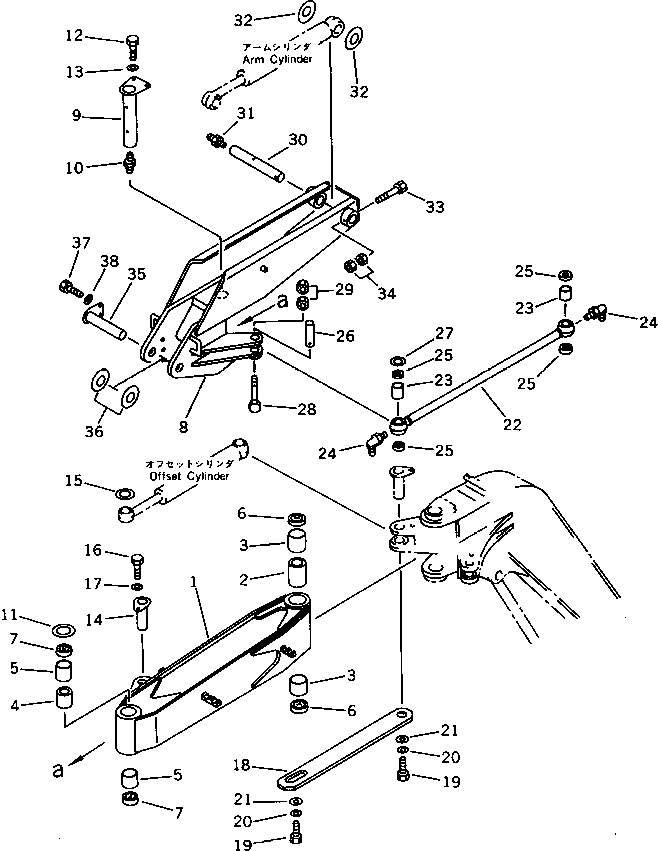

Запчасти Komatsu PC12UU-1 СТРЕЛА (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20C-70-11200

BOOM ASS'Y,2ND

1

BOOM

2

20C-70-11280

COLLAR

3

20C-70-11260

BUSHING

4

20C-70-11290

COLLAR

5

20C-70-11270

BUSHING

6

07145-00050

SEAL,DUST

7

07145-00045

SEAL,DUST

8

20C-70-11310

BOOM,3RD

9

20C-70-11350

PIN

10

07020-00000

FITTING,GREASE

11

21U-70-11730

SPACER¤ 1.0MM

12

01010-51230

BOLT

13

01643-31232

WASHER

14

21U-70-11250

PIN

15

20N-70-41270

SPACER¤ 1.0MM

16

01010-51020

BOLT

17

01643-31032

WASHER

18

20C-70-11510

LOCK,PLATE

19

01010-51225

BOLT

20

01643-31232

WASHER

21

FF7814-01150

WASHER

|22

20C-70-11400

ROD ASS'Y

22

20C-70-11410

ROD

23

07144-10302

BUSHING

24

07020-00900

FITTING,GREASE

25

07145-00030

SEAL

26

20C-70-11450

PIN

27

20N-70-11280

SPACER¤ 1.0MM

28

01010-51070

BOLT

29

01580-11008

NUT

30

20C-66-11360

PIN

31

07020-00000

FITTING,GREASE

32

20N-70-41270

SPACER¤ 1.0MM

33

01010-51285

BOLT

34

01580-11210

NUT

35

20N-70-41620

PIN

36

20N-70-41270

SPACER¤ 1.0MM

37

01010-51225

BOLT

38

01643-31232

WASHER
