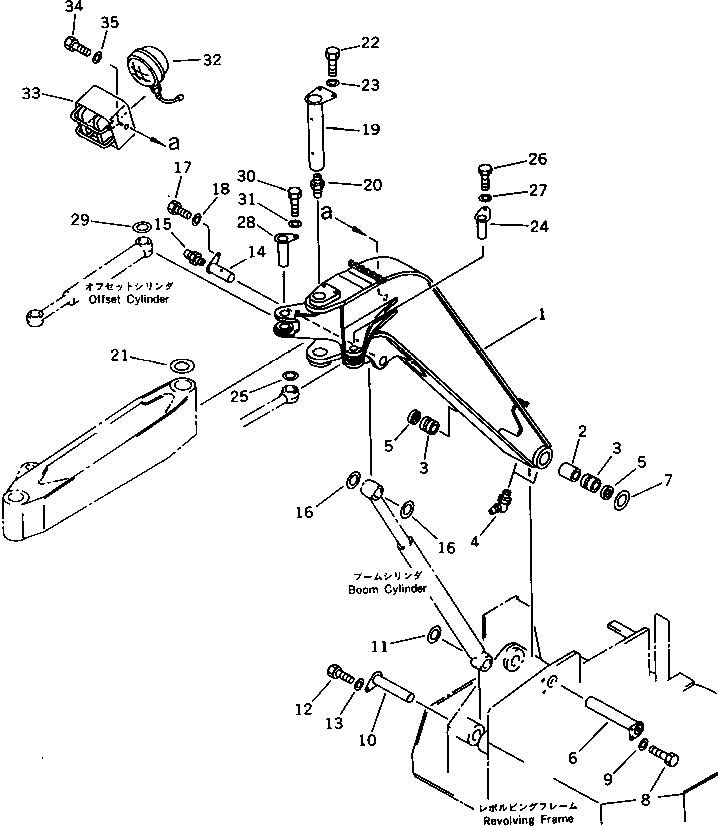

Запчасти Komatsu PC12UU-1 СТРЕЛА (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20C-70-11100

BOOM ASS'Y,1ST

1

BOOM

2

20C-70-11170

COLLAR

3

20C-70-11140

BUSHING

4

07020-00675

FITTING,GREASE

5

07145-00040

SEAL

6

20C-70-11150

PIN

7

21U-70-11740

SPACER¤ 1.0MM

8

01010-51225

BOLT

9

01643-31232

WASHER

10

20C-70-11180

PIN

11

20N-70-41270

SPACER¤ 1.0MM

12

01010-51220

BOLT

13

01643-31232

WASHER

14

20N-70-41550

PIN

15

07020-00000

FITTING,GREASE

16

20N-70-41270

SPACER¤ 1.0MM

17

01010-51020

BOLT

18

01643-31032

WASHER

19

20C-70-11160

PIN

20

07020-00000

FITTING,GREASE

21

21U-70-11720

SPACER¤ 1.0MM

22

01010-51230

BOLT

23

01643-31232

WASHER

24

21U-70-11450

PIN

25

20N-70-11280

SPACER¤ 1.0MM

26

01010-51020

BOLT

27

01643-31032

WASHER

28

21U-70-11250

PIN

29

20N-70-41270

SPACER¤ 1.0MM

30

01010-51020

BOLT

31

01643-31032

WASHER

32

08125-01200

LAMP ASS'Y

|32

08107-01260

BULB¤ 60W

|32

08125-00006

LENS

33

20N-06-49550

COVER

34

01010-51225

BOLT

35

01643-31232

WASHER
