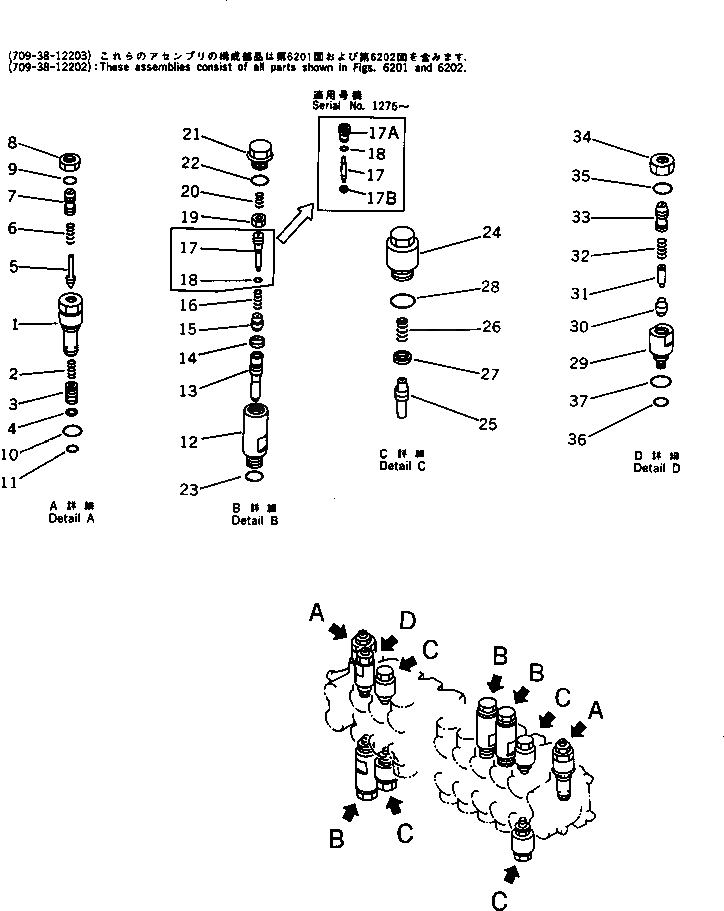

Запчасти Komatsu PC12UU-1 8-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-38-12203

VALVE ASS'Y

|1

709-38-12202

VALVE ASS'Y

|1

700-22-51001

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

700-20-51430

SPRING

3

VALVE

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|12

709-30-62301

VALVE ASS'Y,SUCTION AND SAFETY

|12

709-30-62300

VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

SLEEVE

13

VALVE

|13

VALVE

14

SEAL

15

POPPET

|15

POPPET

16

SPRING

17

PISTON

|17

PISTON

17A

SCREW

17B

SEAL

18

O-RING

19

NUT

20

700-20-62170

SPRING

21

709-30-62150

PLUG

22

07002-12034

O-RING

23

07002-02034

O-RING

|24

709-30-61100

VALVE ASS'Y,SUCTION

24

709-30-61110

SLEEVE

25

VALVE

26

700-20-62170

SPRING

27

SEAL

28

07002-02034

O-RING

|29

709-30-65300

VALVE ASS'Y,SAFETY

29

SLEEVE

30

POPPET

31

PISTON

32

SPRING

33

SCREW

34

NUT

35

O-RING

36

709-32-11840

O-RING

37

07002-02034

O-RING
