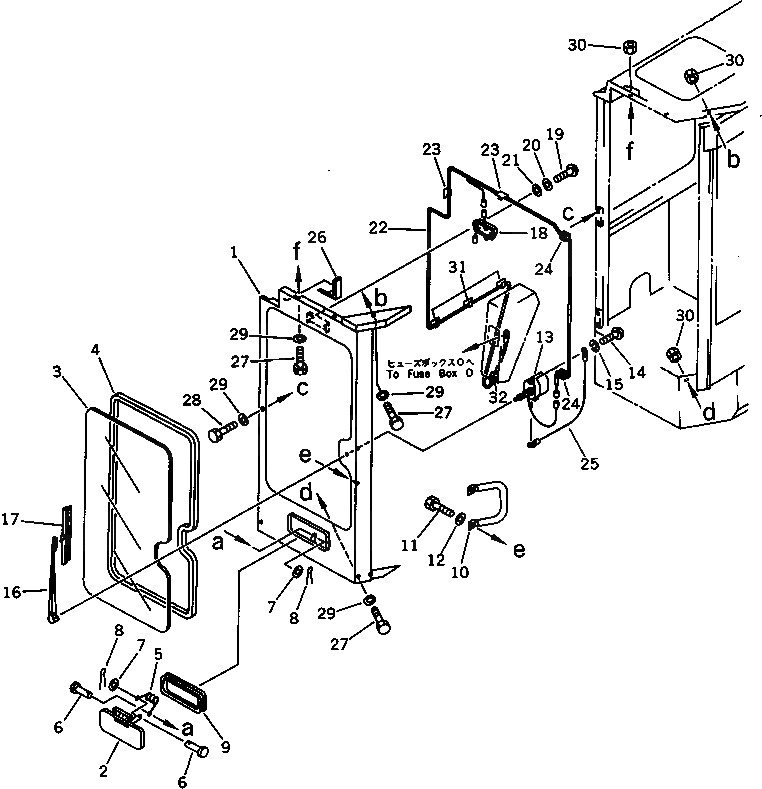

Запчасти Komatsu PC12UU-1 КАБИНА (/) (ПЕРЕДН. ПАНЕЛЬ И ДВОРНИКИ) ЧАСТИ КОРПУСА

|1

20C-54-16105

PANEL ASS'Y,FRONT

|1

20C-54-16100

PANEL ASS'Y,FRONT

1

20C-54-16115

PANEL,FRONT

|1

20C-54-16110

PANEL,FRONT

2

20C-54-16145

COVER (WELDED)

|2

20C-54-16140

COVER (WELDED)

3

20C-54-16120

GLASS

4

20C-54-16130

STRIP,WEATHER

5

232-855-1320

SPRING

6

04205-10614

PIN

7

01643-30623

WASHER

8

04050-11610

PIN,COTTER

9

20C-54-16150

SEAL

10

20C-54-16175

PIPE

|10

20C-54-16170

PIPE

11

01010-51020

BOLT

12

01643-31032

WASHER

13

20C-54-16180

MOTOR,WIPER

14

01220-40516

SCREW

15

01601-20513

WASHER,SPRING

16

232-950-5420

ARM,WIPER

17

232-950-5430

BLADE,WIPER

18

08141-01200

LAMP,ROOM

|18

08116-01210

BULB¤ 10W

19

01220-40416

SCREW

20

01601-20410

WASHER,SPRING

21

01641-20405

WASHER

22

20C-54-16910

WIRE ASS'Y

23

21W-54-14690

CLIP

24

08037-01008

GROMMET

25

20C-54-16920

WIRE

26

20C-54-16640

SEAT

27

01010-51025

BOLT

28

01010-51020

BOLT

29

01643-31032

WASHER

30

01580-11008

NUT

31

21W-54-14690

CLIP

32

08037-01008

GROMMET
