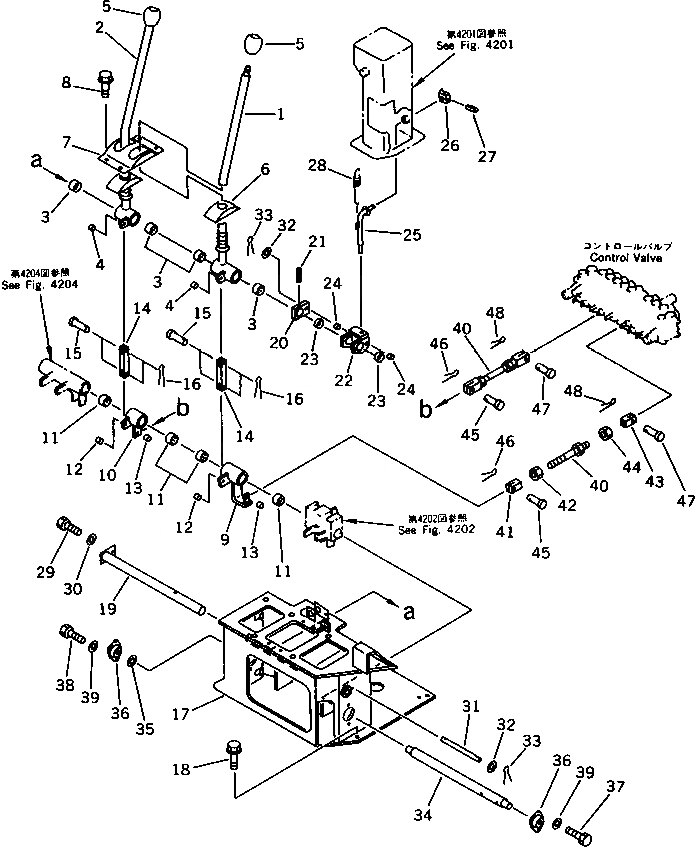

Запчасти Komatsu PC12UU-1 РЫЧАГ УПРАВЛ-Я ХОДОМ СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20C-43-11420

LEVER,L.H.

2

20C-43-11410

LEVER,R.H.

3

195-61-34140

BEARING

4

06600-00805

BUSHING

5

203-43-41910

KNOB

6

20S-43-11230

COVER

7

21U-54-11470

COVER

8

01435-00816

BOLT

9

20C-43-11440

LEVER

10

20C-43-11430

LEVER

11

195-61-34140

BEARING

12

06600-00805

BUSHING

13

06600-00805

BUSHING

14

20N-43-42591

YOKE

15

04205-10822

PIN

16

04050-12015

PIN,COTTER

17

20C-43-11110

BRACKET

18

01435-01020

BOLT

19

20N-43-42311

SHAFT

20

20N-43-42350

BLOCK

21

04025-00640

PIN,SPRING

22

20C-43-11340

BRACKET

23

20N-43-42370

BUSHING

24

20S-43-31560

BUSHING

25

20C-43-11250

LEVER

26

20S-43-31220

BOSS

27

04025-00520

PIN,SPRING

28

10E-43-12650

SPRING

29

01010-50820

BOLT

30

01643-30823

WASHER

31

20N-43-42380

PIN

32

01641-21016

WASHER

33

04050-13020

PIN,COTTER

34

20N-43-42411

SHAFT

35

01640-22032

WASHER

36

20N-43-41290

BEARING

37

01010-50820

BOLT

38

01010-50816

BOLT

39

01643-30823

WASHER

40

04248-30814

ROD

41

04221-20844

YOKE

42

01508-20805

NUT

43

20C-43-11320

YOKE,L.H. THREAD

44

01508-10806

NUT¤ L.H. THREAD,L.H. THREAD

45

04205-10822

PIN

46

04050-12015

PIN,COTTER

47

04205-10520

PIN

48

04050-11208

PIN,COTTER
