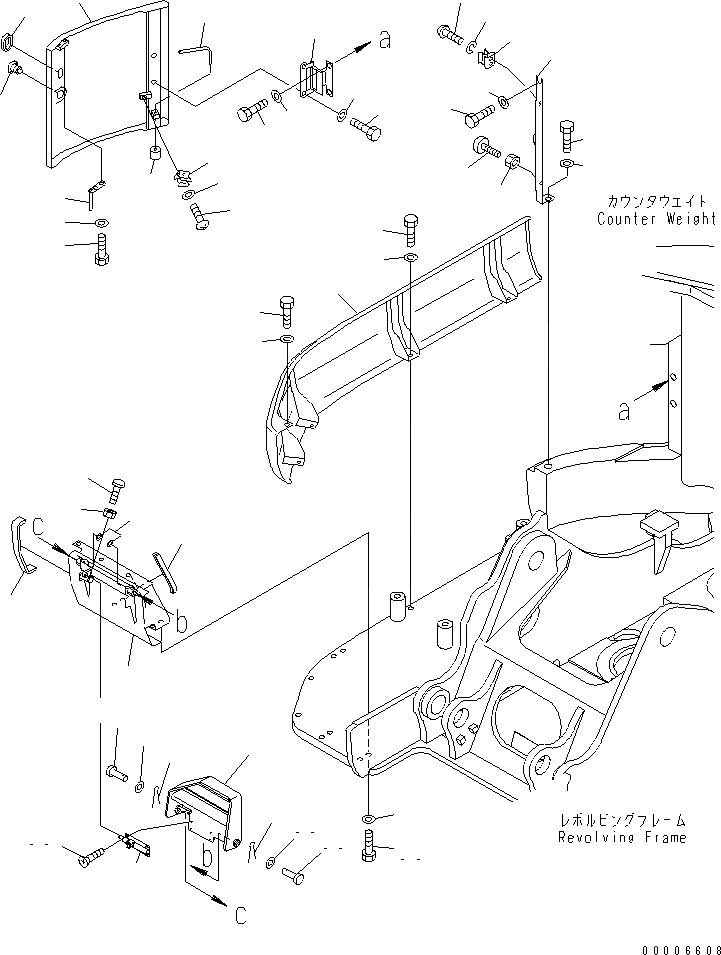

Запчасти Komatsu PC128UU-2 БОКОВ. КРЫШКА ПРАВ. (CONTER ВЕС COVER) (BLUE) ЧАСТИ КОРПУСА

1

22B-54-11831NW

COVER (BLUE)

2

205-60-71220

LOCK ASS'Y

3

120-06-24110

GROMMET

4

22B-54-19970

PLATE

5

01010-81020

BOLT

6

01643-31032

WASHER

7

20R-54-11460

SPRING

8

01235-40516

SCREW

9

01601-20513

WASHER

10

22B-54-12340

BAR

11

22B-54-12330

CUSHION

12

22B-54-11841

HINGE

13

01010-81225

BOLT

14

01643-31232

WASHER

15

01010-81230

BOLT

16

01643-31232

WASHER

17

22B-54-11861NW

BRACKET (BLUE)

18

20Y-54-11611

STOPPER

19

01580-11008

NUT

20

20R-54-11460

SPRING

21

01235-40516

SCREW

22

01601-20513

WASHER

23

01010-81225

BOLT

23A

01643-31232

WASHER

24

01010-81225

BOLT

25

175-54-34170

WASHER

|26

21Y-54-21401NW

COVER ASS'Y,R.H.

|26

21Y-54-21400NW

COVER ASS'Y,R.H.

26

21Y-54-21422

COVER

|26

21Y-54-21421

COVER

|26

21Y-54-21420

COVER

27

22B-54-11990

SEAL

28

22B-54-12720

SEAL

29

20Y-54-11611

STOPPER

30

01580-11008

NUT

31

21Y-54-21390

STEP

32

21Y-54-21430

LOCK

33

01236-40512

SCREW

34

21Y-54-21410

SPACER

35

04205-11250

PIN

36

01640-21223

WASHER

37

04050-13022

PIN

38

01010-81245

BOLT

39

01643-31232

WASHER

40

22B-54-11761NW

COVER (BLUE)

41

01010-81225

BOLT

42

01010-81245

BOLT

43

01643-31232

WASHER
