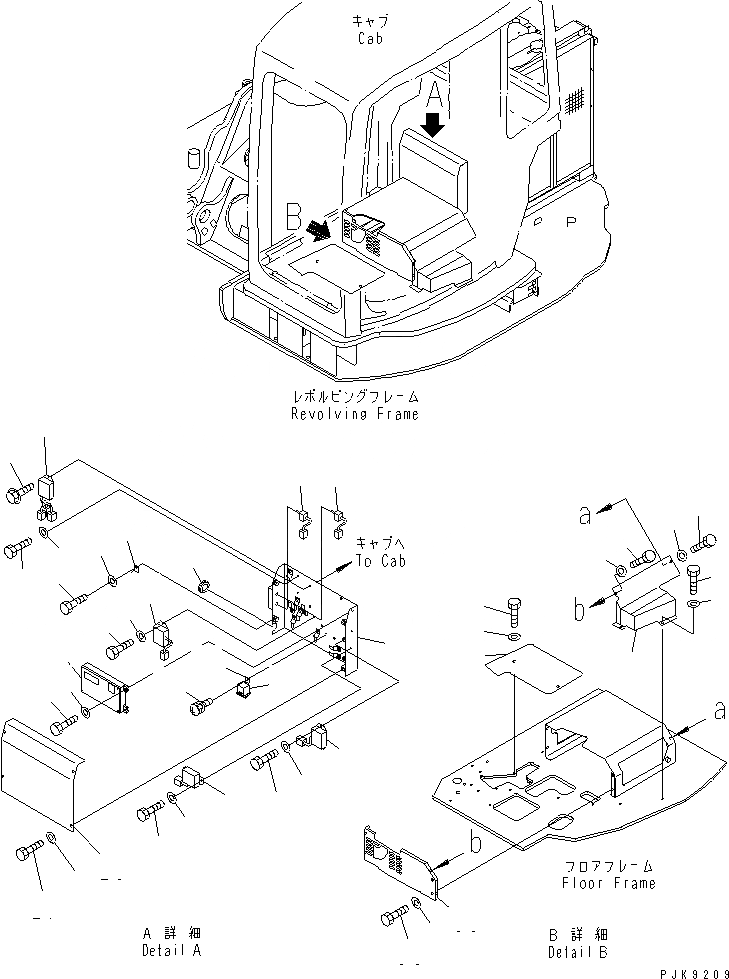

Запчасти Komatsu PC128UU-2 ПОКРЫТИЕ ПОЛА КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

21Y-54-21130

COVER

2

01010-81020

BOLT

3

01643-31032

WASHER

4

21Y-54-21111

COVER

5

01010-81020

BOLT

6

01643-31032

WASHER

7

7824-69-6000

CONTROLLER

8

01010-80825

BOLT

9

01643-30823

WASHER

10

21W-06-21712

CONTROLLER ASS'Y,DECEL

11

01435-00812

BOLT

12

20Y-06-17220

RESISTOR

13

01010-80820

BOLT

14

01643-30823

WASHER

15

7824-66-2400

RESISTOR

16

01010-80820

BOLT

17

01643-30823

WASHER

18

7824-66-6400

RESISTOR

19

01010-80855

BOLT

20

01643-30823

WASHER

21

20Y-06-15160

SWITCH

22

21Y-06-21161

WIRING HARNESS

|22

21Y-06-21160

WIRING HARNESS

|22

203-06-41570

SWITCH

23

569-06-61960

RELAY

24

287-06-16420

BRACKET

25

01023-10610

SCREW

26

21Y-54-21121

COVER

27

01010-D1020

BOLT

28

01643-71032

WASHER

29

04434-53412

CLIP

30

01010-81220

BOLT

31

01643-31232

WASHER

32

23S-06-14350

GROMMET

33

22U-54-25131

COVER

34

01010-D0820

BOLT

35

01643-70823

WASHER

36

01010-D1020

BOLT

37

01643-71032

WASHER

38

22U-54-13522

COVER

39

01010-D0816

BOLT

40

01643-70823

WASHER
