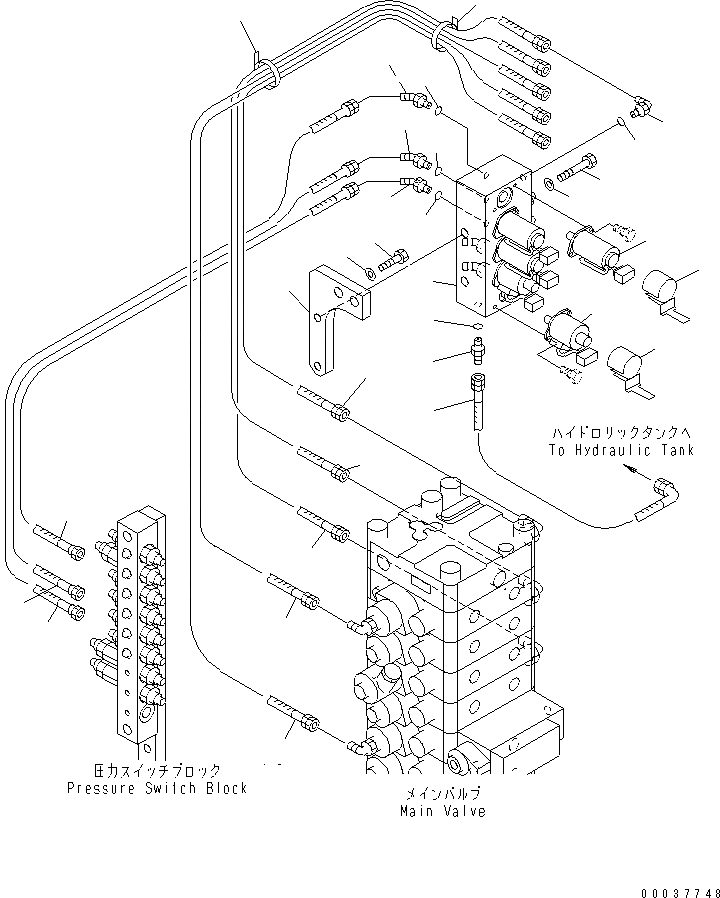

Запчасти Komatsu PC128UU-2 РАСПРЕДЕЛИТ. КЛАПАН (КЛАПАН БЕЗОПАСНОСТИ ЛИНИЯ) ГИДРАВЛИКА

1

21Y-60-21101

VALVE ASS'Y

2

21W-60-32120

SOLENOID ASS'Y

3

21Y-60-21110

SOLENOID ASS'Y

4

22G-60-11140

CLIP

5

21Y-62-21310

BRACKET

6

01011-81205

BOLT

7

01643-31232

WASHER

8

01010-81240

BOLT

9

01643-31232

WASHER

10

20Y-62-23461

ELBOW

11

21Y-62-21330

ELBOW

12

07002-11423

O-RING

13

07235-10210

ELBOW

14

07230-10210

UNION

15

07002-11423

O-RING

16

21Y-62-21510

HOSE, 450MM,WHITE-PINK

16

21U-62-34770

BAND, WHITE

17

21Y-62-21520

HOSE, 500MM,ORANGE-GREEN

17

21U-62-34740

BAND, ORANGE

17

21U-62-34730

BAND, GREEN

18

21Y-62-21530

HOSE, 600MM,ORANGE-BLACK

18

21U-62-34740

BAND, ORANGE

18

21U-62-34720

BAND, BLACK

19

21Y-62-21540

HOSE, 900MM,ORANGE-YELLOW

19

21U-62-34740

BAND, ORANGE

19

21U-62-34710

BAND, YELLOW

20

21Y-62-21550

HOSE, 1000MM,GREEN-PINK

20

21U-62-34730

BAND, GREEN

21

20Y-62-22592

HOSE, 900MM,BROWN-GREEN

21

21U-62-34780

BAND, BROWN

21

21U-62-34730

BAND, GREEN

22

20Y-62-22592

HOSE, 900MM,BROWN-BLACK

22

21U-62-34780

BAND, BROWN

22

21U-62-34720

BAND, BLACK

23

20Y-62-23852

HOSE, 950MM,BROWN-YELLOW

23

21U-62-34780

BAND, BROWN

23

21U-62-34710

BAND, YELLOW

24

08034-00536

BAND

25

07185-002A4

HOSE
