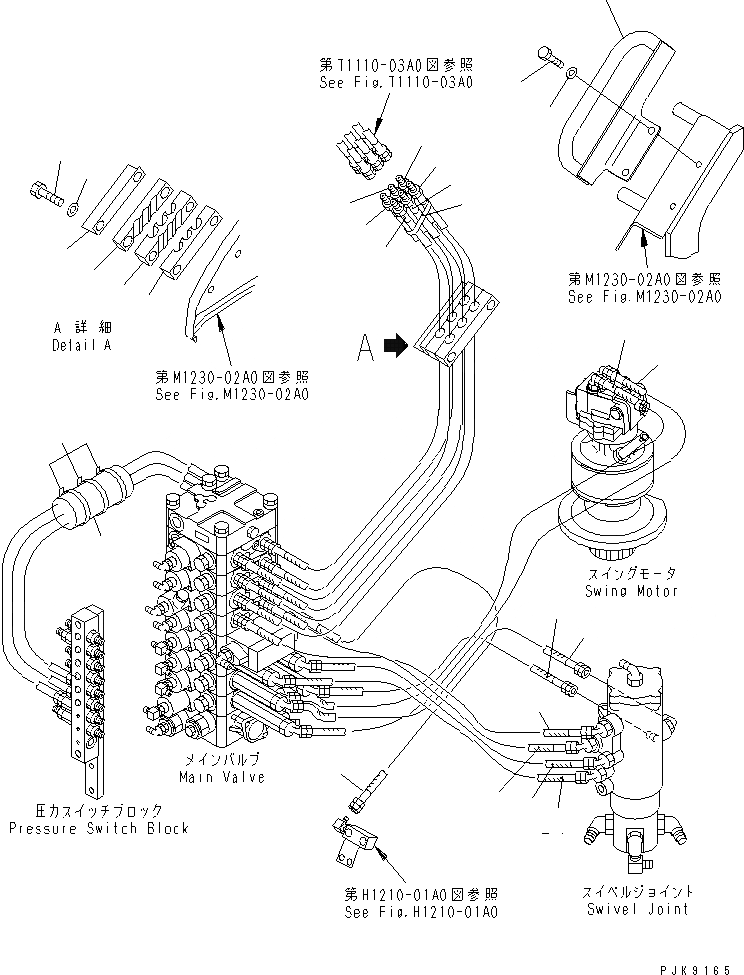

Запчасти Komatsu PC128UU-2 РУКОЯТЬ¤ КОВШ И OFFSET ЛИНИЯ (ШЛАНГИ) ГИДРАВЛИКА

1

21Y-62-21211

HOSE, 2270MM,ORANGE

1

21U-62-34740

BAND, ORANGE

2

21Y-62-21221

HOSE, 2230MM,GREEN

2

21U-62-34730

BAND, GREEN

3

21Y-62-21231

HOSE, 2070MM,RED

3

21U-62-34760

BAND, RED

4

21Y-62-21241

HOSE, 2100MM,BLUE

4

21U-62-34750

BAND, BLUE

5

21Y-62-21251

HOSE, 1940MM,GREEN-PINK

5

21U-62-34730

BAND, GREEN

6

21Y-62-21261

HOSE, 1940MM,WHITE-PINK

6

21U-62-34770

BAND, WHITE

7

21Y-62-21271

CUSHION

8

21Y-62-21281

CUSHION

9

21Y-62-21291

CUSHION

10

22B-62-14211

CLAMP

11

01010-81235

BOLT

12

01643-31232

WASHER

13

08034-20834

BAND

14

22B-62-11320

PLATE

15

08034-20536

BAND

16

21Y-62-21491

BRACKET

17

01010-81225

BOLT

18

01643-31232

WASHER

19

22B-62-12231

HOSE, 970MM,BROWN-YELLOW

19

22B-62-12230

HOSE, 950MM,BROWN-YELLOW

20

22B-62-12241

HOSE, 950MM,ORANGE-YELLOW

20

22B-62-12240

HOSE, 930MM,ORANGE-YELLOW

21

22B-62-12251

HOSE, 1450MM,BROWN

21

22B-62-12250

HOSE, 1200MM,BROWN

22

22B-62-12261

HOSE, 1450MM,WHITE

22

22B-62-12260

HOSE, 1300MM,WHITE

23

22B-62-12270

HOSE, 800MM,BLACK

24

22B-62-12610

HOSE, 880MM,BLUE-BLACK

25

22B-62-12620

HOSE, 850MM,BLUE-GREEN

26

22B-62-12630

HOSE, 970MM,RED-BLACK

27

22B-62-12640

HOSE, 920MM,BLUE-YELLOW
