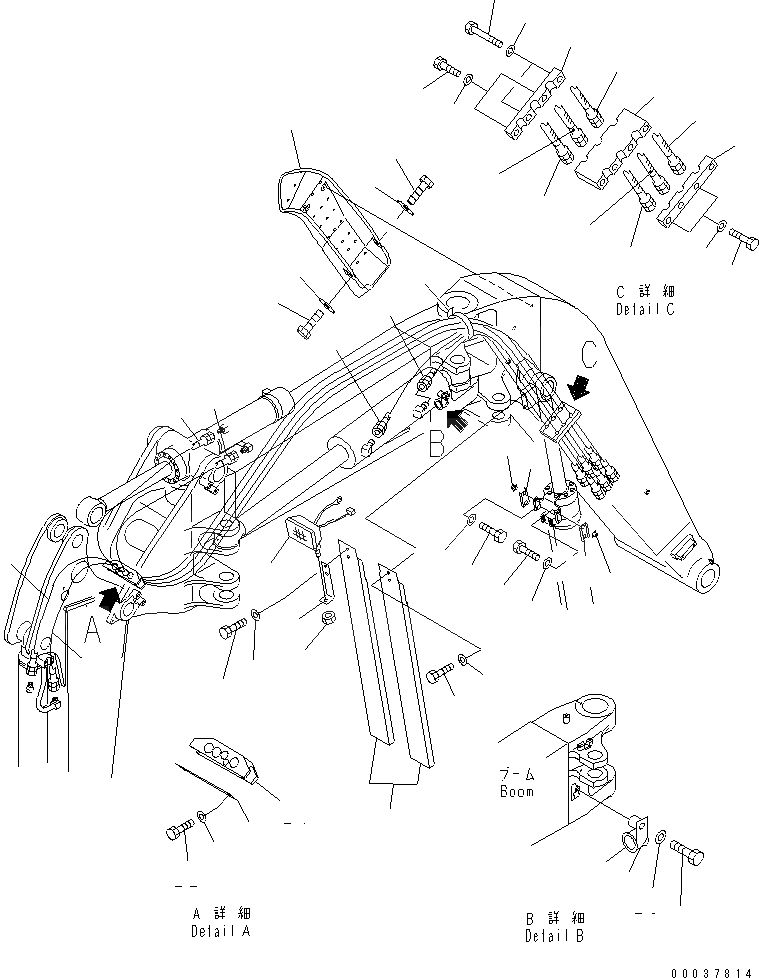

Запчасти Komatsu PC128UU-2 СТРЕЛА (ГИДРАВЛ ЛИНИЯ И РАБОЧ. ОСВЕЩЕНИЕ) (YELНИЗ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

21Y-62-21910

HOSE

2

21Y-62-21920

HOSE

3

21Y-62-21930

HOSE

4

21Y-62-21940

HOSE

5

21Y-62-21950

HOSE

6

21Y-62-21960

HOSE

7

21Y-70-21290

COVER

8

01010-81020

BOLT

9

103-54-21160

COLLAR

10

21Y-70-14271NK

CLAMP

10

21Y-70-14271

CLAMP

11

21Y-70-14281NK

CLAMP

11

21Y-70-14281

CLAMP

12

21Y-70-14291NK

CLAMP

12

21Y-70-14291

CLAMP

13

01011-81010

BOLT

14

01010-81030

BOLT

15

01643-31032

WASHER

16

01643-31032

WASHER

17

07095-00421

CUSHION

18

07094-00417

CLAMP

19

01010-81240

BOLT

20

01643-31232

WASHER

21

427-03-10350NK

PLATE

21

427-03-10350

PLATE

22

01010-81235

BOLT

23

01643-31232

WASHER

24

21Y-70-14331

CUSHION

25

08034-20834

BAND

26

20Y-06-25310

WORKING LAMP ASS'Y

26

20Y-06-21480

WORKING LAMP ASS'Y

27

21Y-70-14551NK

BRACKET

27

21Y-70-14550NK

BRACKET

28

21W-70-21270NK

COVER

29

01010-81030

BOLT

30

01643-31032

WASHER

31

01010-81035

BOLT

32

01643-31032

WASHER

33

20T-70-71630

PAD

34

20T-70-71640

COLLAR

35

01010-80816

BOLT

36

01643-30823

WASHER
