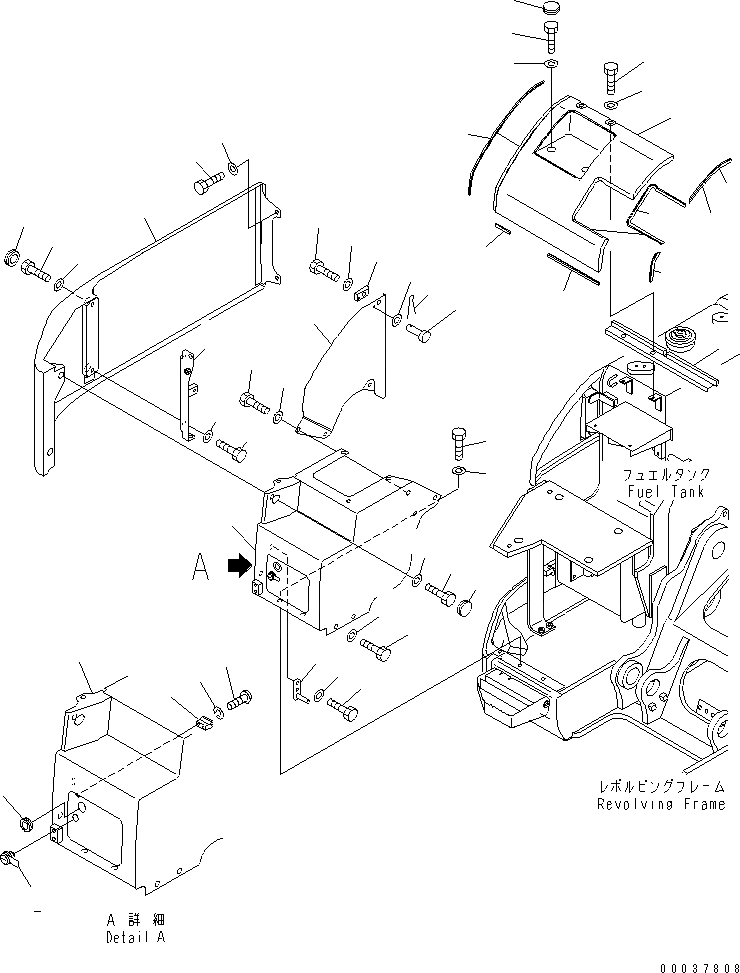

Запчасти Komatsu PC128UU-2 ПЕРЕДН. КРЫШКА(БАК КРЫШКАНАРУЖН.) (YELНИЗ.) ЧАСТИ КОРПУСА

1

22B-54-12113NK

COVER

1

22B-54-12112NK

COVER

1

22B-54-12111NK

COVER

2

205-60-71220

LOCK ASS'Y

3

22B-54-12291

BRACKET

4

01010-80620

BOLT

5

01643-30623

WASHER

6

20R-54-11460

SPRING

7

01235-40516

SCREW

8

01601-20513

WASHER

9

08037-02512

GROMMET

10

01010-81225

BOLT

11

01643-31232

WASHER

12

01010-81230

BOLT

13

01643-31232

WASHER

14

01010-81235

BOLT

15

01643-31232

WASHER

16

09415-03614

CAP

|$26

22B-54-12570NK

COVER ASS'Y (YELLOW)

17

COVER

18

22B-54-12580

PLATE

19

04205-10828

PIN

20

04050-12015

PIN

21

01640-20816

WASHER

22

01010-81225

BOLT

23

01643-31232

WASHER

24

01010-81250

BOLT

25

01643-31232

WASHER

26

22B-54-12131NK

COVER

27

01010-81225

BOLT

28

01643-31232

WASHER

29

01010-81235

BOLT

30

01643-31232

WASHER

31

09415-02512

CAP

32

21Y-54-21381SG

BRACKET

33

01010-81225

BOLT

34

01643-31232

WASHER

|$50

21Y-54-21220YN

COVER A'SSY

35

COVER

36

22B-54-12820

SEAL

37

22B-54-12830

SEAL

38

22B-54-12840

SEAL

39

22B-54-12850

SEAL

40

21Y-54-21260

SEAL

41

21Y-54-21280

SEAL

|$58

21Y-54-21340

PLATE

42

PLATE

42

21Y-54-21360

SEAL

42

21Y-54-21370

SEAL

43

01010-81230

BOLT

44

01643-31232

WASHER

45

09415-02512

CAP
