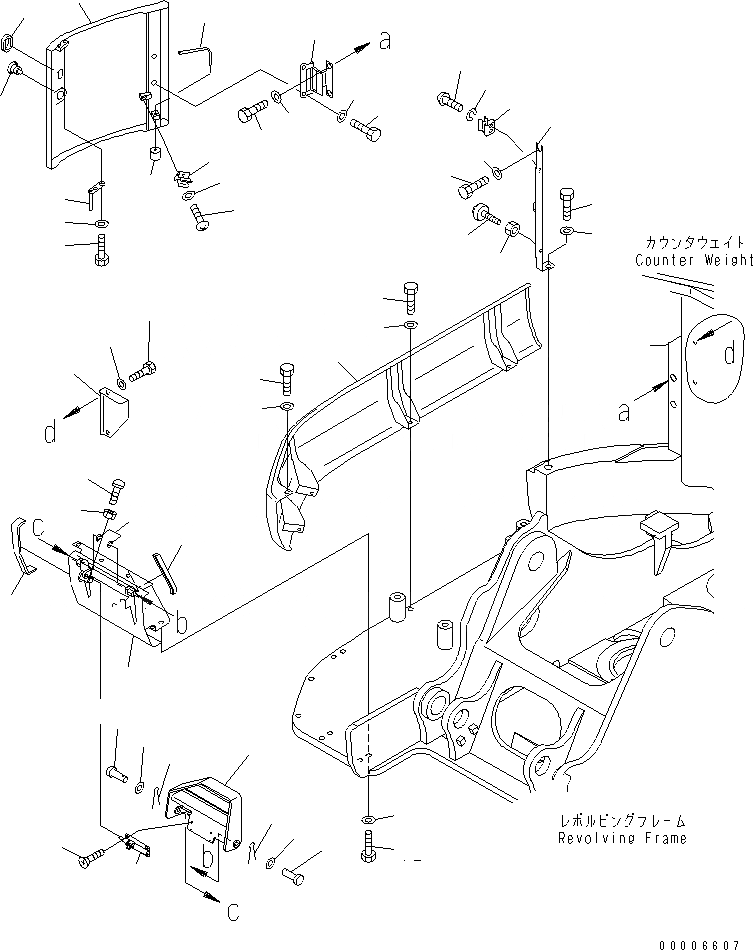

Запчасти Komatsu PC128UU-2 БОКОВ. КРЫШКА ПРАВ. (КРЫШКА ПРОТИВОВЕСА) (YELНИЗ.) ЧАСТИ КОРПУСА

1

22A-54-11120NK

COVER (YELLOW),R.H.

2

205-60-71220

LOCK ASS'Y

3

120-06-24110

GROMMET

4

22B-54-19970

PLATE

5

01010-81020

BOLT

6

01643-31032

WASHER

7

20R-54-11460

SPRING

8

01235-40516

SCREW

9

01601-20513

WASHER

10

22B-54-12340

BAR

11

22B-54-12330

CUSHION

12

22B-54-11841

HINGE

13

01010-81225

BOLT

14

01643-31232

WASHER

15

01010-81230

BOLT

16

01643-31232

WASHER

17

22A-54-11130NK

BRACKET (YELLOW)

18

20Y-54-11611

STOPPER

19

01580-11008

NUT

20

20R-54-11460

SPRING

21

01235-40516

SCREW

22

01601-20513

WASHER

23

01010-81225

BOLT

24

01643-31232

WASHER

25

01010-81225

BOLT

26

175-54-34170

WASHER

27

22A-54-11140YN

COVER

28

01010-81225

BOLT

29

01643-31232

WASHER

|$38

21Y-54-21600NK

COVER ASS'Y,R.H.

30

21Y-54-21421

COVER

30

21Y-54-21420

COVER

31

22B-54-12990

SEAL

32

22B-54-12720

SEAL

33

20Y-54-11611

STOPPER

34

01580-11008

NUT

35

21Y-54-21390

STEP

36

21Y-54-21430

LOCK

37

01236-40512

SCREW

38

21Y-54-21410

SPACER

39

04205-11250

PIN

40

01640-21223

WASHER

41

04050-13022

PIN

42

01010-81245

BOLT

43

01643-31232

WASHER

44

22B-54-11761NK

COVER (YELLOW)

45

01010-81225

BOLT

46

01643-31232

WASHER

47

01010-81245

BOLT

48

01643-31232

WASHER
