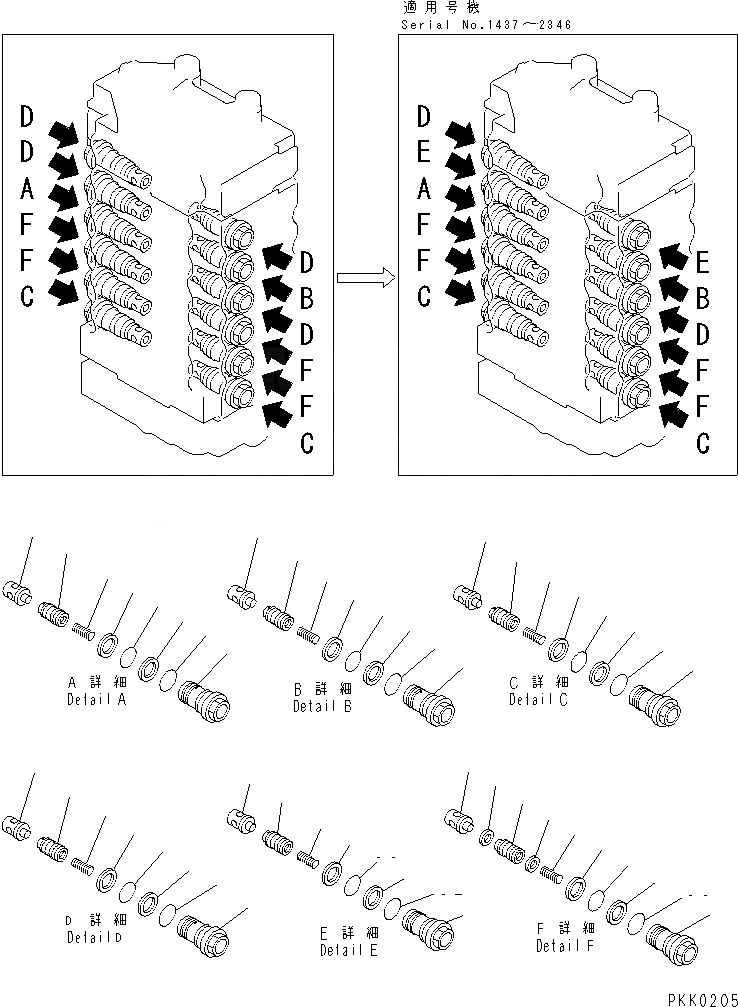

Запчасти Komatsu PC128UU-1 ОСНОВН. КЛАПАН (/) (-АКТУАТОР)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-37-16102

VALVE ASS'Y

|1

723-37-16100

VALVE ASS'Y

1

723-36-41110

VALVE

2

723-36-41121

VALVE

|3

723-36-42100

VALVE ASS'Y

3

PISTON SUB ASS'Y

4

SLEEVE

5

SPRING

6

700-80-61260

O-RING

7

700-80-61430

RING

8

07002-13034

O-RING

|9

723-36-41100

VALVE ASS'Y

9

PISTON SUB ASS'Y

10

SLEEVE

11

SPRING

12

700-80-61260

O-RING

13

700-80-61430

RING

14

07002-13034

O-RING

|15

723-36-41200

VALVE ASS'Y

15

PISTON SUB ASS'Y

16

SLEEVE

17

SPRING

18

700-80-61260

O-RING

19

700-80-61430

RING

20

07002-13034

O-RING

|21

723-36-40100

VALVE ASS'Y

21

PISTON SUB ASS'Y

22

SLEEVE

23

SPRING

24

700-80-61260

O-RING

25

700-80-61430

RING

26

07002-13034

O-RING

|27

723-36-40400

VALVE ASS'Y

27

PISTON SUB ASS'Y

28

SLEEVE

29

SPRING

30

700-80-61260

O-RING

31

700-80-61430

RING

32

07002-13034

O-RING

|33

723-36-43301

VALVE ASS'Y

33

PISTON

34

SEAL

35

SLEEVE

36

SPRING

37

700-80-61260

O-RING

38

700-80-61430

RING

39

07002-13034

O-RING
