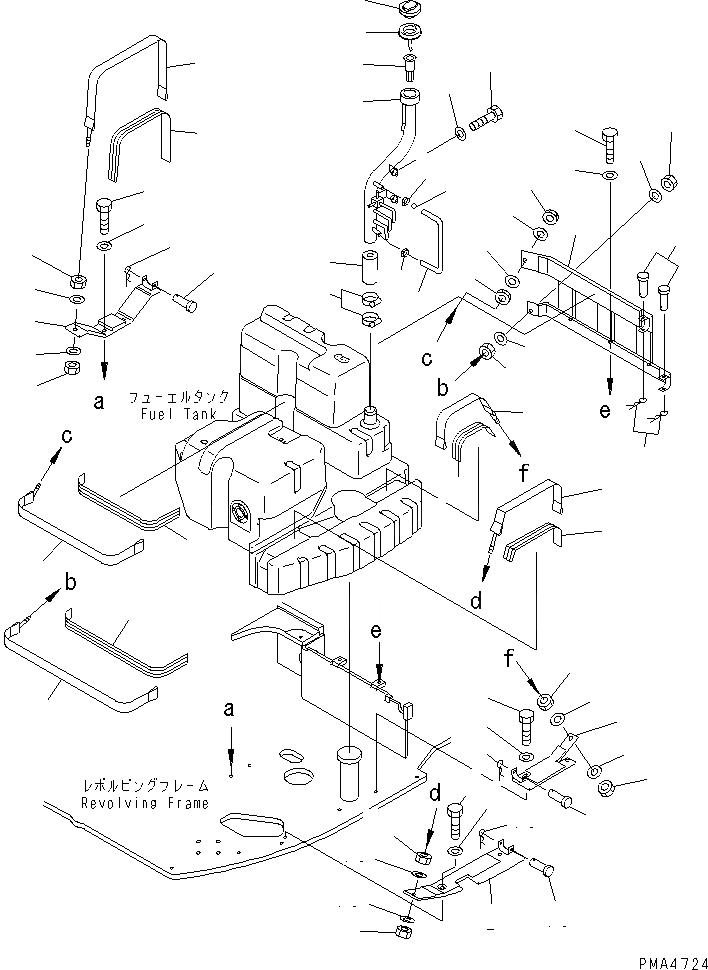

Запчасти Komatsu PC128UU-1 ТОПЛИВН. БАК. (КРЕПЛЕНИЕ)(№-9) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

20U-04-21181

BRACKET

2

21W-04-31220

BRACKET

|2

20U-04-21250

BRACKET

3

21Y-04-11211

BRACKET

4

21Y-04-11351

BRACKET

5

01010-81230

BOLT

6

01643-31232

WASHER

7

21Y-04-11250

BAND

8

21Y-04-11260

CUSHION

9

21Y-04-11270

BAND

10

21Y-04-11280

CUSHION

11

21Y-04-11290

BAND

12

21Y-04-11310

CUSHION

13

21Y-04-11320

BAND

14

21Y-04-11330

CUSHION

15

20U-04-21240

PIN

16

04052-11038

PIN

17

01580-11210

NUT

18

01643-31232

WASHER

19

21Y-04-11121

TUBE

20

20M-04-71150

FILTER

21

01010-81020

BOLT

22

01643-31032

WASHER

23

20U-04-21360

CAP

24

07056-10045

STRAINER

25

20U-04-21131

HOSE

26

07289-00055

CLAMP

|26

07281-00609

CLAMP

27

20U-04-21320

TUBE

28

07285-00155

CLIP

29

201-04-21160

BALL

1

20U-04-21181

BRACKET

2

21W-04-31220

BRACKET

|2

20U-04-21250

BRACKET

3

21Y-04-11211

BRACKET

4

21Y-04-11351

BRACKET

5

01010-81230

BOLT

6

01643-31232

WASHER

7

21Y-04-11250

BAND

8

21Y-04-11260

CUSHION

9

21Y-04-11270

BAND

10

21Y-04-11280

CUSHION

11

21Y-04-11290

BAND

12

21Y-04-11310

CUSHION

13

21Y-04-11320

BAND

14

21Y-04-11330

CUSHION

15

20U-04-21240

PIN

16

04052-11038

PIN

17

01580-11210

NUT

18

01643-31232

WASHER

19

21Y-04-11121

TUBE

20

20M-04-71150

FILTER

21

01010-81020

BOLT

22

01643-31032

WASHER

23

20U-04-21360

CAP

24

07056-10045

STRAINER

25

20U-04-21131

HOSE

26

07289-00055

CLAMP

|26

07281-00609

CLAMP

27

20U-04-21320

TUBE

28

07285-00155

CLIP

29

201-04-21160

BALL
