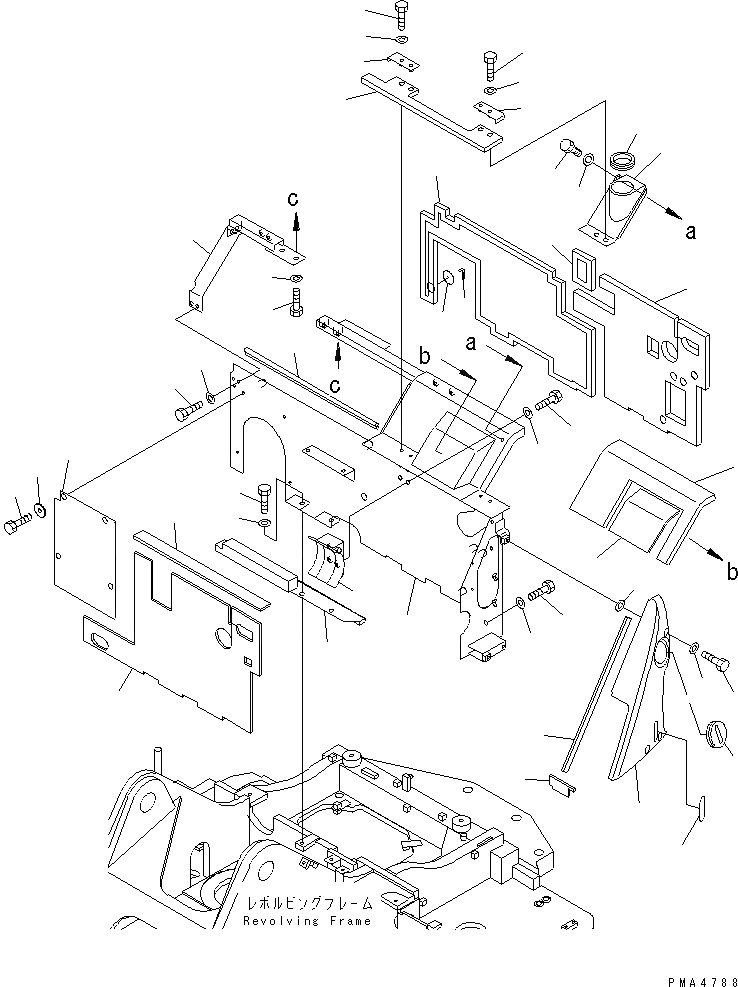

Запчасти Komatsu PC128UU-1 КАПОТ (COVER)(№-) ЧАСТИ КОРПУСА

|1

21Y-54-11401

COVER ASS'Y

1

COVER

2

21Y-54-11421

SHEET

3

21Y-54-11450

SHEET

4

21Y-54-11510

SHEET

5

21Y-54-11470

SHEET

6

21Y-54-11480

SHEET

7

21Y-54-11520

SHEET

8

21Y-54-11540

SHEET

9

04431-10000

CLIP

10

04431-30000

PLATE

11

21Y-54-11440

COVER

12

21X-54-24370

SEAL

13

01010-51225

BOLT

14

01643-31232

WASHER

15

21Y-54-11431

PLATE

15A

01010-51240

BOLT

16

01010-51225

BOLT

|16

01010-51225

BOLT

17

01643-31232

WASHER

|18

21Y-54-11500

COVER ASS'Y

18

COVER

19

20U-54-21470

CUSHION

20

20U-54-21480

CUSHION

21

21Y-04-11360

GROMMET

22

01643-31645

WASHER

|22

01643-31445

WASHER

22A

21Y-98-11150

PLATE

23

01010-51050

BOLT

24

203-54-56970

WASHER

25

21Y-54-11550

BRACKET

26

01010-51225

BOLT

27

01643-31232

WASHER

28

21Y-54-11560

SHEET

29

21N-30-11340

COLLAR

30

01010-51225

BOLT

31

21Y-54-11910

PLATE

32

21Y-54-11920

PLATE

33

01010-51240

BOLT

34

01643-31232

WASHER

35

21Y-54-11570

COVER

36

20U-04-21310

GROMMET

37

01010-51225

BOLT

38

01643-31232

WASHER
