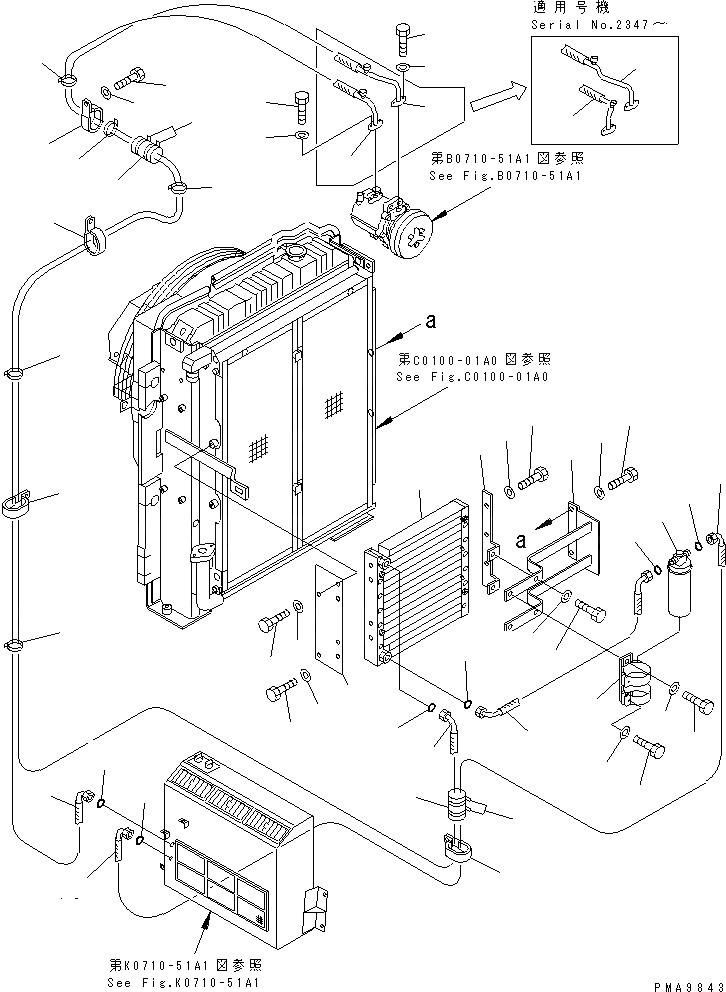

Запчасти Komatsu PC128UU-1 КОНДЕНСАТОР (COMPONENT ЧАСТИ И ТРУБЫ) СИСТЕМА ОХЛАЖДЕНИЯ

1

21Y-978-1120

CONDENSER

2

01010-80616

BOLT

3

01643-30623

WASHER

4

21Y-978-1210

PLATE

5

01010-81020

BOLT

6

01643-31032

WASHER

7

21Y-978-1220

BRACKET

8

21Y-978-1730

BRACKET

|8

21Y-978-1230

BRACKET

9

01010-81020

BOLT

10

01643-31032

WASHER

11

01010-81025

BOLT

12

01643-31032

WASHER

13

21Y-978-1710

HOSE

|13

21Y-978-1160

HOSE

14

203-979-6410

O-RING

15

01010-80616

BOLT

16

01641-20608

WASHER

17

21Y-978-1170

HOSE

18

203-979-6390

O-RING

19

21Y-978-1780

HOSE

|19

21Y-978-1180

HOSE

20

203-979-6390

O-RING

21

21Y-978-1720

HOSE

|21

21Y-978-1190

HOSE

22

203-979-6420

O-RING

23

01010-80616

BOLT

24

01641-20608

WASHER

25

08034-00536

BAND

26

203-62-41150

COVER

26A

203-62-52210

RUBBER

27

08034-00823

BAND

28

04435-52112

CLIP

|28

04435-52110

CLIP

|28

141-06-11220

CLIP

29

08034-00536

BAND

30

176-911-4170

CLIP

31

01010-81220

BOLT

32

01643-31232

WASHER

33

21Y-978-1130

RECEIVER

34

203-978-5430

BRACKET

35

01010-80616

BOLT

36

01643-30623

WASHER

37

01010-80816

BOLT

38

01643-30823

WASHER
