Запчасти Komatsu PC128UU-1 КАБИНА (КОРПУС) (/7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

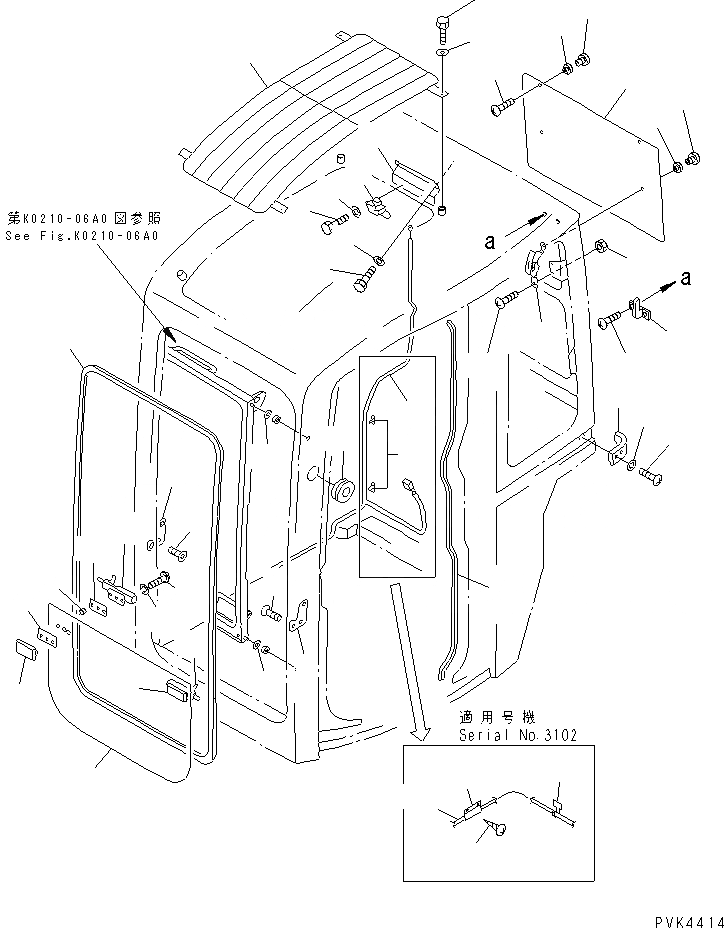

Схема запчастей Komatsu PC128UU-1 - КАБИНА (КОРПУС) (/7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
1
2
3
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
29
30
30
30A
31
31A
31B
32
33
34
35
36
37
38
39
40

Артикул

Название

Примечание

Количество

|1

21W-54-00057

CAB ASS'Y

|1

21W-54-00056

CAB ASS'Y

|1

21W-54-00055

CAB ASS'Y

|1

21W-54-00054

CAB ASS'Y

|1

21W-54-00053

CAB ASS'Y

|1

21W-54-00076

CAB ASS'Y,(WITH FRONT GUARD)

|1

21W-54-00075

CAB ASS'Y,(WITH FRONT GUARD)

|1

21W-54-00074

CAB ASS'Y,(WITH FRONT GUARD)

|1

21W-54-00073

CAB ASS'Y,(WITH FRONT GUARD)

|1

21W-54-00072

CAB ASS'Y,(WITH FRONT GUARD)

|1

21W-54-00091

CAB ASS'Y,(WITH HEAD GUARD)

|1

21W-54-00090

CAB ASS'Y,(WITH HEAD GUARD)

1

20U-54-24671

BRACKET

2

01010-80816

BOLT

3

01643-30823

WASHER

4

205-54-63310

LOCK ASS'Y

5

01010-80816

BOLT

6

01643-30823

WASHER

7

20T-54-74311

STOPPER

8

20T-54-74331

STOPPER

9

20Y-54-14280

SCREW

10

205-54-71560

TRIM

11

20U-54-24651

SEAL,FRONT

12

01641-21016

WASHER

13

20U-54-24592

GLASS,LOWER

14

20U-54-24611

LATCH,L.H.

15

20U-54-24621

LATCH,R.H.

16

20T-54-32780

PACKING

17

20T-54-32870

PACKING¤ 1.0MM

18

20T-54-32750

PACKING¤ 2.0MM

19

20T-54-32760

RETAINER,L.H.

20

20T-54-32770

RETAINER,R.H.

21

01220-40512

SCREW

22

01601-20513

WASHER

23

20U-54-24792

GLASS,REAR¤ UPPER

|23

20U-54-24791

GLASS,REAR¤ UPPER

24

205-54-51720

RETAINER

25

205-54-51730

PACKING

26

01224-40610

SCREW

27

20U-54-25970

LOCK,QUARTER¤ L.H.

|27

20U-54-25980

LOCK,QUARTER¤ R.H.

|27

20U-54-25640

LOCK,QUARTER

|27

22X-54-19260

LOCK,QUARTER

28

01224-40510

SCREW

29

01584-00504

NUT

30

20U-54-24813

WIRING

|30

20U-54-24811

WIRING

30A

21W-54-14691

CLIP

31

21W-54-14690

CLIP

|31

21W-54-14690

CLIP

31A

20T-54-84610

PLATE

31B

01370-00412

SCREW

32

205-54-51250

HANGER

33

01225-70412

SCREW

34

20U-54-25570

CAP

35

20U-54-25180

COVER

36

01220-70612

SCREW

37

01643-70623

WASHER

38

20U-54-24781

GUARD

39

01010-80820

BOLT

40

01643-50823

WASHER

Выбрано товаров: 61
