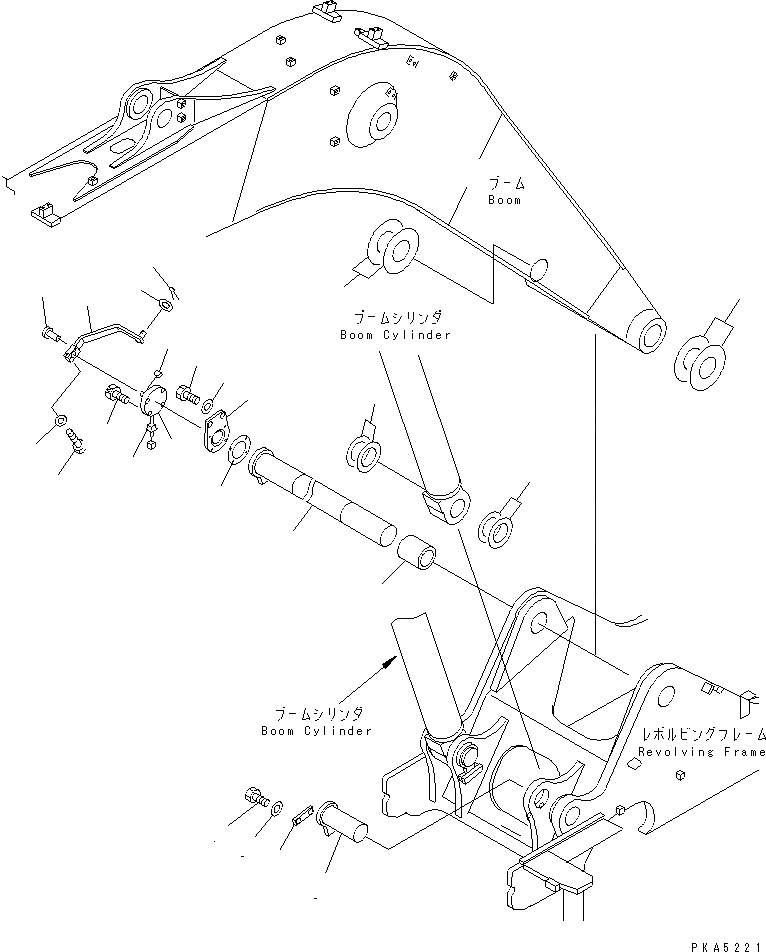

Запчасти Komatsu PC128UU-1 ПАЛЕЦ СТРЕЛЫ(ДЛЯ MONO-СТРЕЛА) ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

1

21Y-70-15240

PIN

2

21Y-70-14760

SPACER, 2.0MM

2

203-70-11220

SPACER, 2.0MM

2

20U-70-31340

SPACER, 1.0MM

2

203-70-11210

SPACER, 1.0MM

2

20U-70-31330

SPACER, 0.5MM

2

203-70-34270

SPACER, 0.5MM

3

21Y-70-14880

SHIM, 3.0MM

3

418-70-11380

SHIM, 3.0MM

4

21Y-70-15230

BUSHING

4

21Y-70-15230

BUSHING

5

203-46-56260

PIN

6

21W-70-11310

PLATE

6

205-70-66580

PLATE

7

01010-81230

BOLT

8

01643-31232

WASHER

9

21Y-70-14830

SPACER, 1.0MM

9

203-70-41460

SPACER, 1.0MM

9

21Y-70-14840

SPACER, 2.0MM

9

203-70-41470

SPACER, 2.0MM

10

7861-92-8301

POTENTIOMETER

10

7861-92-8101

POTENTIOMETER

10

7861-92-8100

POTENTIOMETER

11

21Y-70-14211

LEVER

12

04010-00310

KEY

13

01010-80835

BOLT

14

01602-20825

WASHER

15

04205-10522

PIN

16

01252-40625

BOLT

17

21W-70-21591

CUSHION

18

21Y-70-14460

PLATE

19

01010-81230

BOLT

20

01643-31032

WASHER

21

04050-13022

PIN

22

01641-21223

WASHER
