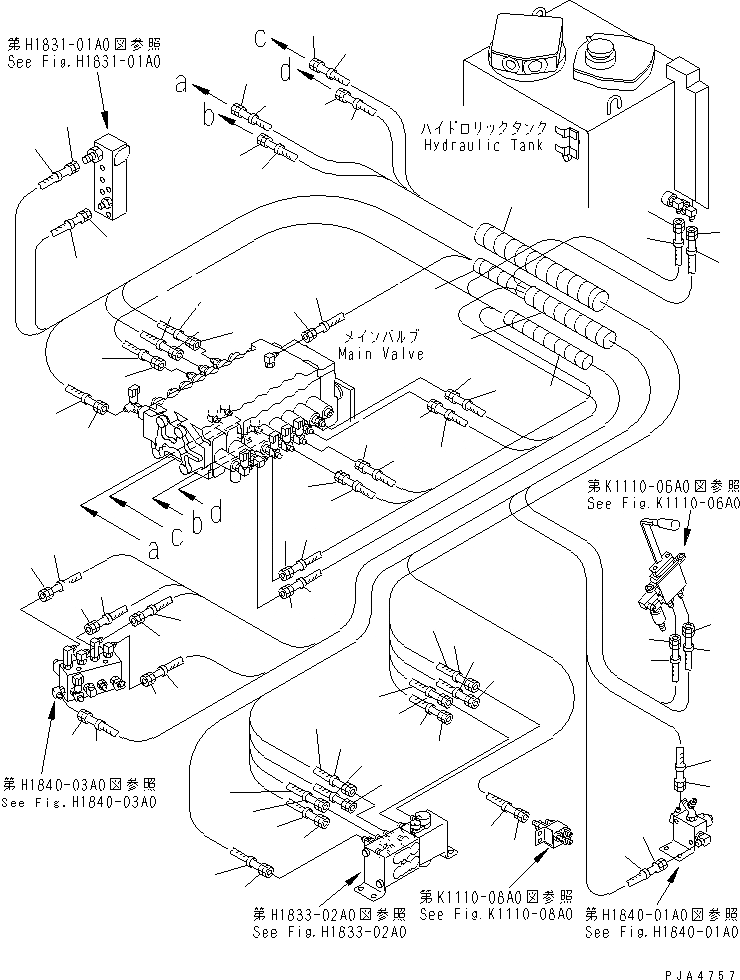

Запчасти Komatsu PC128UU-1 P.P.C. ОСНОВН. ЛИНИЯ (ЛИНИЯ КЛАПАНА PPC ПРАВ.) ГИДРАВЛИКА

1

21Y-62-11540

HOSE, 1800MM

2

201-62-66640

HOSE, 1700MM

3

203-62-52290

HOSE, 1100MM

4

203-62-52350

HOSE, 1200MM

5

203-62-57910

MARK, 1

6

203-62-57920

MARK, 2

7

203-62-57970

MARK, 7

8

203-62-57990

MARK, 10

9

203-62-58650

COVER

10

203-62-62490

MARK, T4

11

07096-00214

HOSE

12

07096-00215

HOSE

13

21Y-62-11560

HOSE, 1530MM

14

203-62-57910

MARK, 1

15

203-62-57920

MARK, 2

16

203-62-57930

MARK, 3

17

203-62-57940

MARK, 4

18

203-62-58650

COVER

19

07102-20323

HOSE

20

21Y-62-11441

HOSE, 2300MM

21

21Y-62-11550

HOSE, 2300MM

22

20T-62-78280

COVER

23

203-62-52230

HOSE, 2200MM

24

203-62-52240

HOSE, 2100MM

25

203-62-52380

HOSE, 1500MM

26

203-62-58110

MARK, 11

27

203-62-58120

MARK, 12

28

203-62-58130

MARK, 13

29

203-62-58160

MARK, P1

30

203-62-58180

MARK, S1

31

203-62-58210

MARK, T1

32

203-62-58540

MARK, T3

33

203-62-58650

COVER

34

203-62-62410

MARK, 14

35

203-62-62420

MARK, 15

36

203-62-62430

MARK, 16

37

203-62-63330

HOSE, 1300MM

38

203-62-63350

HOSE, 1900MM
