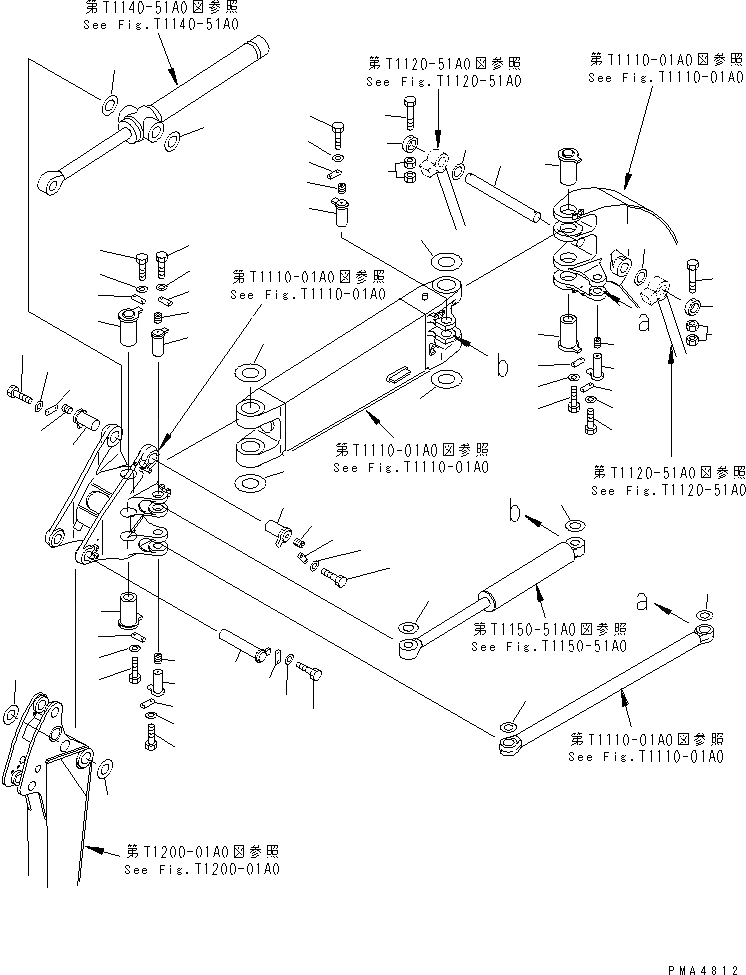

Запчасти Komatsu PC128UU-1 СТРЕЛА (ПАЛЕЦ) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

202-70-61210

PIN

2

20U-70-31340

SPACER, 1.0MM

2

203-70-11210

SPACER, 1.0MM

2

20U-70-31330

SPACER, 0.5MM

2

203-70-34270

SPACER, 0.5MM

3

176-72-41230

PLATE

4

01010-81235

BOLT

5

01643-31232

WASHER

6

21Y-70-14121

PIN

7

176-72-41230

PLATE

8

01010-81235

BOLT

9

01643-31232

WASHER

10

21Y-70-14870

SHIM, 0.5MM

10

41K-70-15490

SHIM, 0.5MM

11

202-70-61180

PIN

12

01019-11640

BOLT

13

01580-11613

NUT

14

21Y-70-14830

SPACER, 1.0MM

14

203-70-41460

SPACER, 1.0MM

15

21K-70-11410

PLATE

16

21Y-70-14150

PIN

17

176-72-41230

PLATE

18

01010-81235

BOLT

20

205-70-51530

SPACER, 1.5MM

19

01643-31232

WASHER

20

21Y-70-14860

SPACER, 1.5MM

20

205-70-51530

SPACER, 1.5MM

21

07049-02430

PLUG

22

21Y-70-12250

PIN

23

176-72-41230

PLATE

24

01010-81235

BOLT

25

01643-31232

WASHER

26

21Y-70-14720

SPACER, 0.5MM

26

202-70-58310

SPACER, 0.5MM

27

07049-01215

PLUG

28

21Y-70-14560

PIN

29

176-72-41230

PLATE

30

01010-81235

BOLT

31

01643-31232

WASHER

32

21Y-70-14770

SPACER, 1.0MM

32

203-70-24150

SPACER, 1.0MM

33

07049-01215

PLUG
