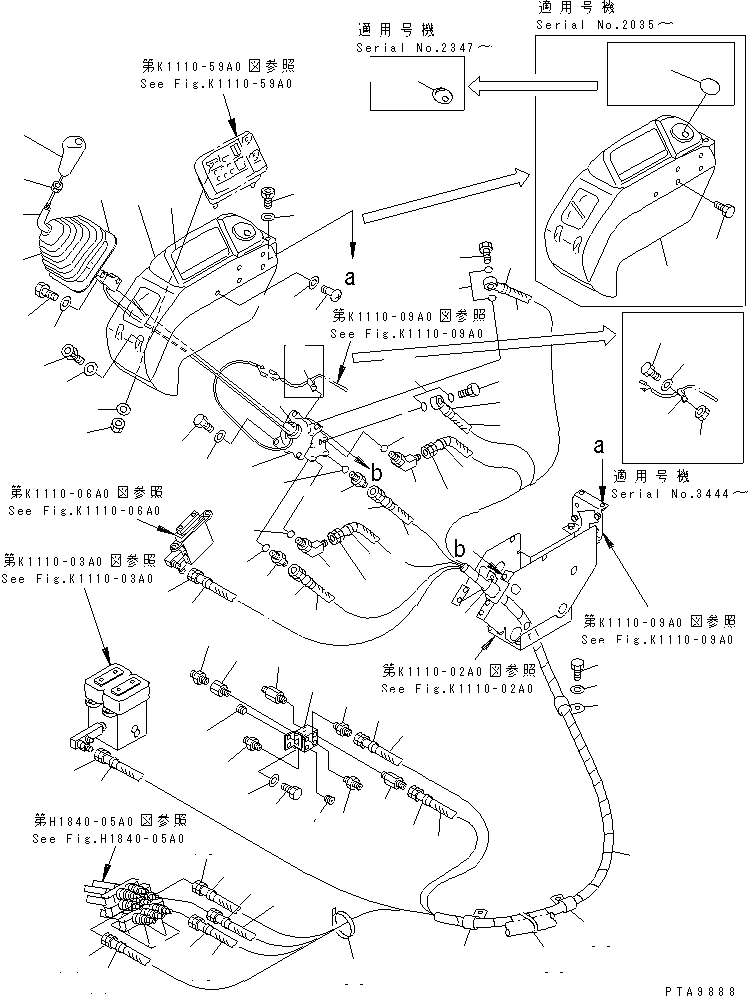

Запчасти Komatsu PC128UU-1 ОСНОВН. КОНСТРУКЦИЯ (ПРАВ. СТОЙКА) (ЛИНИЯ КЛАПАНА PPC ПРАВ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20U-43-21320

LEVER,R.H.

2

01010-81030

BOLT

3

01643-31032

WASHER

4

20T-06-71111

SWITCH, KNOB

4

20T-06-71110

SWITCH, KNOB

5

20T-43-71190

NUT

6

08053-01510

CLIP

6

08036-10810

CLIP

7

08034-30521

BAND

8

20T-43-71160

BOOT

8A

20T-43-71360

PLATE

8B

01010-80820

BOLT

8C

01643-30823

WASHER

8D

01580-10806

NUT

9

702-16-01181

PILOT VALVE,(SEE FIG.Y1670-01A0A)

9

702-16-01180

PILOT VALVE,(SEE FIG.Y1670-01A0A)

9

702-16-01091

PILOT VALVE,(SEE FIG.Y1670-01A0)

9A

01010-80820

BOLT

10

01643-30823

WASHER

11

21Y-62-13160

HOSE

12

21Y-62-13170

HOSE

13

07102-20219

HOSE

14

203-62-63350

HOSE, 1900MM

15

203-62-63390

HOSE, 1950MM

16

20T-62-71710

MARK, 1

17

20T-62-71720

MARK, 2

18

20T-62-71730

MARK, 3

19

20T-62-71740

MARK, 4

20

203-62-58160

MARK, P1

21

203-62-58210

MARK, T1

22

203-62-58540

MARK, T3

23

203-62-32450

COVER

24

702-16-53240

PLUG

25

203-62-57730

BOLT

26

07000-02018

O-RING

27

07230-20210

UNION

28

07236-10210

ELBOW

29

07002-01423

O-RING

30

155-61-15350

CLIP

31

01010-81020

BOLT

32

01643-31032

WASHER

33

08034-00536

BAND

34

21Y-62-11151

PLATE

35

01010-81020

BOLT

36

01643-31032

WASHER

37

07238-10210

CONNECTOR

38

203-62-51710

NIPPLE

39

170-21-11190

NIPPLE

39A

418-878-1480

NIPPLE

40

07043-70211

PLUG

41

20U-54-23392

PANEL BOX ASS'Y

41

20U-54-23600

PANEL BOX ASS'Y,R.H.

41

20U-54-23391

PANEL BOX ASS'Y

41

20U-54-23600

PANEL BOX ASS'Y

41

20U-54-23390

PANEL BOX ASS'Y

41A

21W-98-21582

PLATE, OPERATING

41A

20T-54-71520

PLATE

41B

20T-54-71530

PLUG

42

20T-54-71570

BOLT

43

20T-54-71550

BOLT

44

01643-70823

WASHER

45

20T-43-71480

SCREW

46

01643-70823

WASHER

47

20T-06-71431

BRACKET

48

01580-10605

NUT

49

01641-20608

WASHER

50

08034-00823

BAND
