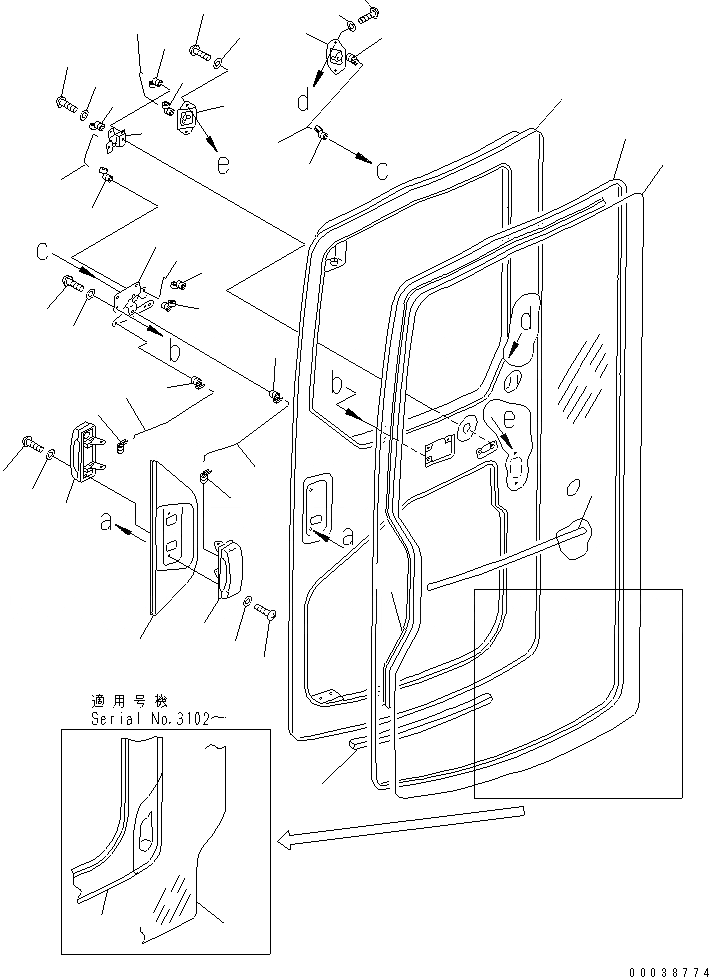

Запчасти Komatsu PC128UU-1 КАБИНА (ДВЕРЬ /) (/7) (С АНТИВАНДАЛЬН.) (ДЛЯ США)(№7-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$2

21W-54-00081

CAB ASS'Y,(WITH VANDALISM)

|$3

21W-54-00080

CAB ASS'Y,(WITH VANDALISM)

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A1 TO K0210-07A1.

|$5

20U-54-00101

DOOR ASS'Y,(WITH VANDALISM)

|$6

20U-54-00100

DOOR ASS'Y,(WITH VANDALISM)

|$$6

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-04A1 AND K0210-05A1.

1

20U-54-25941

DOOR,(WITH VANDALISM)

1

20U-54-25940

DOOR,(WITH VANDALISM)

2

20U-54-24343

GLASS,DOOR

2

20U-54-24342

GLASS,DOOR

3

20U-54-24411

DAM,(L=3850)

4

20U-54-24421

DAM,(L=500)

5

20U-54-24431

TRIM

6

20U-54-25471

COVER

7

20U-54-24451

SEAL,DOOR, LOWER

8

20U-54-24470

HANDLE

9

01220-70612

SCREW

10

01641-20608

WASHER

11

20U-54-24351

REMOTE CONTROL A.

12

01220-40608

SCREW

13

01643-30623

WASHER

14

20U-54-24390

LINK ASS'Y

15

01220-40608

SCREW

16

01643-30623

WASHER

17

20Y-54-14520

LOCK ASS'Y

18

01010-80616

BOLT

19

01643-30623

WASHER

20

20U-54-24361

ROD,(OUT-RIMOC) (WITH VANDALISM)

21

20U-54-24371

ROD,(RIMOC-LOCK)

22

20U-54-25381

ROD,(KEY CYLINDER)

23

20U-54-25391

ROD,(HANDLE-RIMOC) (VANDALISM)

24

20U-54-25421

ROD,(LINK-RIMOC)

25

20U-54-25430

ROD

26

20U-54-25461

SNAP

27

205-54-71830

SNAP

28

205-54-71840

SNAP
