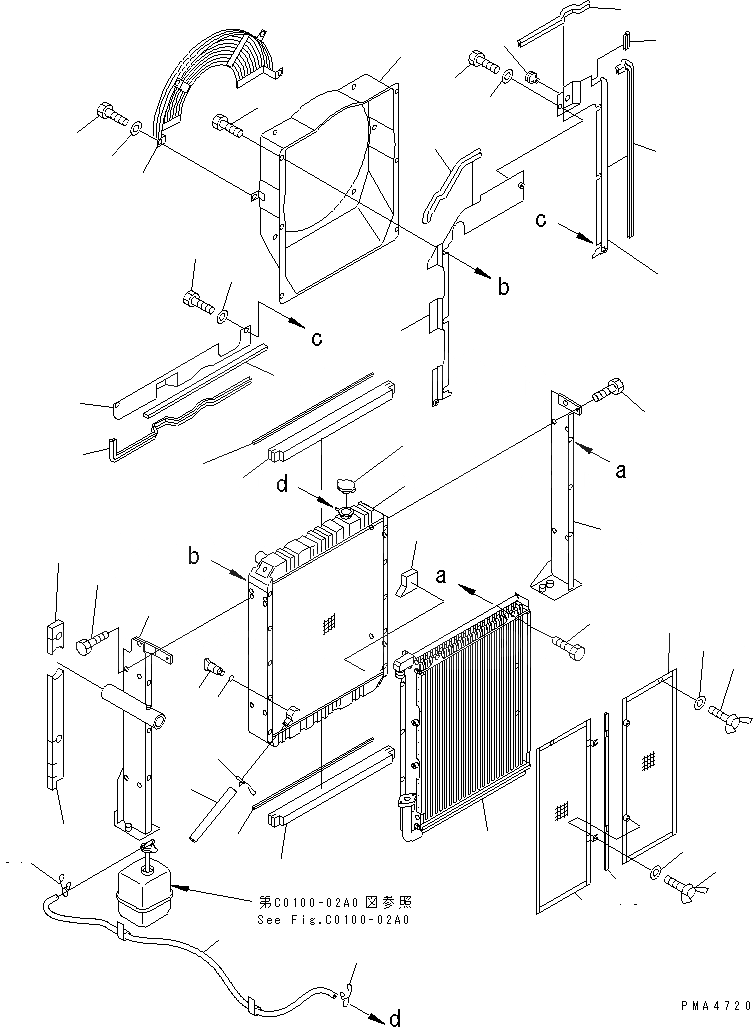

Запчасти Komatsu PC128UU-1 ОХЛАЖД-Е (РАДИАТОР И МАСЛООХЛАДИТЕЛЬ)(№-) СИСТЕМА ОХЛАЖДЕНИЯ

1

203-03-61111

CORE ASS'Y

2

203-03-41280

CAP

3

205-03-62660

PLUG

4

07000-01007

O-RING

5

203-03-56350

HOSE

6

20Y-03-11330

CLIP

7

01435-20814

BOLT

8

203-03-61320

SHEET

9

BRACKET

10

BRACKET

11

21Y-03-11111

OIL COOLER

12

01435-20816

BOLT

13

21Y-03-11270

SHEET

14

21Y-03-11370

NET

15

21Y-03-11360

SEAL

16

21Y-03-11350

NET

17

01434-10616

BOLT, WING,WING

18

01643-30623

WASHER

19

202-03-71141

SHROUD

20

01435-20816

BOLT

21

21Y-03-11210

COVER

22

21Y-03-11221

COVER

23

21Y-03-11230

COVER

24

01010-80814

BOLT

25

01643-30823

WASHER

26

21Y-03-11280

SHEET

27

20U-54-21750

SEAL

28

21Y-03-11240

SEAL

29

21Y-03-11250

SEAL

30

21Y-54-11350

SEAL

31

20T-03-71750

SEAL

32

21Y-03-11320

SHEET

33

21Y-03-11390

SHEET

34

21Y-03-11330

SHEET

35

08037-01610

GROMMET

36

203-03-61420

HOSE

37

206-03-43340

CLIP

38

202-03-71152

GUARD

39

01010-81225

BOLT

40

01643-31232

WASHER
