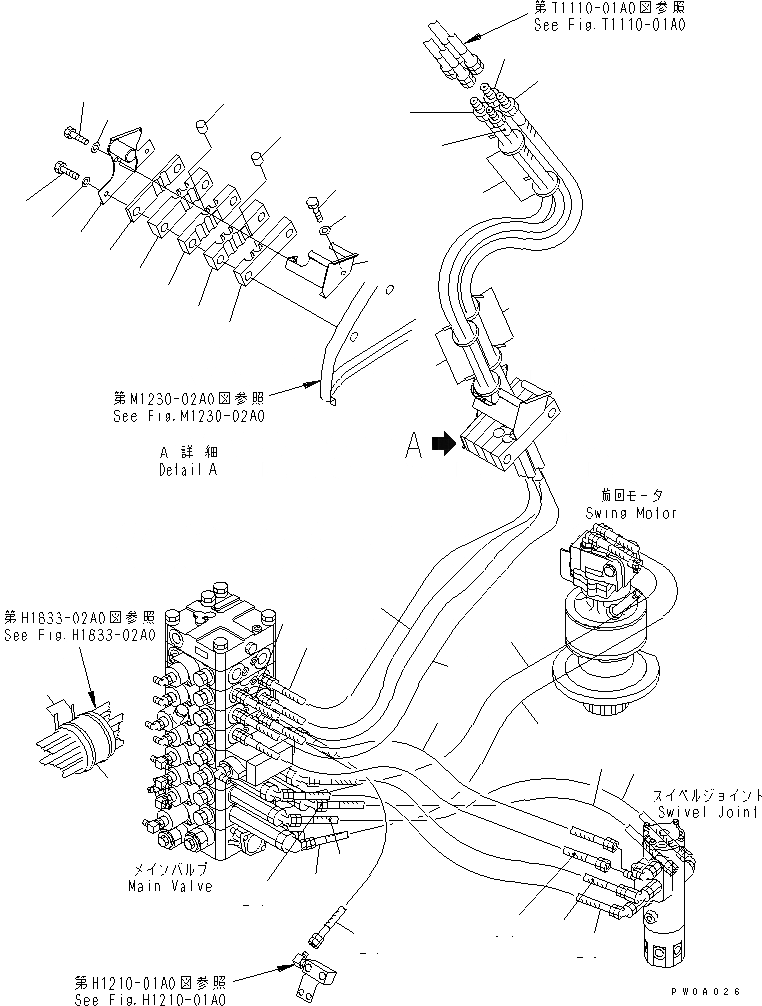

Запчасти Komatsu PC128US-2 ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ НАВЕСН. ОБОРУД И ОТВАЛ) (БЕЗ КЛАПАН СЕЛЕКТОРА)(№-77) ГИДРАВЛИКА

1

22B-62-12511

HOSE, 2345MM,ORANGE

2

22B-62-12521

HOSE, 2315MM,GREEN

3

22B-62-12531

HOSE, 2750MM,RED

4

22B-62-12541

HOSE, 2225MM,BLUE

5

08034-20834

BAND

|$9

22B-62-14630

CUSHION

6

CUSHION

7

22B-62-14650

PLUG

|$12

22B-62-14640

CUSHION

8

CUSHION

9

22B-62-14650

PLUG

10

22B-62-14241

CUSHION

11

22B-62-14251

CUSHION

12

22B-62-14261

CUSHION

13

22B-62-14580

BRACKET

14

01010-81235

BOLT

15

01643-31232

WASHER

16

22B-62-14590

BRACKET

17

01010-81220

BOLT

18

01643-31232

WASHER

19

01010-81020

BOLT

20

01643-31032

WASHER

21

22B-62-11320

PLATE

22

08034-20536

BAND

23

22B-62-12231

HOSE, 970MM

23

22B-62-12230

HOSE, 950MM,BROWN-YELLOW

24

22B-62-12241

HOSE, 950MM

24

22B-62-12240

HOSE, 930MM,ORANGE-YELLOW

25

22B-62-12251

HOSE, 1450MM

25

22B-62-12250

HOSE, 1200MM,BROWN

26

22B-62-12261

HOSE, 1450MM

26

22B-62-12260

HOSE, 1300MM,WHITE

27

22B-62-12270

HOSE, 800MM,BLACK

28

22B-62-12610

HOSE, 880MM,BLACK-YELLOW

29

22B-62-12620

HOSE, 850MM,GREEN-YELLOW

30

22B-62-12630

HOSE, 970MM,RED-BLACK

31

22B-62-12640

HOSE, 920MM,BLUE-BLACK
