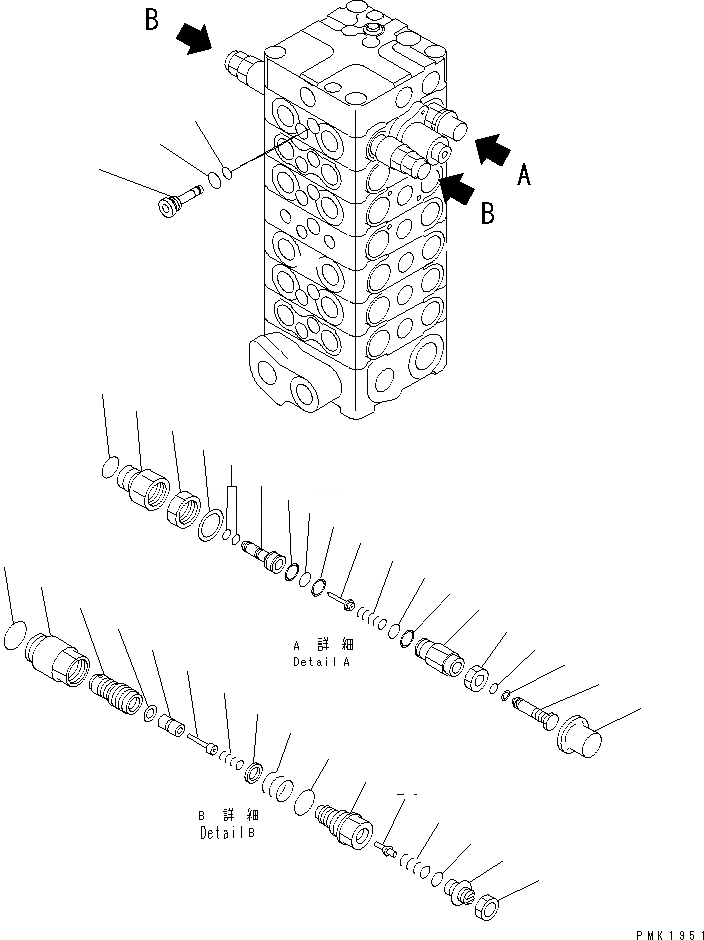

Запчасти Komatsu PC128US-2 ОСНОВН. КЛАПАН (7-КЛАПАН) (/) (ДЛЯ НАВЕСН. ОБОРУД.)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|$5
723-57-13204
CONTROL VALVE
|$6
723-57-13203
CONTROL VALVE
|$7
723-57-13202
CONTROL VALVE
|$8
723-57-13201
CONTROL VALVE
|$9
723-57-13200
CONTROL VALVE
|$11
723-51-01700
VALVE ASS'Y
|$12
723-51-01501
VALVE ASS'Y
|$13
723-51-01500
VALVE ASS'Y
|$14
723-50-42103
VALVE ASS'Y
|$15
723-50-42102
VALVE ASS'Y
|$16
723-50-42100
VALVE ASS'Y
1
SLEEVE
1
SLEEVE
1
SLEEVE
2
07000-13024
O-RING
2
281-64-12210
O-RING
3
SEAT
3
SEAT
4
SEAL
4
SEAL
5
POPPET
6
SPRING
7
PLUG
7
PLUG
8
O-RING
9
RING
10
SCREW
11
O-RING
12
RING,BACK-UP
13
NUT
13
NUT
14
PLATE
14
PLATE
15
NUT
16
CAP
17
723-56-31640
PLUG
18
07002-11623
O-RING
19
07000-11008
O-RING
|$44
709-70-74600
VALVE ASS'Y,SUCTION AND SAFETY
20
SLEEVE
21
SLEEVE
22
POPPET
23
PISTON
24
PLUG
25
POPPET
26
SCREW
27
SPRING
28
SPRING
29
SPRING
30
SEAL
31
SEAL
32
709-25-11390
O-RING
33
O-RING
34
O-RING
35
NUT
Выбрано товаров: 55
