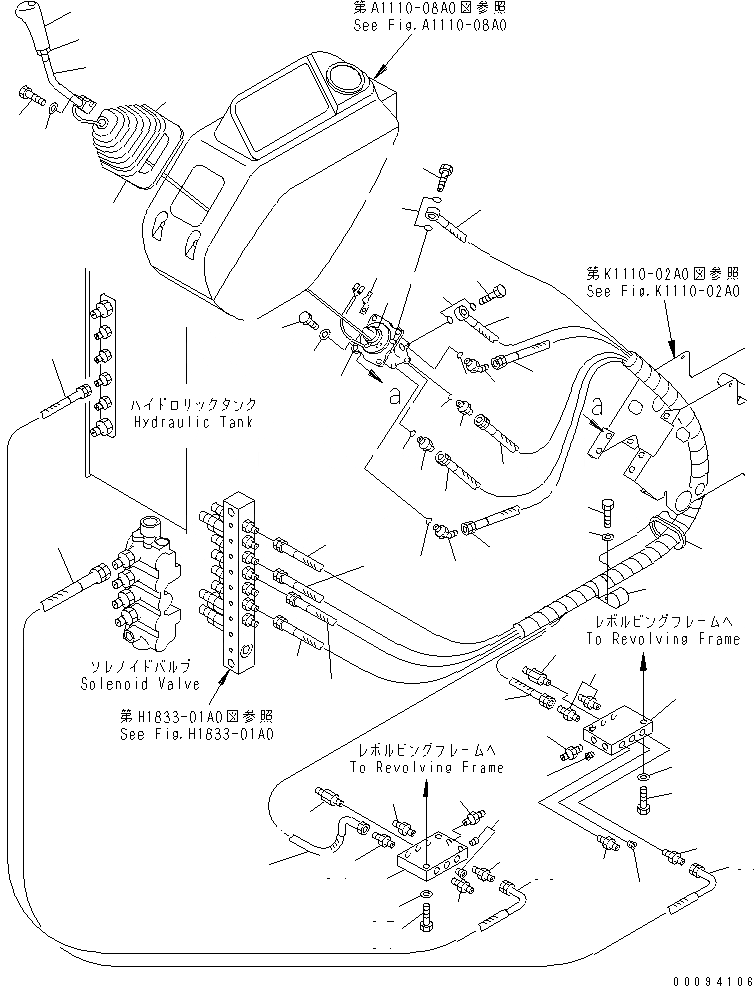

Запчасти Komatsu PC128US-2 ОСНОВН. КОНСТРУКЦИЯ (РЫЧАГ ПРАВ. И КЛАПАН PPCAND ТРУБЫ ПРАВ.) (ДЛЯ ОТВАЛ)(№-77) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20T-43-71130

LEVER,R.H.

2

01010-81030

BOLT

3

01643-31032

WASHER

4

20T-06-71112

SWITCH, KNOB

4

20T-06-71111

SWITCH, KNOB

5

20T-43-71190

NUT

6

08034-30521

BAND

7

20T-43-71160

BOOT

8

20T-43-71360

PLATE

9

702-16-01661

VALVE ASS'Y

10

01010-80820

BOLT

11

01643-30823

WASHER

12

08053-01510

CLIP

13

07230-20210

UNION

14

07002-11423

O-RING

15

07236-10210

ELBOW

16

07002-11423

O-RING

17

203-62-62651

HOSE, 1250MM

17

21U-62-34760

BAND, RED

17

21U-62-34730

BAND, GREEN

18

20Y-62-23273

HOSE, 2850MM

18

20Y-62-21921

HOSE, 2800MM

18

21U-62-34710

BAND, YELLOW

19

20Y-62-21921

HOSE, 2800MM

19

21U-62-34750

BAND, BLUE

20

22B-62-13310

HOSE, 2900MM

20

20Y-62-23273

HOSE, 2850MM

20

21U-62-34720

BAND, BLACK

21

22B-62-13310

HOSE, 2900MM

21

21U-62-34760

BAND, RED

22

22B-62-13330

HOSE, 1600MM

22

21U-62-34750

BAND, BLUE

22

21U-62-34770

BAND, WHITE

23

702-16-53240

PLUG

24

203-62-57730

BOLT

25

07000-12018

O-RING

26

08034-00536

BAND

27

113-899-7950

CLIP

28

01010-81020

BOLT

29

01643-31032

WASHER

30

22B-62-13110

BLOCK

31

01010-81040

BOLT

32

01643-31032

WASHER

33

07043-70211

PLUG

34

07238-10210

CONNECTOR

35

418-878-1480

NIPPLE

36

07238-10313

CONNECTOR

37

22B-62-13210

HOSE

38

22B-62-13220

HOSE
