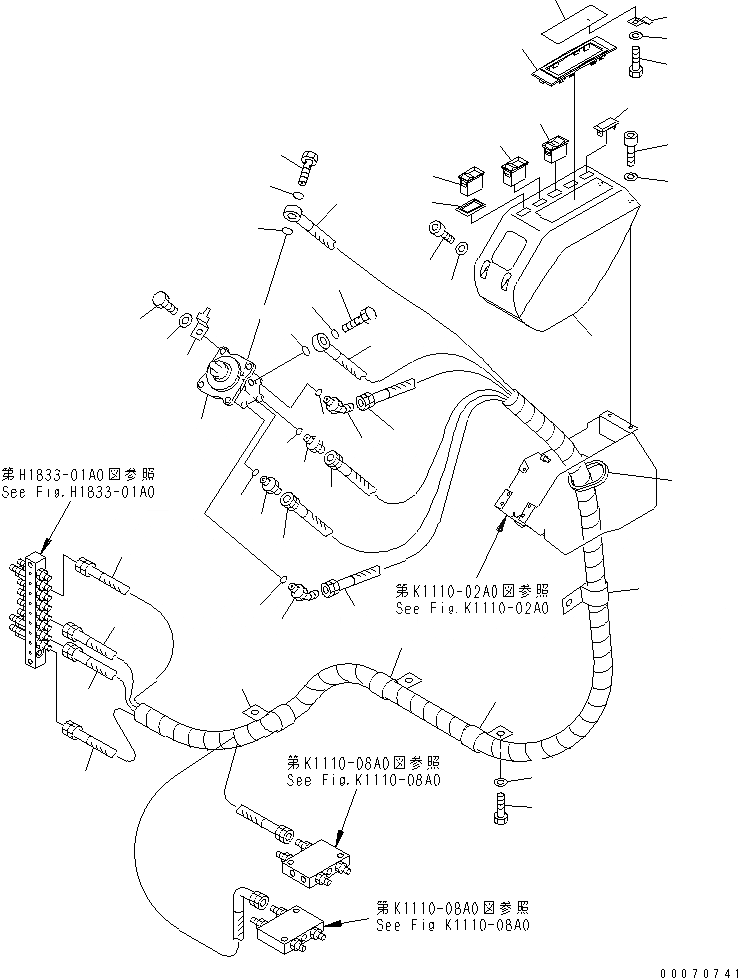

Запчасти Komatsu PC128US-2 ОСНОВН. КОНСТРУКЦИЯ (КЛАПАН PPCAND ТРУБЫ ЛЕВ.)(№-77) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01661

VALVE ASS'Y

2

01010-80820

BOLT

3

01643-30823

WASHER

4

08053-01510

CLIP

5

07230-20210

UNION

6

07002-11423

O-RING

7

07236-10210

ELBOW

8

07002-11423

O-RING

9

22B-62-13230

HOSE, 3550MM

9

21U-62-34740

BAND, ORANGE

10

22B-62-13390

HOSE, 3650MM

10

22B-62-13230

HOSE, 3550MM

10

21U-62-34770

BAND, WHITE

11

22U-62-22430

HOSE, 3500MM

11

22B-62-13240

HOSE, 3450MM

11

21U-62-34730

BAND, GREEN

12

22U-62-22430

HOSE, 3500MM

12

22B-62-13240

HOSE, 3450MM

12

21U-62-34780

BAND, BROWN

13

22B-62-13250

HOSE, 1800MM

13

21U-62-34760

BAND, RED

13

21U-62-34730

BAND, GREEN

14

22B-62-13261

HOSE, 2150MM

14

21U-62-34750

BAND, BLUE

14

21U-62-34770

BAND, WHITE

15

702-16-53240

PLUG

16

203-62-57730

BOLT

17

07000-12018

O-RING

18

08034-00536

BAND

19

113-899-7950

CLIP

20

01010-81020

BOLT

21

01643-31032

WASHER

22

201-54-73281

CONSOLE BOX

23

20T-54-71570

BOLT

24

20T-54-71550

BOLT

25

01643-70823

WASHER

26

201-06-71210

SWITCH

27

201-54-73190

SPACER

28

201-06-71440

SWITCH

29

20Y-06-23950

SWITCH

30

201-54-73410

COVER

31

201-54-73291

COVER

32

203-54-64210

COVER

33

203-54-64220

PLATE

34

01010-80816

BOLT

35

01643-30823

WASHER
