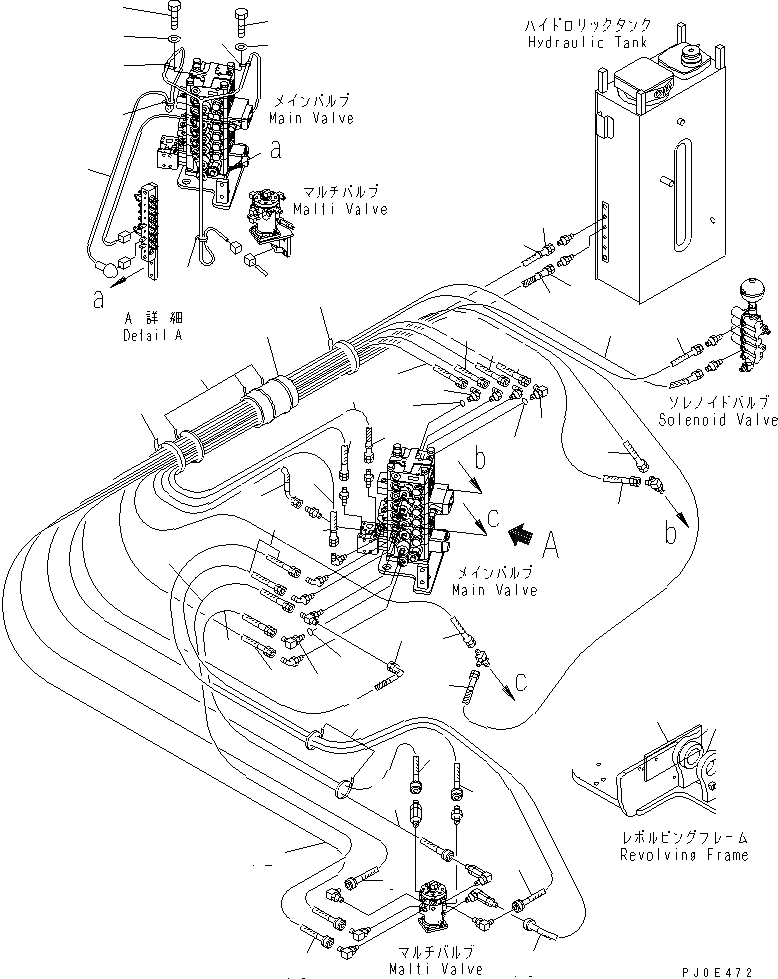

Запчасти Komatsu PC128US-2 РАСПРЕДЕЛИТ. КЛАПАН (MULTI PATTERN) (ОСНОВН. КЛАПАН ШЛАНГИ И ПАТРУБОК)(№-7) ГИДРАВЛИКА

1

20T-62-81410

HOSE¤ 500MM

2

20T-62-81460

HOSE¤ 600MM

3

20Y-62-22782

HOSE¤ 650MM,BLUE

3A

20Y-62-22782

HOSE¤ 650MM,BLACK

4

20Y-62-25681

HOSE¤ 750MM,BROWN

5

22B-62-13520

HOSE¤ 420MM,BLUE-WHITE

6

22B-62-13540

HOSE¤ 300MM

7

22B-62-13510

HOSE¤ 1100MM,BLUE-WHITE

8

22B-62-13530

HOSE¤ 730MM,GREEN-GREEN

9

203-62-52440

HOSE¤ 500MM,RED-GREEN

10

20Y-62-22662

HOSE¤ 470MM,RED

11

203-62-62612

HOSE¤ 330MM,WHITE

12

20Y-62-23832

HOSE¤ 800MM,GREEN

13

22B-62-13810

HOSE¤ 400MM,YELLOW

14

203-62-57920

MARK¤ 2

15

203-62-57930

MARK¤ 3

16

08034-00536

BAND

17

22B-62-11320

PLATE

18

08034-20536

BAND

19

22B-62-12420

ELBOW

20

22B-62-12430

ELBOW

21

07002-11423

O-RING

22

22B-06-13911

WIRE

23

04434-51008

CLIP

24

01010-81016

BOLT

25

01643-31032

WASHER

26

08034-00310

BAND

27

8233-62-3150

ELBOW

28

07002-11423

O-RING
