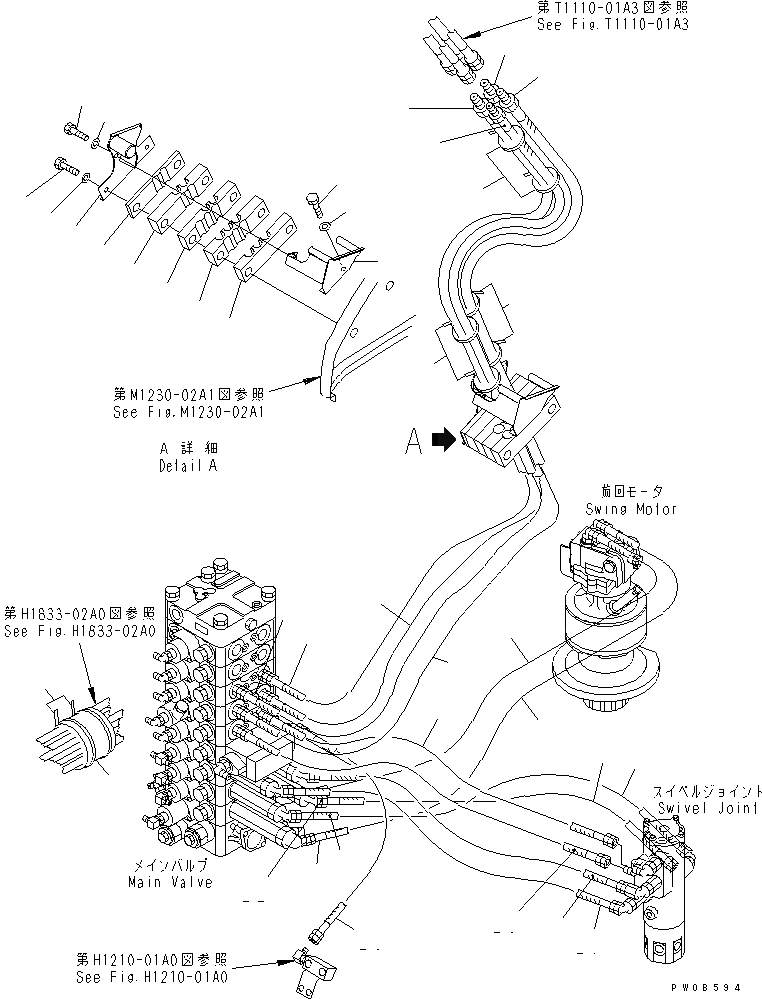

Запчасти Komatsu PC128US-2 ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ -ACTUATER НАВЕСН. ОБОРУД И ОТВАЛ) (ДЛЯ СТРАН ЕС)(№-77) ГИДРАВЛИКА

1

22B-62-12511

HOSE, 2345MM,ORANGE

2

22B-62-12521

HOSE, 2315MM,GREEN

3

22B-62-12531

HOSE, 2750MM,RED

4

22B-62-12541

HOSE, 2225MM,BLUE

5

08034-20834

BAND

6

22B-62-14730

CUSHION

7

22B-62-14740

CUSHION

8

22B-62-14750

CUSHION

9

22B-62-14251

CUSHION

10

22B-62-14261

CUSHION

11

22B-62-14580

BRACKET

12

01010-81235

BOLT

13

01643-31232

WASHER

14

22B-958-2140

BRACKET

15

01010-81220

BOLT

16

01643-31232

WASHER

17

01010-81020

BOLT

18

01643-31032

WASHER

19

22B-62-11320

PLATE

20

08034-20536

BAND

21

22B-62-12231

HOSE, 970MM

21

22B-62-12230

HOSE, 950MM,BROWN-YELLOW

22

22B-62-12241

HOSE, 950MM

22

22B-62-12240

HOSE, 930MM,ORANGE-YELLOW

23

22B-62-12251

HOSE, 1450MM

23

22B-62-12250

HOSE, 1200MM,BROWN

24

22B-62-12261

HOSE, 1450MM

24

22B-62-12260

HOSE, 1300MM,WHITE

25

22B-62-12270

HOSE, 800MM,BLACK

26

22B-62-12610

HOSE, 880MM,BLACK-YELLOW

27

22B-62-12620

HOSE, 850MM,GREEN-YELLOW

28

22B-62-12630

HOSE, 970MM,RED-BLACK

29

22B-62-12640

HOSE, 920MM,BLUE-YELLOW
