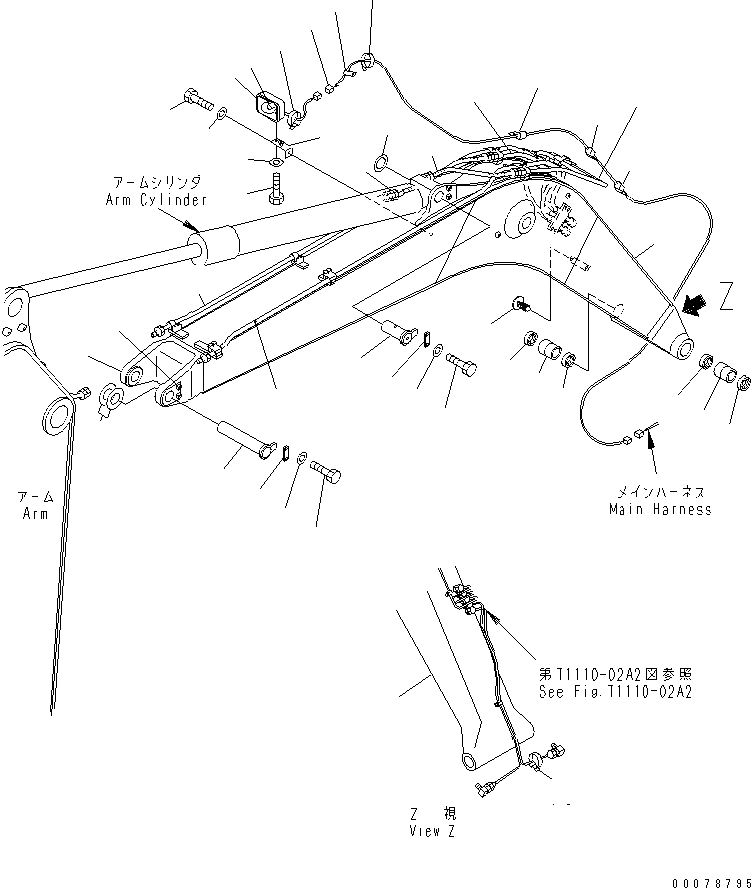

Запчасти Komatsu PC128US-2 СТРЕЛА (СТРЕЛА¤РАБОЧ. ОСВЕЩЕНИЕ И ПАЛЕЦ) (КРОМЕ ЯПОН.) (YELНИЗ.)(№77-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$1

22B-70-00110SA

BOOM ASS'Y

1

BOOM

|$4

22B-70-00220

BRACKET ASS'Y

2

BRACKET

3

203-46-41130

SEAT

4

203-70-66110

BUSHING

5

07145-00070

SEAL,DUST

6

X22-0083660

BOOM SEAL G.(FOOT),FOOT

7

X22-0651532

WORK LAMP G.

8

22B-06-11690

WORK LAMP ASS'Y

9

421-06-23330

BULB, 70W

10

22B-70-11380

BRACKET

11

01010-81225

BOLT

12

01643-31232

WASHER

13

22B-06-11342

WIRING HARNESS

14

04434-51012

CLIP

15

08034-20834

BAND

16

08034-30521

BAND

17

01010-81020

BOLT

18

01643-31032

WASHER

19

22B-70-15220SA

PIN

20

21W-70-11310SA

PLATE (YELLOW)

21

01010-81230

BOLT

22

01643-31232

WASHER

23

20U-70-31340

SPACER, 1.0MM

23

20U-70-31330

SPACER, 0.5MM

24

203-70-42121SA

PIN

25

21W-70-11310SA

PLATE (YELLOW)

26

01010-81230

BOLT

27

01643-31232

WASHER

28

21Y-70-14830

SPACER, 1.0MM

29

22B-62-15141

TUBE

30

22B-62-15131

TUBE

31

22B-62-12550

HOSE

32

203-62-61750

HOSE

33

22B-62-15122

TUBE

34

22B-62-15111

TUBE
