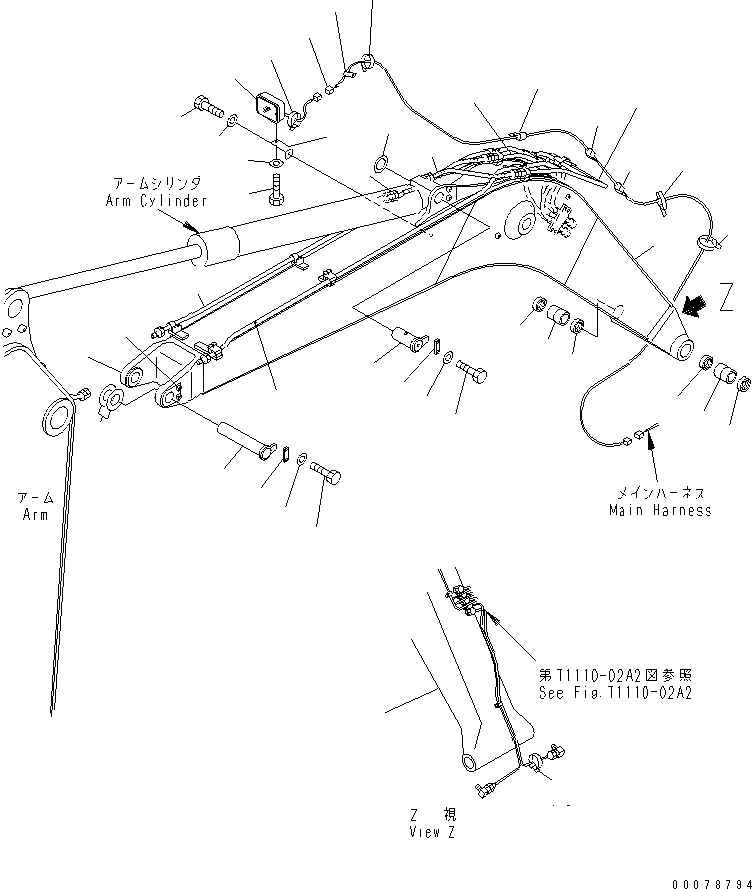

Запчасти Komatsu PC128US-2 СТРЕЛА (СТРЕЛА¤РАБОЧ. ОСВЕЩЕНИЕ И ПАЛЕЦ) (КРОМЕ ЯПОН.) (YELНИЗ.)(№-77) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$1

22B-70-00050SA

BOOM ASS'Y

1

BOOM ASS'Y

|$4

22B-70-00220

BRACKET ASS'Y

2

BRACKET

3

203-46-41130

SEAT

4

203-70-66110

BUSHING

5

07145-00070

SEAL,DUST

6

07145-00070

SEAL,DUST

7

20Y-06-25310

WORK LAMP ASS'Y

8

203-06-56410

BRACKET

9

01010-81225

BOLT

10

01643-31232

WASHER

11

22B-06-11341

WIRING HARNESS

11

22B-06-11340

WIRING HARNESS

12

04434-51012

CLIP

13

08034-20823

BAND

14

08034-20834

BAND

15

08034-30521

BAND

15

08034-30521

BAND

16

01010-81020

BOLT

16

01010-81225

BOLT

17

01643-31032

WASHER

17

01643-31232

WASHER

18

22B-70-15220SA

PIN,BOOM TOP

19

21W-70-11310SA

PLATE (YELLOW)

20

01010-81230

BOLT

21

01643-31232

WASHER

22

20U-70-31340

SPACER, 1.0MM

22

20U-70-31330

SPACER, 0.5MM

23

203-70-42121SA

PIN

24

21W-70-11310SA

PLATE (YELLOW)

25

01010-81230

BOLT

26

01643-31232

WASHER

27

21Y-70-14830

SPACER, 1.0MM

28

22B-62-15141

TUBE

29

22B-62-15131

TUBE

30

07096-00507

HOSE

31

203-62-61750

HOSE

32

22B-62-15121

TUBE

33

21Y-70-15460SA

TUBE
