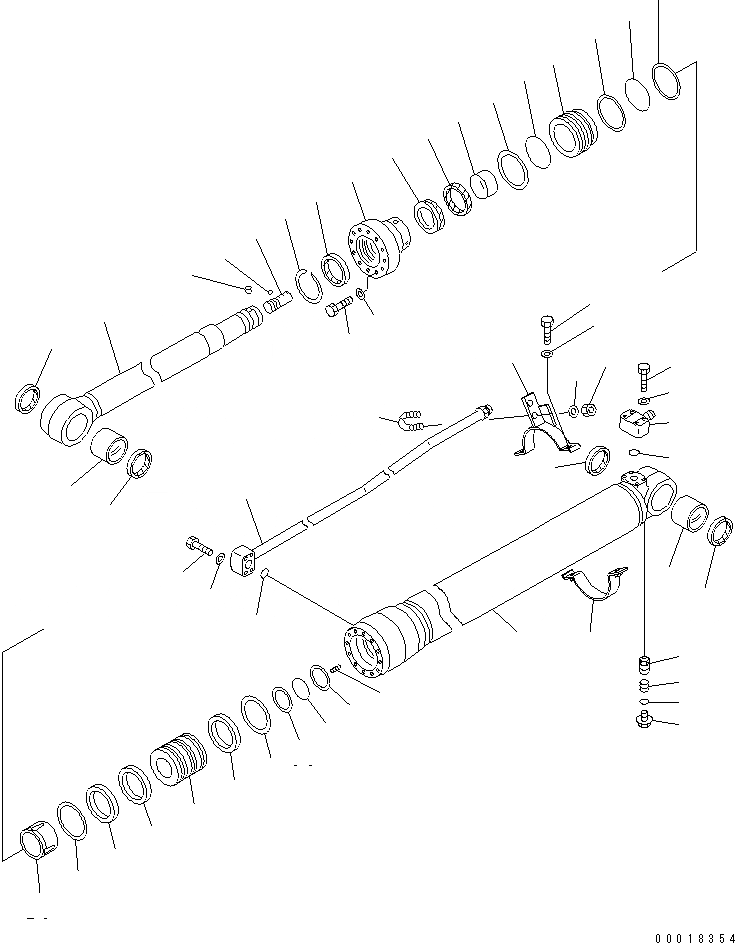

Запчасти Komatsu PC128US-2-AT ЦИЛИНДР РУКОЯТИ(ВНУТР. ЧАСТИ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

707-01-XG140

ARM CYLINDER ASS'Y,(NATURAL YELLOW)

|1

707-01-0G140

CYLINDER ASS'Y,ARM

1

707-13-11640

CYLINDER,ARM

2

21K-70-71320

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

707-71-32530

COLLAR

5

07000-15105

O-RING (KIT)

6

707-35-91150

RING,BACK-UP (KIT)

7

707-27-11971

HEAD,CYLINDER

8

707-52-90500

BUSHING

9

707-51-75030

PACKING,ROD (KIT)

10

707-51-75640

RING,BUFFER (KIT)

11

07000-15105

O-RING (KIT)

12

707-35-91150

RING,BACK-UP (KIT)

13

144-63-94170

SEAL,DUST (KIT)

14

07179-13089

RING,SNAP

15

01010-81670

BOLT

16

01643-51645

WASHER

17

707-58-75670

ROD

18

707-71-80230

PLUNGER

19

04260-00635

BALL

20

707-71-91270

CAP

21

21K-70-71320

BUSHING

22

07145-00070

SEAL,DUST (KIT)

23

707-71-60870

PLUNGER

24

707-36-11851

PISTON

25

707-44-11280

RING,PISTON (KIT)

26

707-39-11530

RING,WEAR (KIT)

27

707-44-11920

RING

28

01310-01216

SCREW

29

07000-15070

O-RING (KIT)

30

707-35-90360

RING,BACK-UP (KIT)

31

707-83-13010

VALVE

32

07750-01628

SPRING

33

707-87-14070

PLUG

34

07002-12034

O-RING (KIT)

35

707-87-25330

ELBOW

36

07000-13025

O-RING (KIT)

37

01010-80855

BOLT

38

01643-50823

WASHER

39

707-86-55200

TUBE

40

07000-13025

O-RING (KIT)

41

01010-50850

BOLT

42

01643-50823

WASHER

43

707-88-21680

BAND

44

707-88-25080

BRACKET

45

01010-51035

BOLT

46

01643-51032

WASHER

47

07283-32236

CLIP

48

01597-01009

NUT

49

01643-31032

WASHER

K

707-99-44380

SERVICE KIT,ARM CYLINDER
