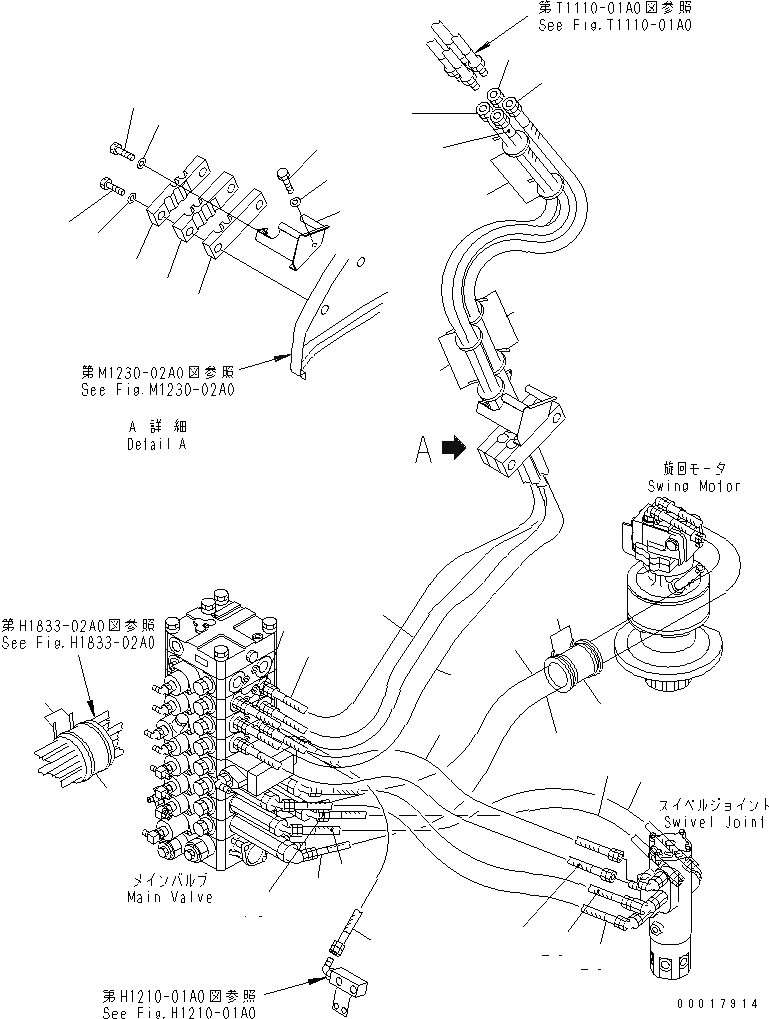

Запчасти Komatsu PC128US-2-AC ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ ОТВАЛ И -НАВЕСН. ОБОРУД И РУКОЯТЬ CRANE) ГИДРАВЛИКА

1

22B-62-17510

HOSE

|1

21U-62-34740

BAND¤ ORANGE

2

22B-62-17520

HOSE

|2

21U-62-34730

BAND¤ GREEN

3

22B-62-17530

HOSE

|3

21U-62-34760

BAND¤ RED

4

22B-62-17540

HOSE

|4

21U-62-34750

BAND¤ BLUE

5

08034-20834

BAND

6

22B-62-14221

CUSHION

7

22B-62-14231

CUSHION

8

22B-62-14242

CUSHION

9

01010-81235

BOLT

10

01643-31232

WASHER

11

22B-62-14590

BRACKET

12

01010-81220

BOLT

13

01643-31232

WASHER

14

01010-81020

BOLT

15

01643-31032

WASHER

16

22B-62-11320

PLATE

17

08034-20536

BAND

18

22B-62-17630

HOSE

|18

21U-62-34780

BAND¤ BROWN

|18

21U-62-34710

BAND¤ YELLOW

19

22B-62-17610

HOSE

|19

21U-62-34740

BAND¤ ORANGE

|19

21U-62-34710

BAND¤ YELLOW

20

22B-62-17650

HOSE

|20

21U-62-34780

BAND¤ BROWN

21

22B-62-17660

HOSE

|21

21U-62-34770

BAND¤ WHITE

22

22B-62-17670

HOSE

|22

21U-62-34720

BAND¤ BLACK

23

07095-01245

CUSHION

24

08034-20823

BAND

25

22B-62-17810

HOSE

|25

21U-62-34730

BAND¤ GREEN

|25

21U-62-34710

BAND¤ YELLOW

26

22B-62-17820

HOSE

|26

21U-62-34720

BAND¤ BLACK

|26

21U-62-34710

BAND¤ YELLOW

27

22B-62-17830

HOSE

|27

21U-62-34760

BAND¤ RED

|27

21U-62-34720

BAND¤ BLACK

28

22B-62-17840

HOSE

|28

21U-62-34750

BAND¤ BLUE

|28

21U-62-34710

BAND¤ YELLOW
