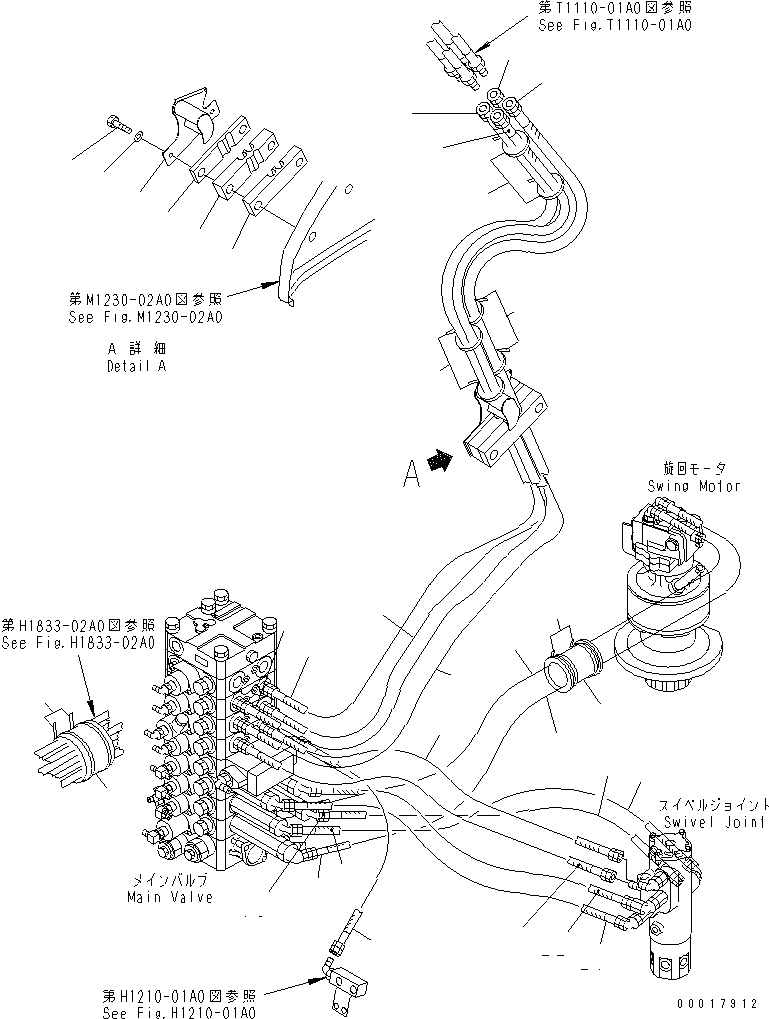

Запчасти Komatsu PC128US-2-AC ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) (ДЛЯ ОТВАЛ И РУКОЯТЬ CRANE) ГИДРАВЛИКА

1

22B-62-17510

HOSE

|1

21U-62-34740

BAND¤ ORANGE

2

22B-62-17520

HOSE

|2

21U-62-34730

BAND¤ GREEN

3

22B-62-17530

HOSE

|3

21U-62-34760

BAND¤ RED

4

22B-62-17540

HOSE

|4

21U-62-34750

BAND¤ BLUE

5

22B-62-14262

CUSHION

6

22B-62-14252

CUSHION

7

22B-62-11432

CUSHION

8

01010-81235

BOLT

9

01643-31232

WASHER

10

22B-62-11820

BRACKET

11

08034-20834

BAND

12

22B-62-11320

PLATE

13

08034-20536

BAND

14

22B-62-17630

HOSE

|14

21U-62-34780

BAND¤ BROWN

|14

21U-62-34710

BAND¤ YELLOW

15

22B-62-17610

HOSE

|15

21U-62-34740

BAND¤ ORANGE

|15

21U-62-34710

BAND¤ YELLOW

16

22B-62-17650

HOSE

|16

21U-62-34780

BAND¤ BROWN

17

22B-62-17660

HOSE

|17

21U-62-34770

BAND¤ WHITE

18

22B-62-17670

HOSE

|18

21U-62-34720

BAND¤ BLACK

19

07095-01245

CUSHION

20

08034-20823

BAND

21

22B-62-17810

HOSE

|21

21U-62-34730

BAND¤ GREEN

|21

21U-62-34710

BAND¤ YELLOW

22

22B-62-17820

HOSE

|22

21U-62-34720

BAND¤ BLACK

|22

21U-62-34710

BAND¤ YELLOW

23

22B-62-17830

HOSE

|23

21U-62-34760

BAND¤ RED

|23

21U-62-34720

BAND¤ BLACK

24

22B-62-17840

HOSE

|24

21U-62-34750

BAND¤ BLUE

|24

21U-62-34710

BAND¤ YELLOW
