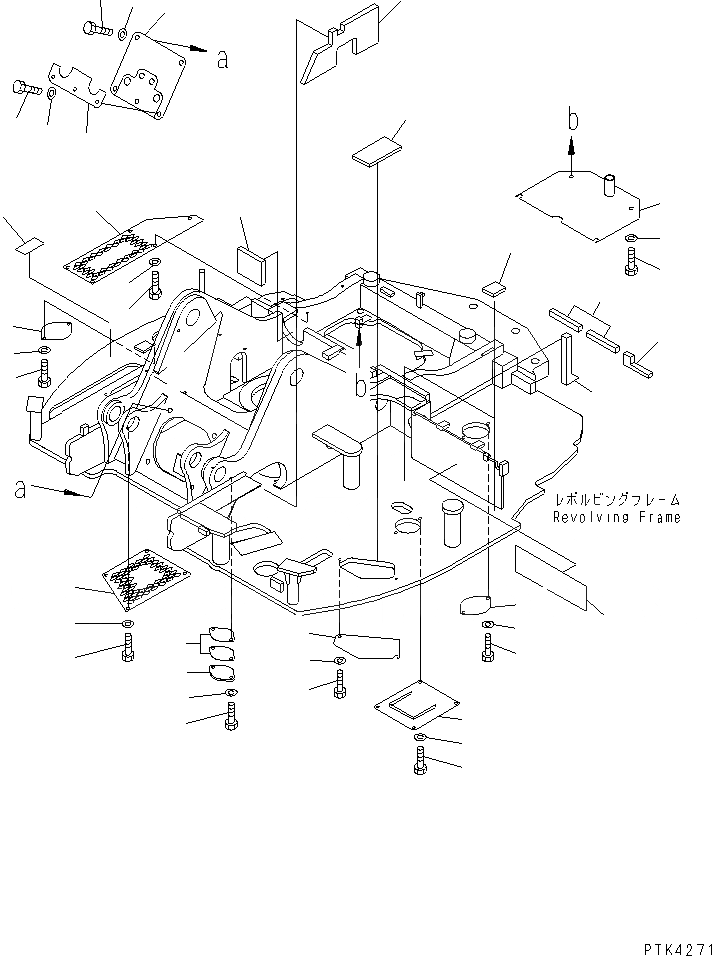

Запчасти Komatsu PC128US-1 НИЖН. КРЫШКА ЧАСТИ КОРПУСА

1

21Y-46-11211

COVER

2

01010-81225

BOLT

3

01643-31232

WASHER

4

21Y-46-11220

PLATE

5

01010-81225

BOLT

6

01643-31232

WASHER

7

21Y-46-11230

COVER

8

21Y-46-11240

COVER

9

01010-81020

BOLT

10

01643-31032

WASHER

11

21W-46-21240

COVER

11A

21Y-46-17411

COVER

|11A

21Y-46-17410

COVER

12

01010-81225

BOLT

12A

01010-81230

BOLT

12B

01010-81225

BOLT

13

01643-31032

WASHER

13A

01643-31232

WASHER

14

21Y-46-11280

PLATE

15

01010-81225

BOLT

16

01643-31232

WASHER

17

203-46-56160

COVER

18

203-46-31181

GASKET

19

01010-81225

BOLT

20

01643-31232

WASHER

21

21Y-03-11310

SHEET

22

21Y-04-11231

CUSHION

|22

21Y-04-11230

CUSHION

|22

21Y-04-11230

CUSHION

23

21Y-04-11240

CUSHION

24

21Y-04-17341

SHEET

|24

21Y-04-17340

SHEET

25

21Y-46-17270

COVER

25A

21Y-46-12190

SHEET

|25A

205-03-71440

SHEET

26

01010-81225

BOLT

27

01643-31232

WASHER

28

21Y-46-11320

SHEET

29

21Y-46-11330

SHEET

30

21Y-46-11340

SHEET

31

21Y-46-11350

SHEET
