Артикул
Название
Примечание
Количество
|$3
21Y-70-00161

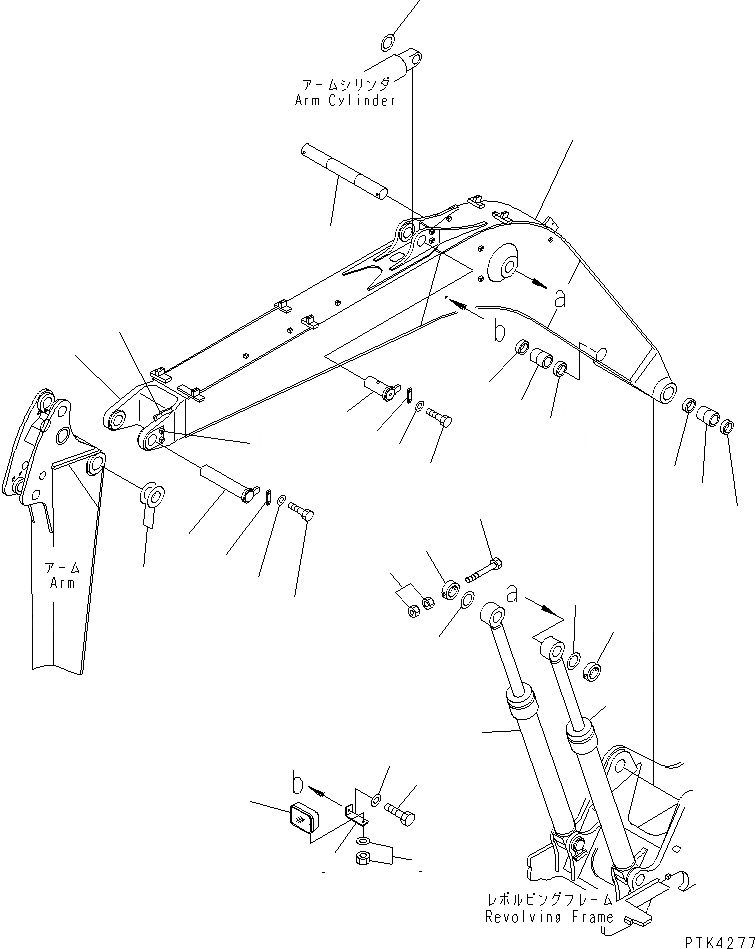

BOOM ASS'Y
1
BOOM
2
21Y-70-15A30
PLATE (WELDED)
|$7
202-70-61XA0
BRACKET (WELDED)
3
BRACKET (WELDED)
4
203-46-41130
SEAT (WELDED)
5
203-70-66110
BUSHING
6
07145-00070
SEAL,DUST
7
07145-00070
SEAL,DUST
8
201-06-71280
WORK LAMP ASS'Y
8
20Y-06-21480
WORK LAMP ASS'Y
9
203-06-56410
BRACKET
9A
01010-81225
BOLT
9B
01643-31232
WASHER
10
202-70-61210
PIN
11
21W-70-11310
PLATE
12
01010-81230
BOLT
13
01643-31232
WASHER
14
20U-70-31340
SPACER, 1.0MM
14
203-70-11210
SPACER, 1.0MM
14
20U-70-31330
SPACER, 0.5MM
14
203-70-34270
SPACER, 0.5MM
15
202-70-61180
PIN
16
01019-11640
BOLT
17
01580-11613
NUT
18
21Y-70-14830
SPACER, 1.0MM
18
203-70-41460
SPACER, 1.0MM
19
21K-70-11410
PLATE
20
203-70-61320
PIN
21
21W-70-11310
PLATE
22
01010-81230
BOLT
23
01643-31232
WASHER
24
21Y-70-14830
SPACER, 1.0MM
24
203-70-41460
SPACER, 1.0MM
25
21Y-63-X2900
CYLINDER GROUP,L.H. (SEE FIG.Y1620-01A0)
25
21Y-63-X2910
CYLINDER GROUP,R.H. (SEE FIG.Y1620-01A0)
Выбрано товаров: 36
