Запчасти Komatsu PC1250SP-8R ОСНОВН. НАСОС (/)(NO. НАСОС) Y

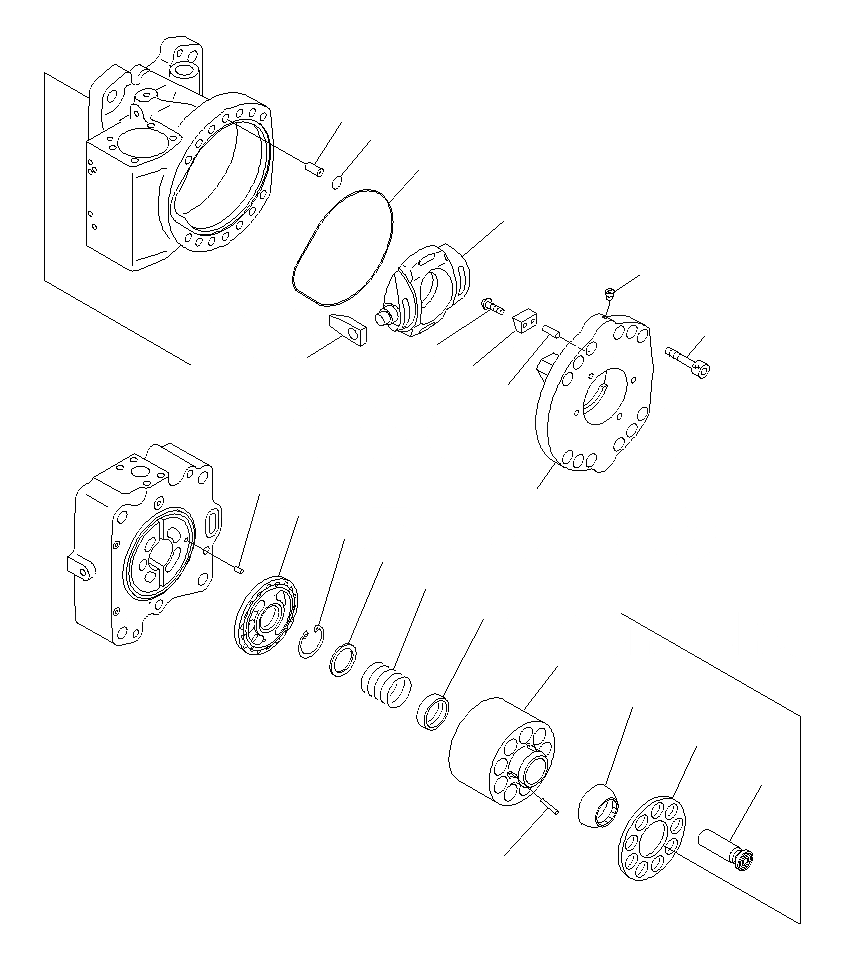

Схема запчастей Komatsu PC1250SP-8R - ОСНОВН. НАСОС (/)(NO. НАСОС) Y
16
17
18
14
13
19
21
15
12
1
11
10
22
20
3
2
4
7
6
5
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

708-2L-00691

PUMP ASS'Y

|$2

708-2L-00690

PUMP ASS'Y

|$3

THIS ASSEMBLY CONSISTS OF ALL PARTS

|$4

SHOWN IN FIGS.Y1600-21A0 TO Y1600-31A0.

|$5

708-2L-01690

PUMP SUB ASS'Y

|$6

708-2L-04141

BLOCK ASS'Y,FRONT

1

BLOCK,CYLINDER

2

PLATE,VALVE(F)

3

720-68-19610

PIN

4

04065-04818

RING,SNAP

5

708-2L-23131

SEAT

6

708-2L-33160

SPRING

7

708-7L-13140

SEAT

8

708-2L-23351

GUIDE,RETAINER

9

708-2L-23360

PIN

10

708-2L-33340

RETAINER,SHOE

11

708-2L-33310

PISTON SUB ASS'Y

|$18

708-2L-06930

CRADLE ASS'Y,REAR

|$19

708-2L-06940

CRADLE SUB ASSY,REAR

12

CRADLE(REAR)

13

PLUG

14

ROCKER CAM

15

708-2L-23730

SLIDER

16

708-25-12330

JOINT

17

07000-B2015

O-RING

18

708-25-62361

O-RING

19

01252-61230

BOLT

20

708-2L-23790

STOPPER

21

04020-00616

PIN

22

706-75-42270

SCREW
