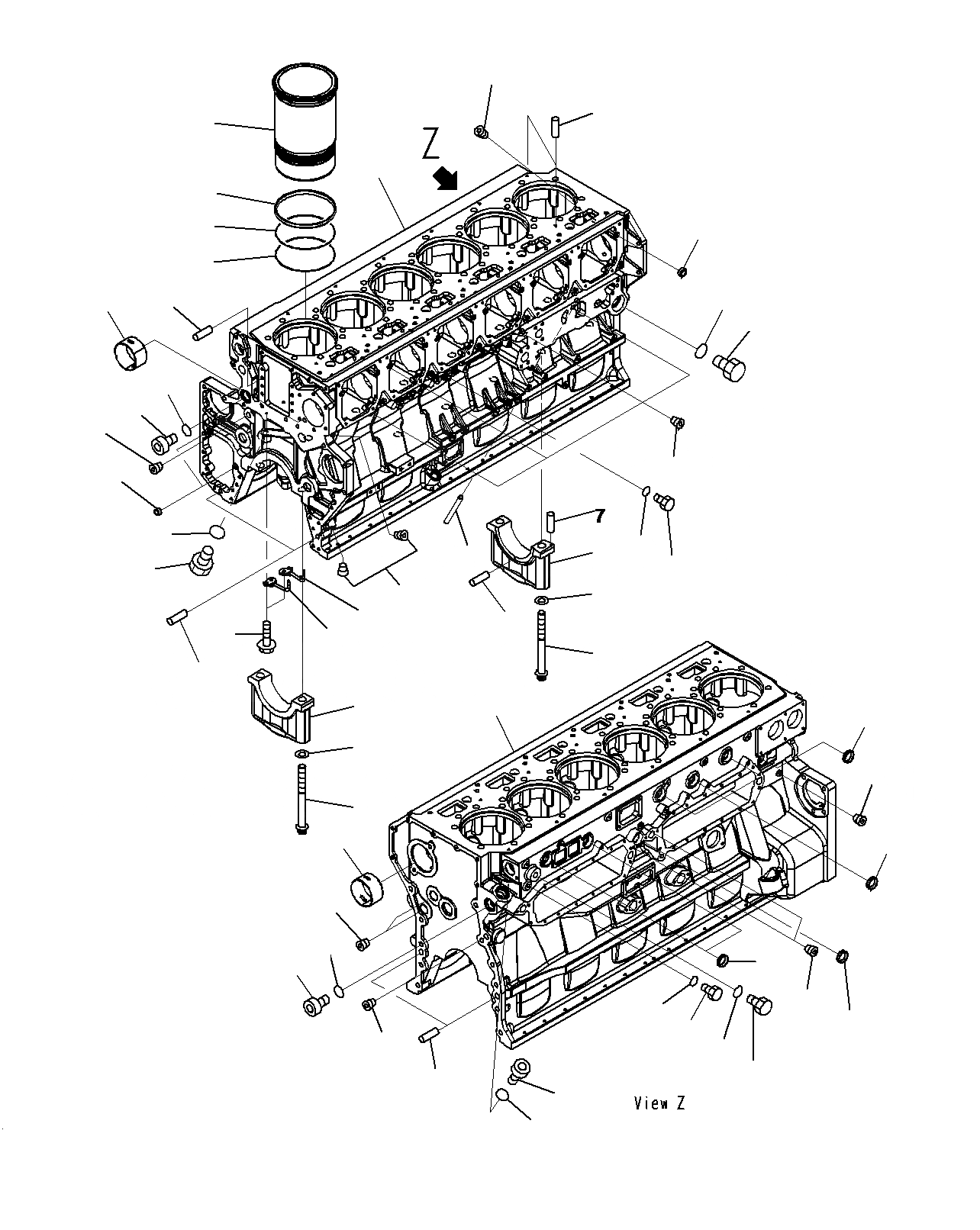

Запчасти Komatsu PC1250SP-8R БЛОК ЦИЛИНДРОВ (9-999) A

|$1

6245-21-1100

CYLINDER BLOCK ASS'Y

1

BLOCK, CYLINDER

2

6240-29-1250

CAP,MAIN METAL, NO.6

3

6240-29-1210

CAP,MAIN METAL, NO.1,2,3,4,5,

4

6215-21-1710

BOLT,MAIN CAP

5

01643-32460

WASHER

6

6162-23-1140

TUBE,OIL TRANSFER

7

04020-00514

PIN

8

6245-21-1482

BUSHING

9

6162-23-1260

PIN,DOWEL

10

07040-14220

PLUG

11

07002-34234

O-RING

12

07040-13316

PLUG

13

07002-33334

O-RING

14

07043-71019

PLUG

15

07043-70211

PLUG

16

07043-70415

PLUG

17

07043-70108

PLUG

18

07043-00108

PLUG

19

07040-12012

PLUG

20

07002-62034

O-RING

21

07040-11409

PLUG

22

07005-01412

GASKET

23

07046-44016

PLUG

24

04020-00820

PIN,DOWEL

25

04020-01434

PIN,DOWEL

26

6127-21-1160

PIN,DOWEL

27

6150-41-2430

PIN

28

6162-43-2430

RING,DOWEL

29

07040-11409

PLUG

30

07002-31423

O-RING

31

04020-01228

PIN,DOWEL

32

6240-21-2220

LINER,CYLINDER

33

6162-23-2250

SEAL,CREVICE

34

6162-23-2240

O-RING,LOWER

35

6162-23-2220

O-RING,CENTER

36

6240-21-1810

NOZZLE,PISTON COOLING, FRONT

37

6245-21-1910

NOZZLE,PISTON COOLING, REAR

38

01435-00816

BOLT
