Запчасти Komatsu PC1250SP-8R ЦИЛИНДР РУКОЯТИ(№-) ЦИЛИНДР РУКОЯТИ

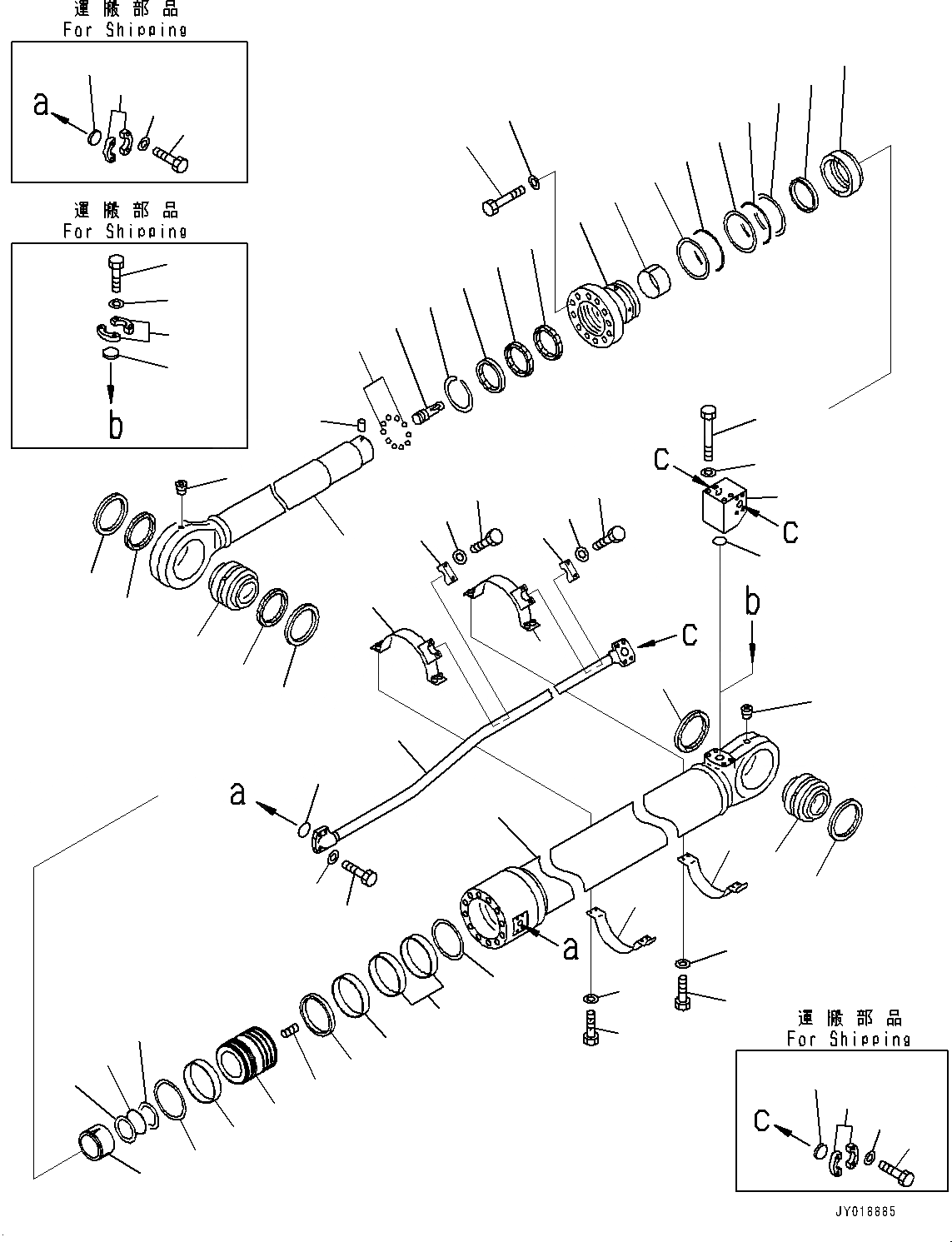

Схема запчастей Komatsu PC1250SP-8R - ЦИЛИНДР РУКОЯТИ(№-) ЦИЛИНДР РУКОЯТИ
8
48
7
8
7
47
47
48
49
13
18
22
21
19
20
15
16
33
32
33
17
9
2
6
50
51
51
50
45
45
3
46
46
1
54
53
52
43
49
26
27
5
30
14
29
29
28
31
13
24
25
10
11
12
23
30
4
4
30
34
37
38
35
36
60
53
58
59
39
42
41
40
44
55
56
57

Артикул

Название

Примечание

Количество

|$0

707-01-0CA40

Cylinder Assembly

1

707-13-25210

Cylinder

2

707-58-17050

Rod, Piston

3

707-76-16030

Bushing

4

707-77-16020

Seal, Dust, (Kit : K08)

5

07043-00108

Plug, Taper

6

707-46-16030

Bushing

7

707-46-16040

Bushing

8

707-77-16010

Seal, Dust, (Kit : K08)

9

07043-00108

Plug, Taper

10

707-71-31830

Collar

11

707-71-11850

Ring, Cushion

12

07000-15250

O-ring, (Kit : K08)

13

07001-05250

Ring, Back-up, (Kit : K08)

14

707-71-61800

Plunger

15

707-71-50400

Plunger

16

04260-01270

Ball

17

707-71-91380

Pin

18

707-28-25840

Head, Cylinder

19

707-56-17740

Seal, Dust, (Kit : K08)

20

07179-15190

Ring, Snap

21

707-51-17030

Packing, Rod, (Kit : K08)

22

707-51-17640

Ring, Buffer, (Kit : K08)

23

707-52-91451

Bushing

24

07000-15250

O-ring, (Kit : K08)

25

707-35-92600

Ring, Back-up, (Kit : K08)

26

01011-83330

Bolt

27

01643-33380

Washer

28

707-36-25230

Piston

29

707-44-25910

Ring

30

707-39-25011

Ring, Wear, (Kit : K08)

31

707-44-25180

Ring, Piston, (Kit : K08)

32

07000-15160

O-ring, (Kit : K08)

33

07001-05160

Ring, Back-up, (Kit : K08)

34

01310-01240

Screw

35

07371-51470

Flange, Split

36

707-88-33060

Cap

37

01010-81455

Bolt

38

01643-31445

Washer, Flat

39

07371-52080

Flange, Split

40

707-88-33070

Cap

41

01010-81865

Bolt

42

01643-31845

Washer

43

21N-63-62371

Tube

44

21N-62-18450

Block

45

21N-62-18430

Band

46

21N-63-62390

Bracket

47

176-61-41330

Clamp

48

01010-81250

Bolt

49

01643-31232

Washer

50

01010-81240

Bolt

51

01643-31232

Washer

52

01010-81450

Bolt

53

01643-31445

Washer, Flat

54

07000-13048

O-ring, (Kit : K08)

55

07000-12060

O-ring, (Kit : K08)

56

01011-81890

Bolt

57

01643-31845

Washer

58

07371-51470

Flange, Split

59

707-88-33060

Cap

60

01010-81455

Bolt

Выбрано товаров: 61
