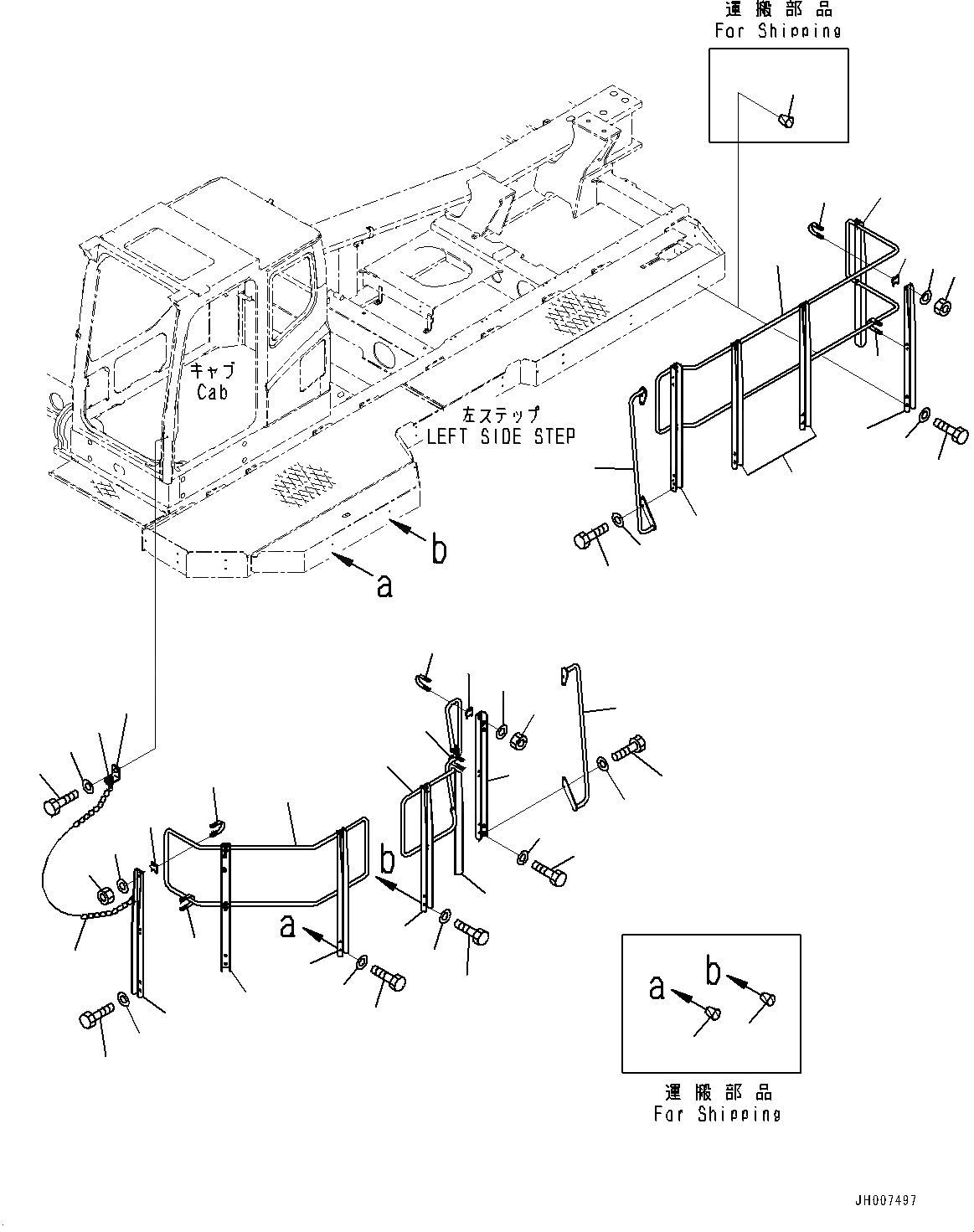

Запчасти Komatsu PC1250SP-8R ЛЕВ. СТУПЕНИ, ПОРУЧНИ(№8-) ЛЕВ. СТУПЕНИ

1

21N-53-32151

Handrail

2

21N-53-31952

Bracket

3

21N-53-32142

Bracket

4

07283-32738

Clip, Pipe

5

07283-52737

Seat

6

01597-01009

Nut

7

01643-71032

Washer

8

21N-53-32160

Handrail

9

01010-81230

Bolt

10

01643-31232

Washer

11

01010-81645

Bolt

12

01643-31645

Washer

13

21N-53-31931

Handrail

14

21N-53-31952

Bracket

15

21N-53-31972

Bracket

16

07283-32738

Clip, Pipe

17

07283-52737

Seat

18

01597-01009

Nut

19

01643-71032

Washer

20

21N-53-31940

Handrail

21

01010-81230

Bolt

22

01643-31232

Washer

23

01010-81645

Bolt

24

01643-31645

Washer

25

21N-53-31922

Handrail

26

21N-53-31952

Bracket

27

21N-53-31962

Bracket

28

21N-53-32412

Bracket

29

07283-32738

Clip, Pipe

30

07283-52737

Seat

31

01597-01009

Nut

32

01643-71032

Washer

33

01010-81645

Bolt

34

01643-31645

Washer

35

21N-53-32420

Bracket

36

08037-01610

Grommet

37

01010-D1225

Bolt

38

01643-71232

Washer

39

8285-54-1570

Chain

40

07049-01215

Plug
