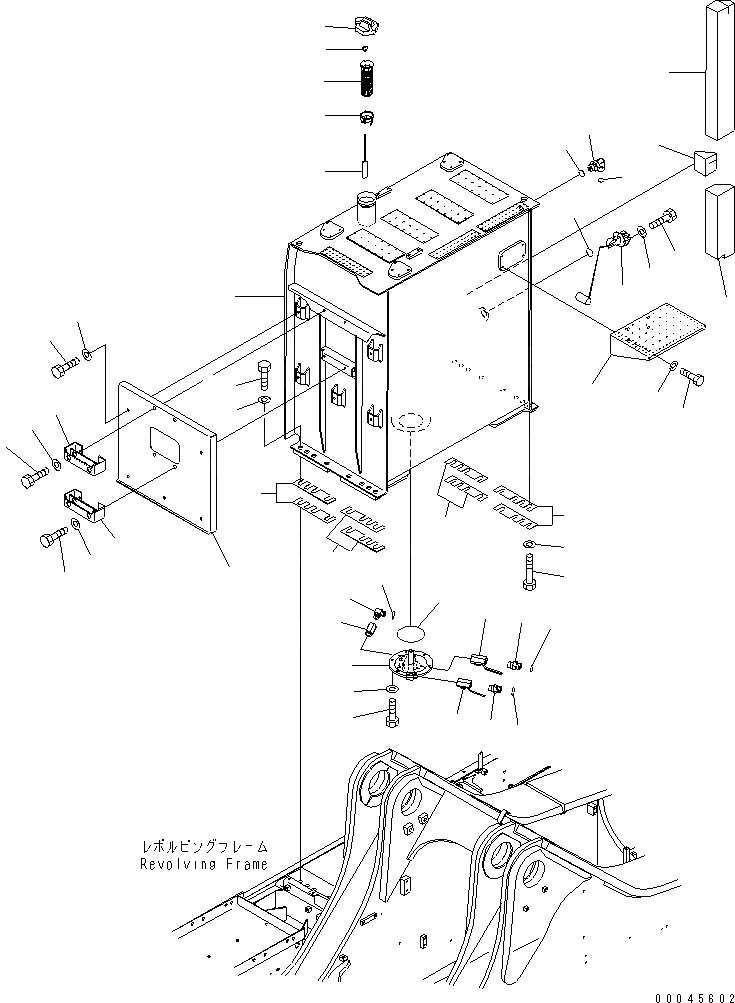

Запчасти Komatsu PC1250SP-8R ТОПЛИВН. БАК.(№-) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

21N-04-41111

TANK

|$5

22U-04-21241

STRAINER ASS'Y

|$6

22U-04-21200

FLOAT ASS'Y

2

22U-04-21210

GUIDE

3

20Y-04-21580

CAP

4

22U-04-21220

FLOAT

5

07056-18425

STRAINER

6

07091-21200

CAP

7

21N-04-41211

FLANGE

8

01010-81235

BOLT

9

01643-31232

WASHER

10

07000-15200

O-RING

11

7861-93-5810

SENSOR

12

07000-13050

O-RING

13

01010-80612

BOLT

14

01643-30623

WASHER

15

209-04-42150

UNION

16

02896-11015

O-RING

17

21N-04-41232

UNION

18

02896-11018

O-RING

19

07700-40460

VALVE

20

07700-40661

VALVE

21

21N-64-36520

ELBOW

22

02896-11012

O-RING

23

21N-54-41191

COVER

24

01010-81230

BOLT

25

175-54-34170

WASHER

26

21N-54-42551

BRACKET

27

01010-81225

BOLT

28

175-54-34170

WASHER

29

21N-54-39990

STEP

30

01010-81230

BOLT

31

01643-31232

WASHER

32

02782-10422

ELBOW

33

07002-12034

O-RING

34

02896-11012

O-RING

35

21N-04-41410

BOLT

36

01643-32460

WASHER

37

21N-04-41290

PLATE

38

01011-82015

BOLT

39

01643-32060

WASHER

40

21N-04-41241

PLATE

41

21N-04-41261

SHEET

42

21N-04-41271

SHEET

43

21N-04-41281

SHEET
