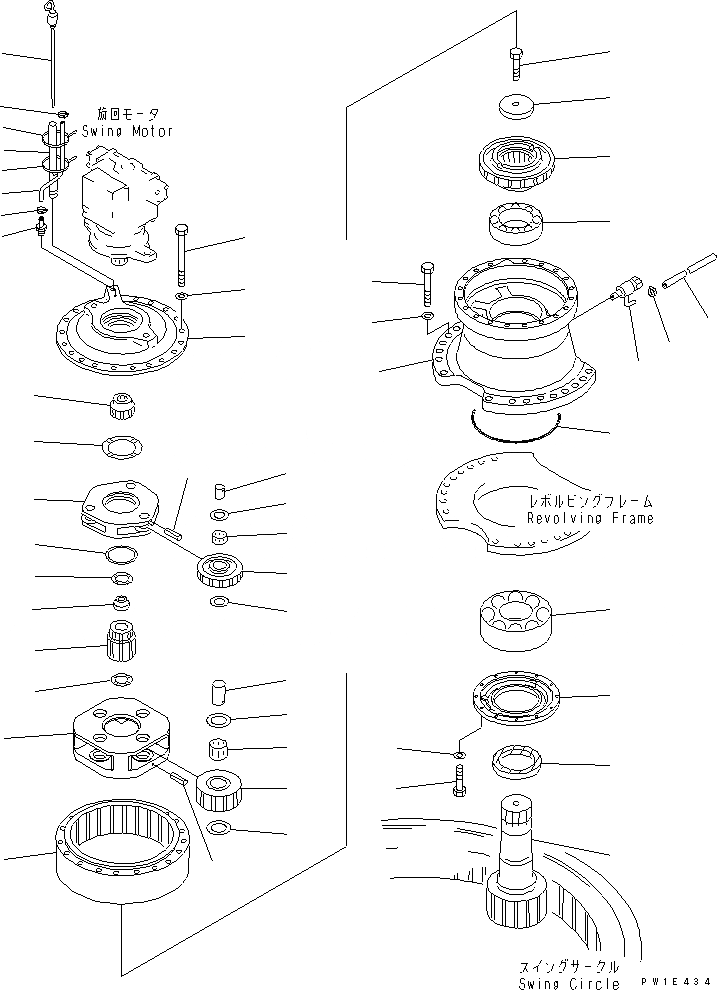

Запчасти Komatsu PC1250SE-7 МЕХАНИЗМ ПОВОРОТА (ЗАДН.) ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

|1*

X21-0860310

SWING MACHINERY

1

208-26-63170

CASE

2

06000-23124

BEARING

3

21N-26-31140

BEARING

4

208-26-52263

COVER

5

01010-81040

BOLT

6

01643-31032

WASHER

7

208-26-61291

OIL SEAL

8

21N-26-31110

SHAFT¤ 13 TEETH

9

208-26-61151

COUPLING

10

208-26-52230

PLATE

11

205-32-51211

BOLT

12

207-27-63170

CARRIER

13

208-26-63140

GEAR

14

207-27-63210

BEARING

15

20Y-27-21250

WASHER

16

207-27-63230

PIN

17

20Y-26-21330

PIN

18

207-27-63150

GEAR

19

207-27-63250

WASHER

20

208-26-63131

GEAR

|20

208-26-63130

GEAR

21

20Y-27-13310

WASHER

22

207-26-61180

GUIDE

23

208-26-63150

CARRIER

24

208-26-63120

GEAR

25

20Y-27-22210

BEARING

26

20Y-27-21240

WASHER

27

20Y-27-21220

PIN

28

20Y-27-21280

PIN

29

208-26-63110

GEAR

30

20Y-27-11250

SPACER

31

208-26-63161

COVER

32

01011-61880

BOLT

33

01643-31845

WASHER

34

07730-40004

VALVE

35

07270-21590

TUBE

36

07281-00197

CLAMP

37

07000-15335

O-RING

38

21N-26-31120

GAUGE

39

209-26-72220

FILLER

40

07286-01070

HOSE

41

07281-00167

CLAMP

42

6138-55-7610

NIPPLE

43

08034-40521

BAND

44

01010-82485

BOLT

45

01643-32460

WASHER
