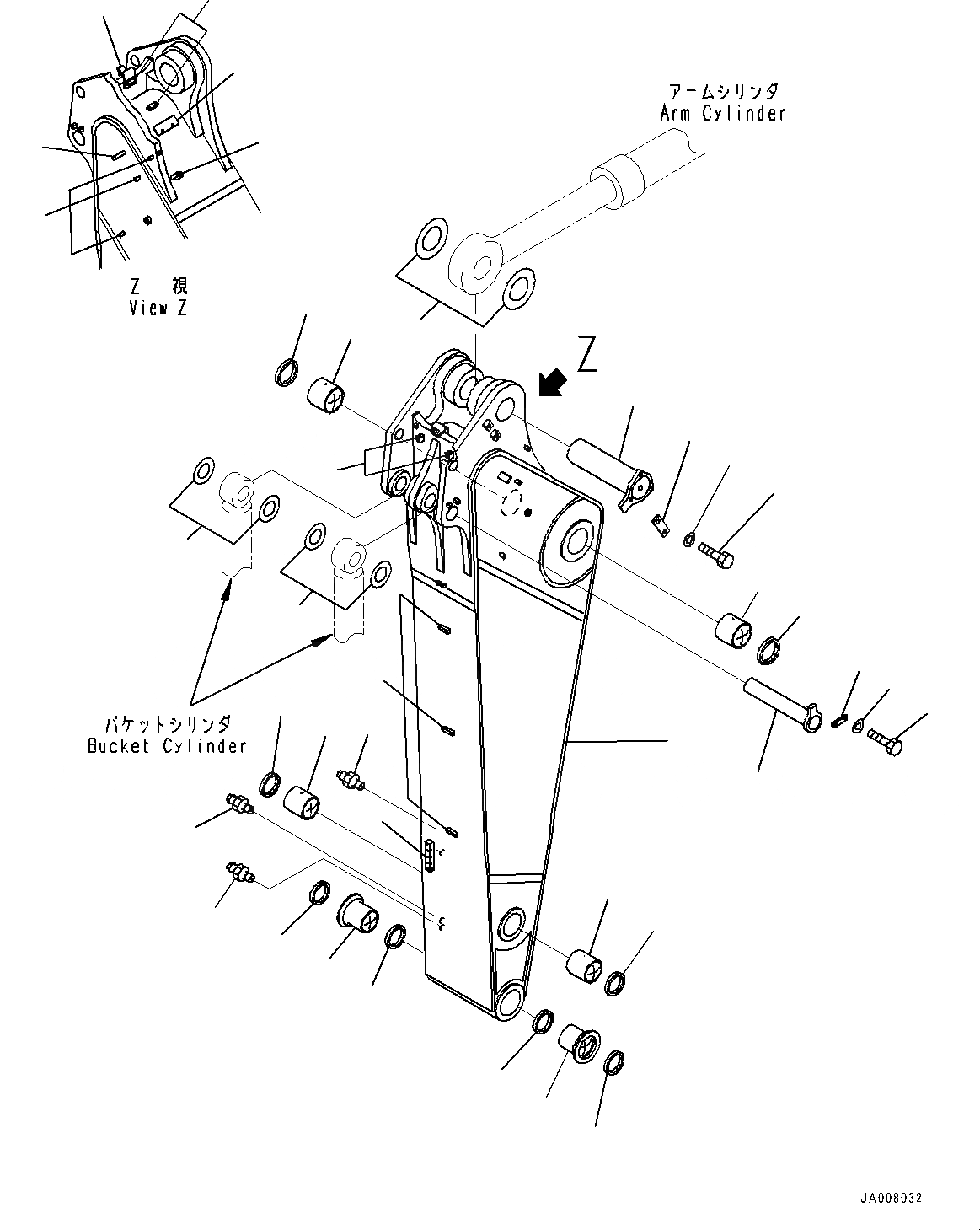

Запчасти Komatsu PC1250-8R РУКОЯТЬ, MM, АВТОМАТИЧ.-СИСТ. СМАЗКИ СИСТЕМА, РУКОЯТЬ И ПАЛЕЦ (№-) РУКОЯТЬ, MM, АВТОМАТИЧ.-СИСТ. СМАЗКИ СИСТЕМА

|$0

21N-70-00252

Arm Assembly

1

Arm

2

21N-68-32630

Seat,Welded

3

21N-68-32650

Seat,Welded

4

21N-70-32160

Block,Welded

5

21N-70-35250

Seat,Welded

6

21N-70-35260

Bracket,Welded

7

175-21-41130

Seat,Welded

8

176-06-41490

Seat,Welded

9

209-70-57170

Seat,Welded

10

21N-70-32150

Bushing

11

07020-00000

Fitting, Grease

12

21N-70-12170

Bushing

13

07020-00000

Fitting, Grease

14

21N-70-11181

Bushing

15

209-72-11261

Seal

16

21N-70-12160

Seal

17

209-72-11261

Seal

18

209-72-11311

Seal

19

21N-70-11210

Plate

20

01010-82455

Bolt

21

01643-32460

Washer

22

21N-70-31170

Pin

23

21N-72-11210

Shim, T=1.0mm

24

21N-70-32140

Pin

25

207-70-11340

Spacer, T=0.8mm

26

21N-70-11230

Plate

27

01010-81640

Bolt

28

01643-31645

Washer
